Born to race, no discussion.
Born to race, no discussion.
Pinarello

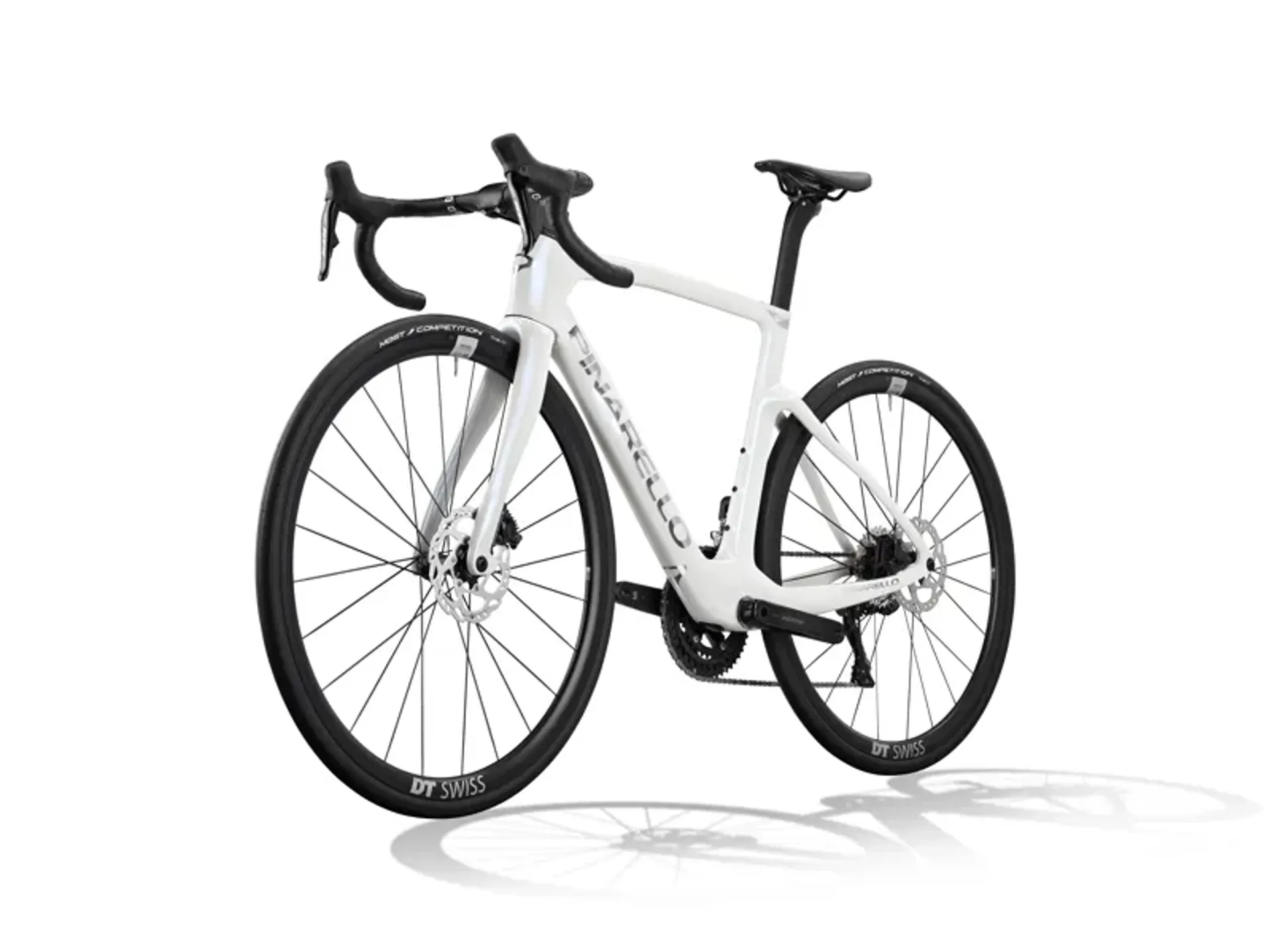

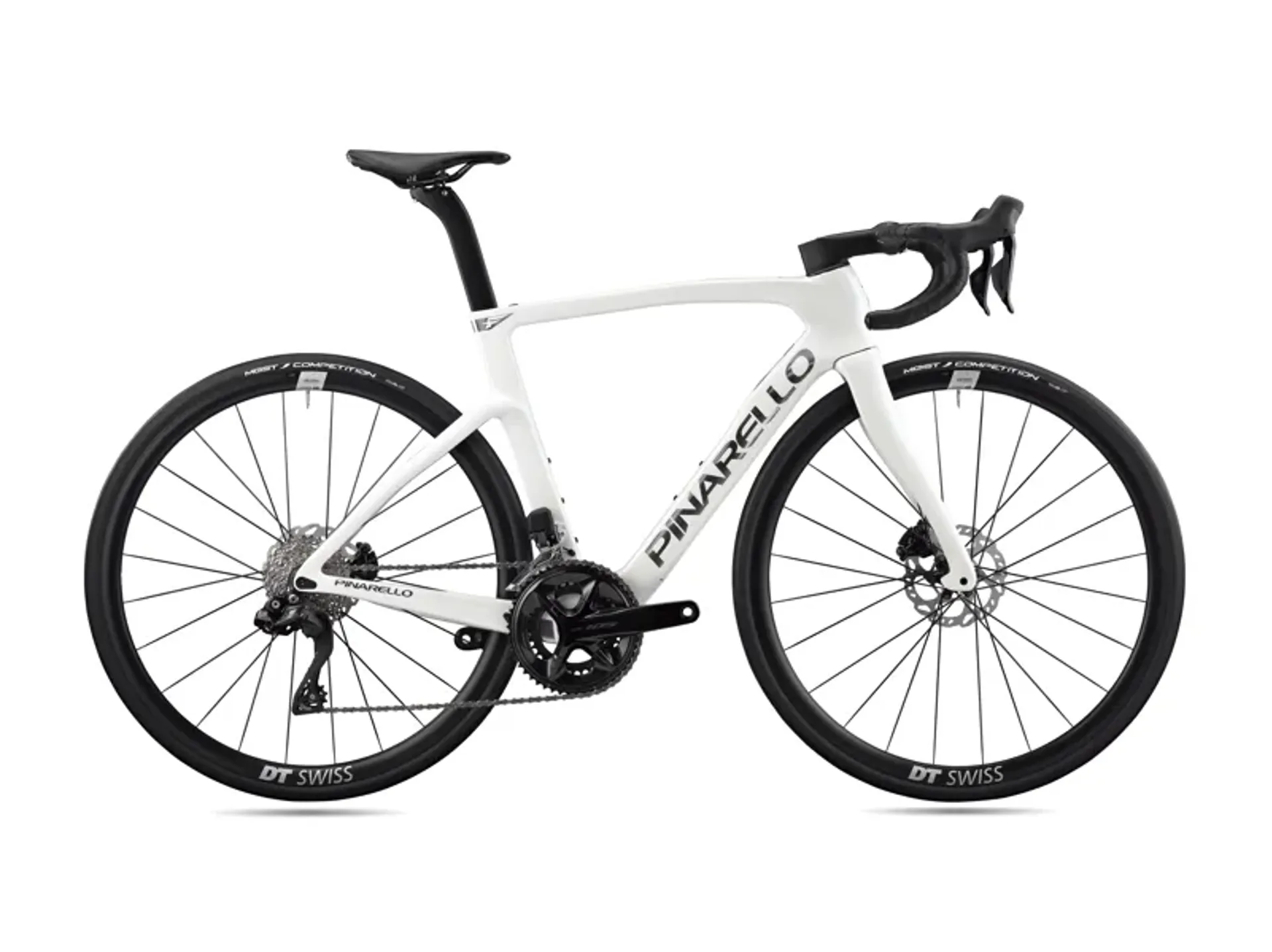

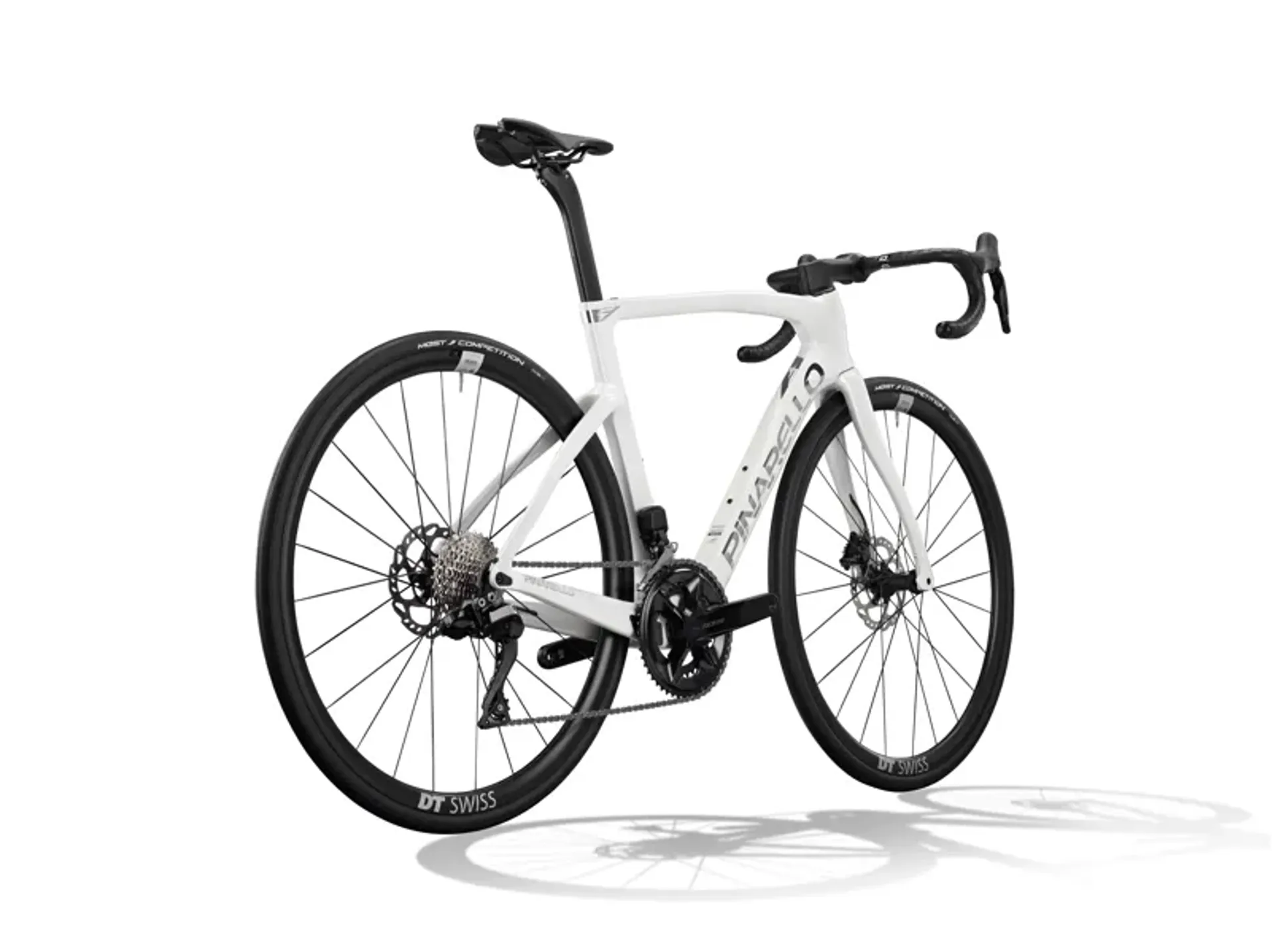

Pinarello F3 105 Di2 H231 Competition Road Bike in Alabaster White Shiny

£4,000.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Pinarello F3 105 Di2 H231 Competition Road Bike in Alabaster White Shiny

Brand:Pinarello

Code:C2117157206ABS

Born to race, no discussion.

Pinarello's history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what they mean by ALL-ROUND PERFORMANCE.

Features:

  • Tyre Clearance up to 32mm
    32mm tires to unlock the frames’ true potential in terms of both comfort and speed.
  • Down Tube
    New DOWNTUBE shape, reduced thickness for improve aero performance.
  • E-TICR Headset
    To reduce the width of the headtube, we designed an innovative elliptical steering tube and completely new headset using bearings of a different diameter, wider on the bottom and narrower at the top. We also moved the internal cable routing from the sides to the front of the steering tube.
  • Onda Fork
    The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on descents.
  • Head Tube
    New Aero headtube, with increased surface and softer lines to improve aerodynamics and stiffness.
  • Aero Keel
    New Aero KEEL BB, reduced volume compared with Dogma F, improved stiffness, cleaner look.
  • Integrated Seatclamp
    Frontal integrated seat clamp, for a cleaner look and protection from sweat and dust.



Technical Information
  • Frame
    Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
  • Crankset and chainrings
    Shimano 105 Di2 12S
  • Front derailleur
    Shimano 105 Di2 12S
  • Cassette
    Shimano 105 Di2 12S
  • Bottom bracket
    Shimano 105 Di2 12S
  • Front brake disc
    Shimano 105 2 pistons, 160mm rotor
  • Rear brake disc
    Shimano 105 2 pistons, 160mm rotor
  • Handlebar
    JAGUAR CLAW ULTRA ALU
  • Stem
    CLAW ULTRA AERO ALU
  • Bar tape
    most bar tape
  • Saddle
    Most Lynx My26
  • Seatpost
    fsc frontal seat clamp
  • Tyres disc
    MOST 30
  • Wheelset disc
    DT SWISS A1800 30DB
  • Axles disc
    New MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
Sizing Information

The choice of an exact frame size is a very complex and delicate topic which is not always straightforward without seeing an athlete on his/her bike. In addition to this, Pinarello offers a wide range of frame options and components that offer both very accurate position options but also require in-depth evaluations.

In addition to this, as more and more bikes are beginning to be fitted with an integrated handlebar and stem setup it is even more important to discuss sizing with us. Getting this measurement wrong can result in an incorrect position on the bike and an incur an expensive cost when having to replace the handlebar / stem combo for a correctly sized version.

If you have any questions specific to sizing, call our Cramlington store and speak with our bike fitter who will be able to help with an initial sizing before purchasing your bike. Once purchased we are happy to supply a full bike fit when you collect your new Pinarello from in store.

Get in touch with one of our stores (Newcastle - 0191 276 0941 or Cramlington - 01670 712 536) to find out how we can help.

Frame Geometry


430

465

500

515

530

545

560

575

595

ASeat Tube Length (mm)

430

465

500

515

530

545

560

575

595

BSeat Tube Angle74.4°74.4°74°73.7°73.773.4°73°73°72.4°
CTop Tube Length (mm)500515525535545555565578600
DHead Tube Length (mm)97104109114123138149.5178220
EHead Tube Angle69.5°70.5°71.4°72°72.5°72.8°73.2°73.7°73.4°
FFork Rake (mm)434343434343434343
GTrail (mm)
HWheel Base (mm)
IChain Stay Length (mm)406406408408408410410410410
JBottom Bracket Drop (mm)677272727272727267
KStack (mm)502.5517.7525.5532.3542.6557.9570.3599.3633.5
LReach (mm)351.3365.2372.1378.1385.6388.3390.8395.4400.3
MStand Over Height (mm)
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size700c700c700c700c700c700c700c700c700c
Professional Opinion
  • Tyre Clearance
    32mm tires to unlock the frames’ true potential in terms of both comfort and speed.
  • Down Tube
    New DOWNTUBE shape, reduced thickness for improve aero performance
  • E-TICR Headset
    To reduce the width of the headtube, we designed an innovative elliptical steering tube and completely new headset using bearings of a different diameter, wider on the bottom and narrower at the top.
  • Onda Fork
    The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on descents.
  • Head Tube
    New Aero headtube, with increased surface and softer lines to improve aerodynamics and stiffness.
  • Aero KEEL BB
    New Aero KEEL BB, reduced volume compared with Dogma F, improved stiffness, cleaner look.
  • Integrated Seat Clamp
    Frontal integrated seat clamp, for a cleaner look and protection from sweat and dust.
