Liv Avail AR 3 (2026): confident endurance road bike with 2×9 gearing, mechanical disc brakes & 38c tyre clearance — rugged enough for rough roads, smooth enough for long road rides.
Liv Avail AR 3 (2026): confident endurance road bike with 2×9 gearing, mechanical disc brakes & 38c tyre clearance — rugged enough for rough roads, smooth enough for long road rides.
Liv

2026 Liv Avail AR 3 - Female specific All-Road bike - Lunar Eclipse

£1,199.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

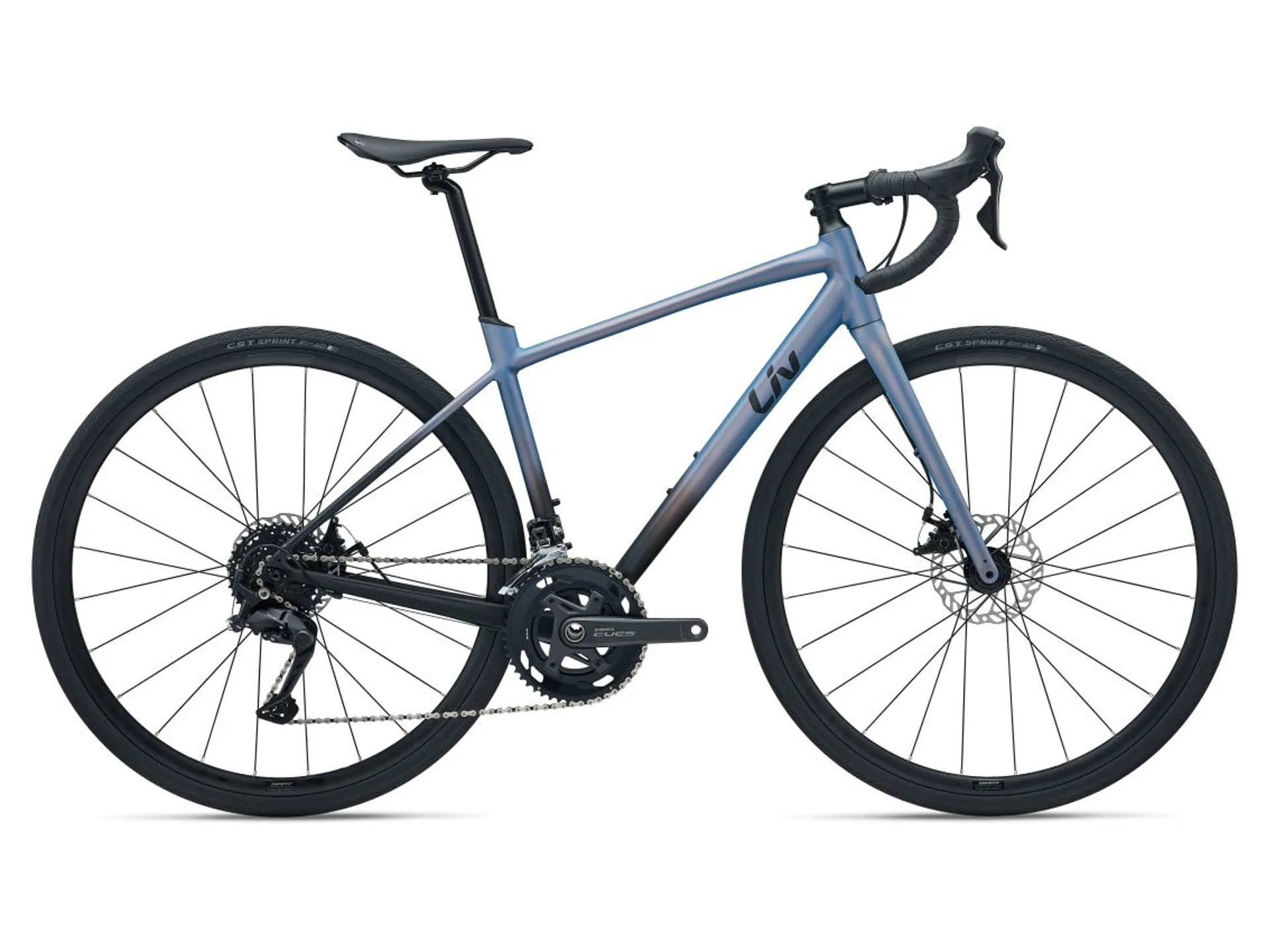

2026 Liv Avail AR 3 - Female specific All-Road bike - Lunar Eclipse

Season:2026

Brand:Liv

Code:9017036

The Liv Avail AR 3 (2026) offers many of the endurance benefits of the Liv Avail AR line but with a more accessible spec, tailored for riders who want reliability, comfort, and value. It shares the ALUXX aluminium frame, Advanced-grade composite fork, OverDrive steerer, and the same 38c tyre clearance potential that allows you to stray from smooth roads confidently. While its drivetrain and braking may be simpler, the ride feel remains stable, comfortable, and forgiving thanks to features like the D-Fuse seatpost and women-specific endurance geometry.

This model is especially smart for riders who plan long rides, occasional gravel, or want a dependable bike for commuting that won’t shy away from poor road surfaces. With attention to ride comfort, good fit, and the essential performance where it counts, the Avail AR 3 delivers a capable platform that stretches your riding possibilities without overreaching your budget.

Key Features & Specs

  • Frame: ALUXX-grade aluminium, 12×142 mm thru-axle, disc brake compatible.

  • Fork: Advanced-grade composite, OverDrive steerer, 12×100 mm front thru-axle.

  • Tyre Clearance: Runs ~32c spec tyres; clearance for up to ~38c.

  • Drivetrain: Shimano CUES 2×9 in many markets; simpler gearing but adequate for mixed-surface use.

  • Brakes: Mechanical disc brakes (Tektro MD-C550 or similar) in many versions; effective though not as premium as hydraulic on higher AR models.

  • Comfort features: D-Fuse seatpost, Liv Connect handlebars, endurance geometry designed for longer rides & reduced fatigue.

Technical Information
  • Frame
  • Sizes
    X-Small, Small, Medium, Large
  • Colours
    Lunar Eclipse
  • Frame
    ALUXX-grade aluminum, 12x142mm thru-axle, disc
  • Forks and Shocks
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Connectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    Shimano CUES U3030 levers / Tektro MD-C550 mechanical, Giant MPH rotors, [F]160mm, [R]160mm
  • Rear Derailleur
    Shimano CUES U4020
  • Front Derailleur
    Shimano CUES U3030F
  • Shifters
    Shimano CUES U3030
  • Bottom Bracket
    Shimano BB-RS501
  • Crankset
    Shimano FC-U6030-2, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
  • Cassette
    Shimano CS-LG300, 9-speed, 11x36
  • Chain
    KMC X
  • Cockpit
  • Handlebar
    Liv Connect, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm
  • Stem
    Giant Sport, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
  • Grips
    Liv All Condition
  • Headset
  • Wheels
  • Front Hub
    Giant alloy, 12mm thru-axle
  • Rear Hub
    Giant alloy, 12mm thru-axle
  • Rims
    Giant S-R2 Disc
  • Front Tyre
    CST Sprint, 700x33c
  • Rear Tyre
    CST Sprint, 700x33c
  • Max Tyre Clearance
    38mm
  • Finishing Kit
  • Seatpost
    Giant D-Fuse, alloy, XXS: 300mm, XS: 300mm, S: 300mm, M: 350mm, L: 350mm
  • Saddle
    Liv Approach
  • Pedals
    Not supplied: Shop pedals here
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Extras
    Tubeless prepared
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
XS153 - 162
S158 - 169
M165 - 174
L171 - 182

Frame Geometry


XSSM
L
ASeat Tube Length (mm)430465500535
BSeat Tube Angle75.0°74.5°74.0°74.0°
CTop Tube Length (mm)515525540555
DHead Tube Length (mm)135150170190
EHead Tube Angle70.5°72.0°72.0°72.0°
FFork Rake (mm)45454545
GTrail (mm)7363.563.563.5
HWheel Base (mm)99899010001016
IChain Stay Length (mm)420420420420
JBottom Bracket Drop (mm)70707070
KStack (mm)530550569588
LReach (mm)372372377386
MStand Over Height (mm)687716744772
NHandlebar Width (mm)380400400420
OStem Length (mm)70809090
PCrank Length (mm)165170170172.5
QWheel Size700c700c700c
700c
Professional Opinion
  • ALUXX Aluminium
    This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
  • Compact Road
    When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
  • D-Fuse Technology
    The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster
  • OverDrive
    Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
