The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
Sizes
Small, Medium, Large, X-Large
Colours
Sea Sparkle
Frame
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork
Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Kabolt-X 110

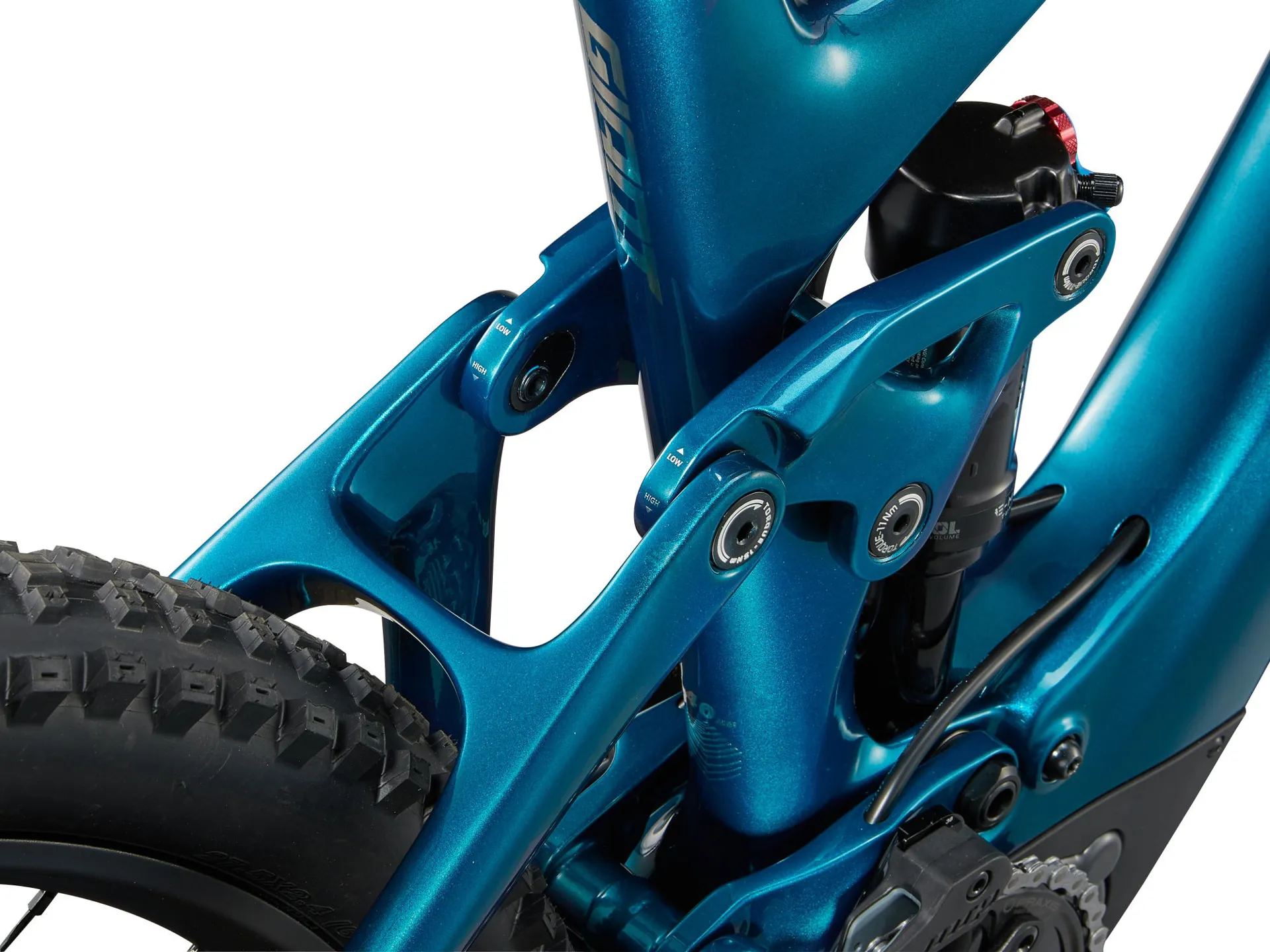

Rear Shock
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned

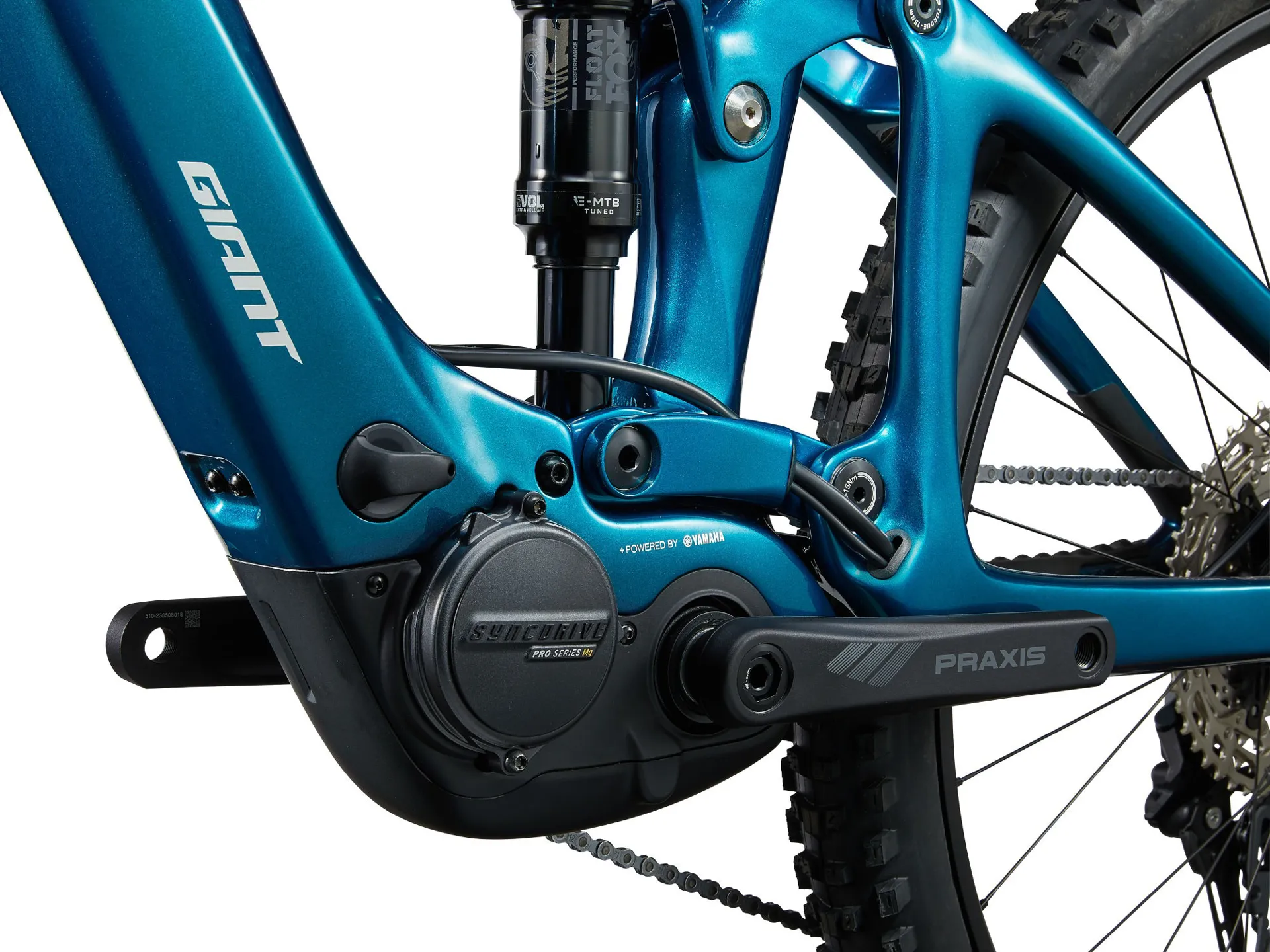

Motor
Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology

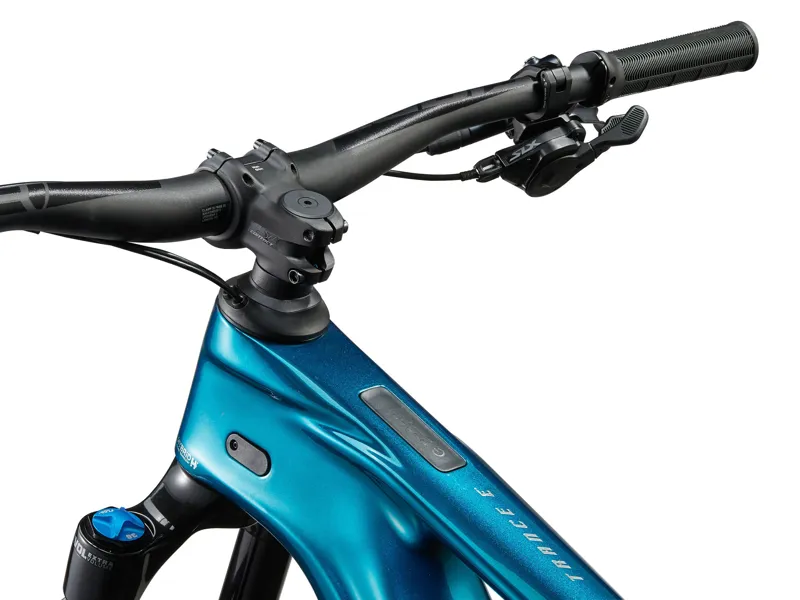

Controller
Giant RideControl Ergo3, grip integrated remote
Display
Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
Battery Type
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Battery Integration
Internal / Not Removable
Connectivity
N/A
Charger
Giant EnergyPak 4A smart charger, 60% in 1:45
Brake System
Shimano SLX, I-spec EV Levers / Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm [F/R]
Rear Derailleur
Shimano SLX
Front Derailleur
N/A
Shifters
Shimano SLX 1x12
Bottom Bracket
Integrated into motor
Crankset
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170)
Cassette
Shimano, CS-M6100, 10-51T, 12-speed
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimised
Handlebar
Giant Contact SL 35 Trail, 35x780mm
Stem
Giant Contact SL 35
Grips
Headset
Front Hub
E-TRA MTB Alloy Hub, 6 Bolt, 110x15
Rear Hub
E-TRA MTB Alloy Hub, 6 Bolt, 148x12 Shimano Micro-Spline Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle
Rims
E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R] 30mm inner width
Front Tyre
Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO
Rear Tyre
Maxxis Dissector 27.5x2.4"" Foldable, TLR, EXO
Max Tyre Clearance
N/A
Seatpost
Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
Saddle
Giant Romero, Neutral
Pedals
Kickstand
N/A
Lighting
N/A
Lock
N/A
Carrier
N/A
Mudguards
N/A
Extras
MRP HD2 co-moulded chain guide, Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
