Feel the rish on the Liv Embolden E+. A full suspension electric mountain bike designed to help you shred demanding trails, breeze the climbs and conquer obstacles with confidence. Nothing is off limits.
Feel the rish on the Liv Embolden E+. A full suspension electric mountain bike designed to help you shred demanding trails, breeze the climbs and conquer obstacles with confidence. Nothing is off limits.
Liv

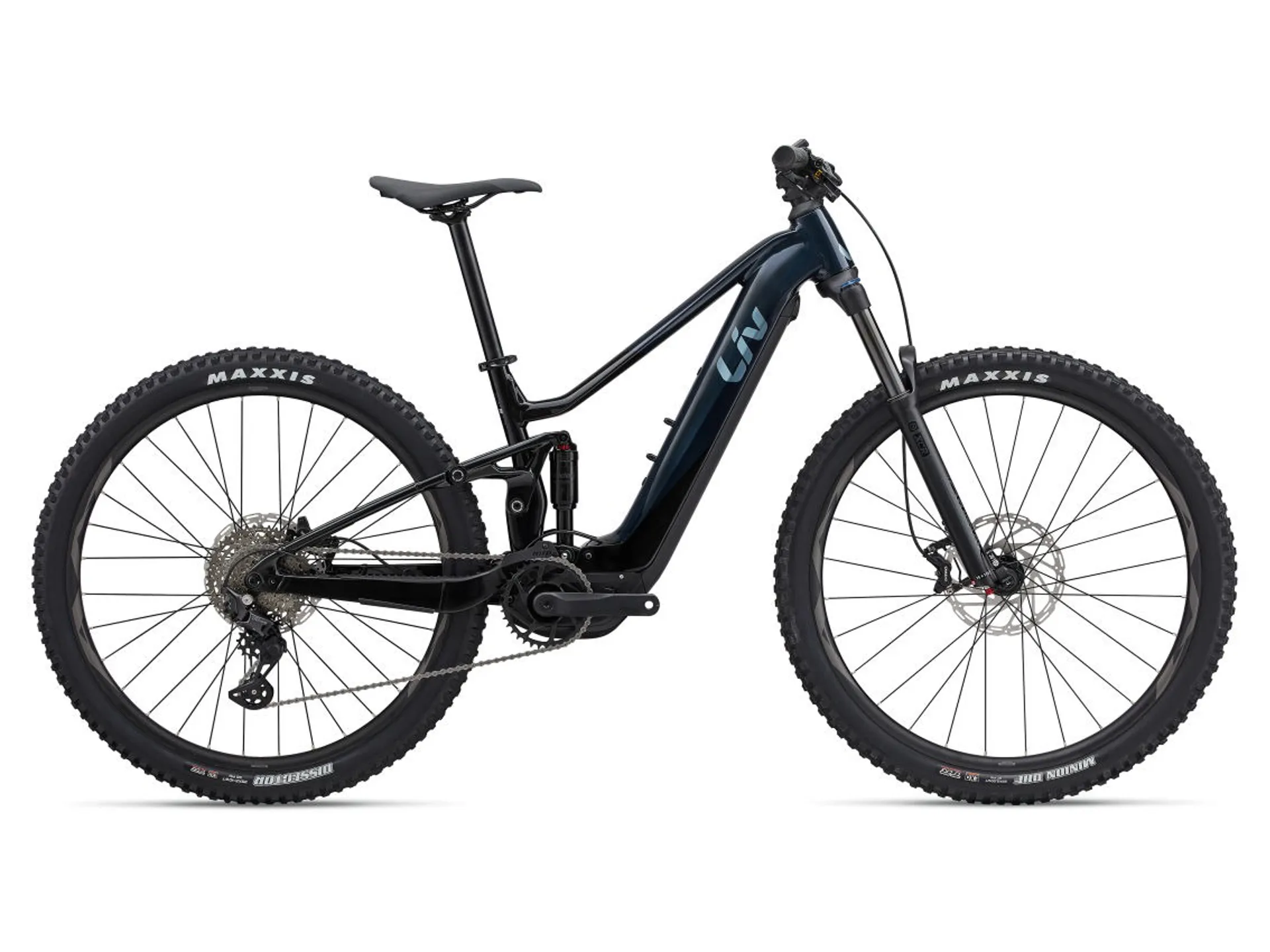

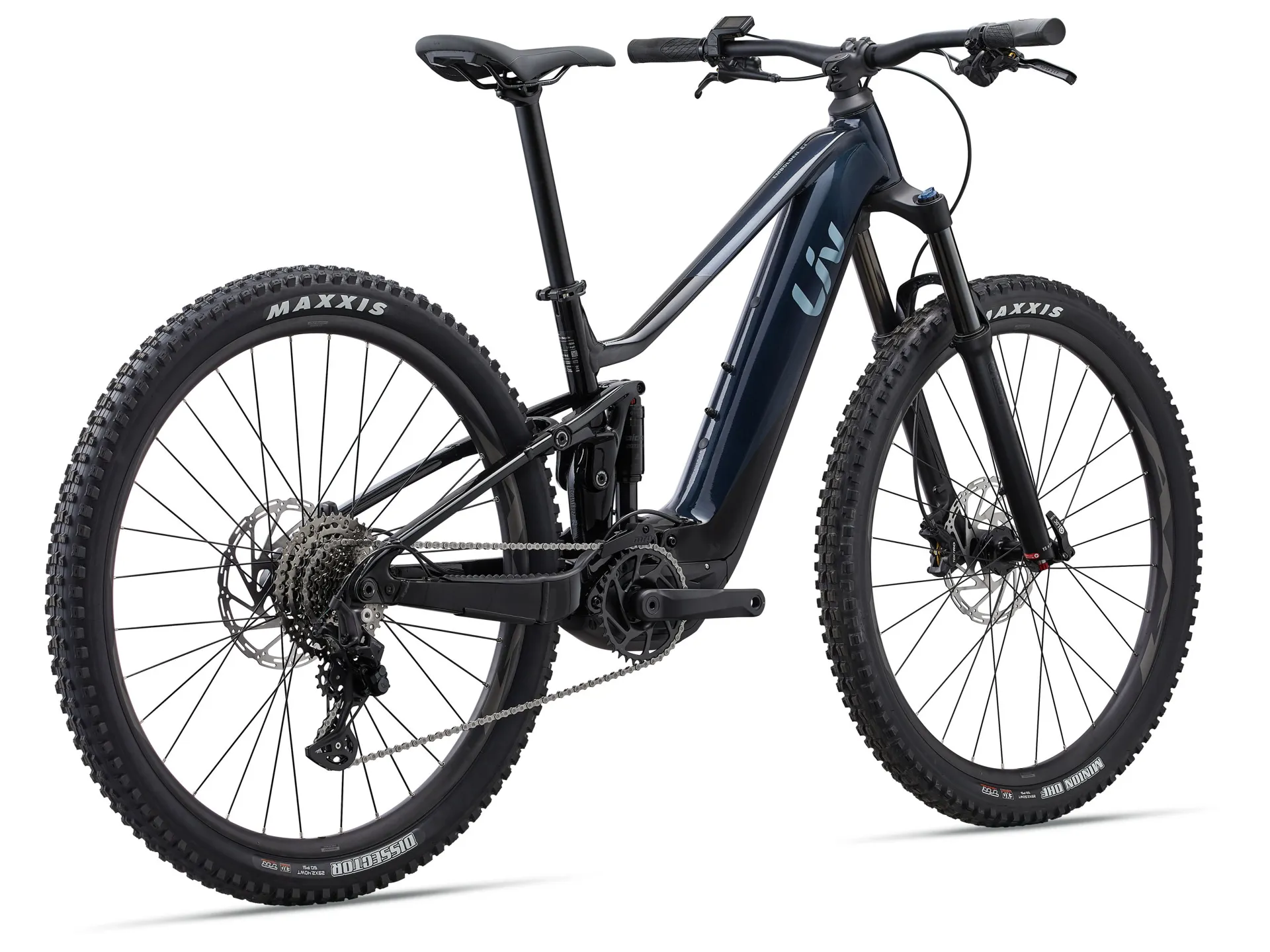

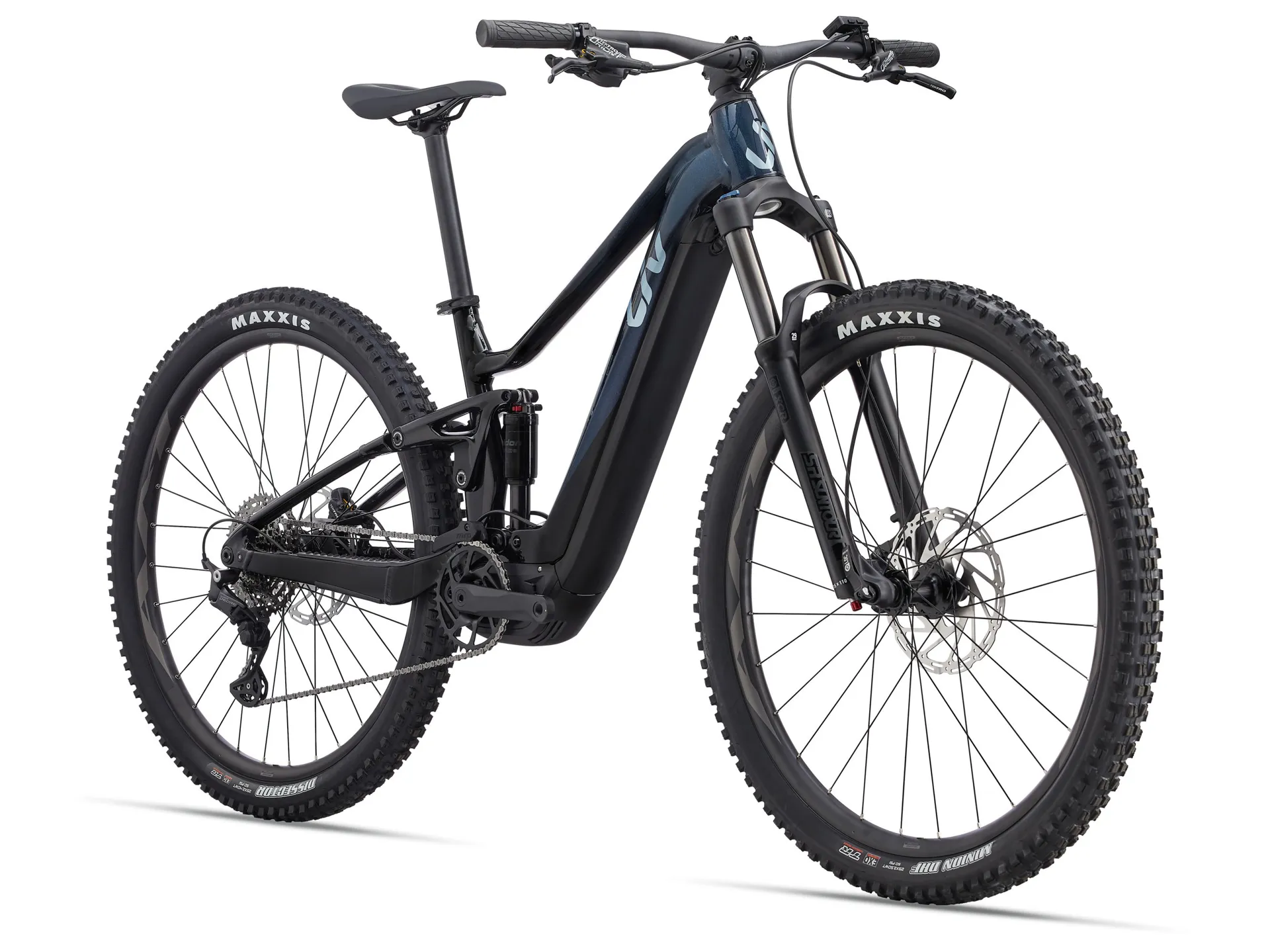

LIV Embolden E+ 2 - Full Suspension eBike - Cosmos Navy

£2,400.00 £3,499.00 31% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

LIV Embolden E+ 2 - Full Suspension eBike - Cosmos Navy

Season:2023

Brand:Liv

Code:2303324CosmosNVY

Capable and Fun

The high-performing Embolden E+ provides an exhilarating ride. It has a maximum range of 180km, loads of travel (140mm front, 125mm rear), and a powerful motor (75Nm of torque). Epic mountain biking, trekking, and touring adventures are now well within your capabilities.

Versatile for Multi-Usage

The Embolden E+ is your new secret weapon. With its 140mm front/125mm rear suspension, integrated kickstand, fender mounts, and carrier compatibility, this E-bike is ready to tackle challenging technical trails and tick off your bucket list of touring and trekking adventures.

Premium, Integrated Design

This E-bike brings head-turning wow factor to the trails thanks to its internally routed cables, smooth and simple frame lines, and attractive colour and graphics. Additionally, the lower standover height makes it easy to get on and off.

Technical Information
  • Frame
  • Sizes
    Small / Medium / Large
  • Colours
    Cosmos Navy
  • Frame
    ALUXX SL-grade aluminium, 1.5"~1.8" head tube,125mm travel FlexPoint suspension system, 'Boost' 148x12 UDH rear axle, EnergyPak Plus Range Extender Compatible
  • Forks and Shocks
  • Fork
    SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
  • Rear Shock
    SR Suntour Raidon R, 190x45mm, custom tuned
  • eSystem
  • Motor
    SyncDrive Sport2, 75Nm, powered by Yamaha, PedalPlus 6-sensor technology
  • Controller
    RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
  • Display
    RideControl Dash, high-angle visibility, full color LCD display
  • Battery Type
    EnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, EnergyPak Plus 250 range extender compatible
  • Battery Integration
    Internal
  • Connectivity
    N/A
  • Charger
  • Drivetrain and Brakes
  • Brake System
    Tektro HD-M745 Orion Levers / Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
  • Rear Derailleur
    Shimano Deore LinkGlide, 10-speed
  • Front Derailleur
    N/A
  • Shifters
    Shimano Deore LinkGlide
  • Bottom Bracket
    Integrated into motor
  • Crankset
    FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
  • Cassette
    Shimano CS-LG400-10, 11-43T, 10-speed LinkGlide
  • Chain
    Shimano, LinkGlide, CN-LG500
  • Cockpit
  • Handlebar
    Giant Connect TR Riser 31.8x750mm (S), 780mm (M-L)
  • Stem
    Giant Contact
  • Grips
    Liv Tactal Pro Single Lock-On Grips
  • Headset
  • Wheels
  • Front Hub
    Giant eTracker Boost 110x15
  • Rear Hub
    Giant eTracker Boost 148x12mm
  • Rims
    Giant AM 29" Tubeless ready, 30mm inner width
  • Front Tyre
    Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO, 60TPI
  • Rear Tyre
    Maxxis Dissector 29X2.40"" Foldable WT, TLR, EXO, 60TPI
  • Max Tyre Clearance
    N/A
  • Finishing Kit
    N/A
  • Seatpost
    Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
  • Saddle
    Liv sylvia E
  • Pedals
    Aluminium Platform
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Extras
    MRP HD2 co-moulded chain guide
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
S155 - 172
M164 - 175
L170 - 181

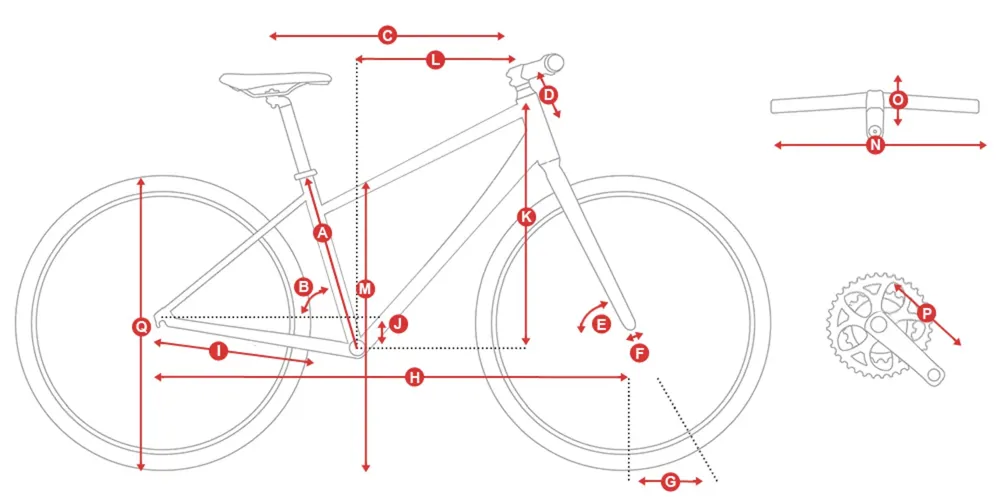

Frame Geometry


SML
ASeat Tube Length (mm)395425455
BSeat Tube Angle76.5°76.0°76.0°
CTop Tube Length (mm)575595615
DHead Tube Length (mm)105115125
EHead Tube Angle66.0°66.0°66.0°
FFork Rake (mm)444444
GTrail (mm)121121121
HWheel Base (mm)119912151237
IChain Stay Length (mm)468468468
JBottom Bracket Drop (mm)404040
KStack (mm)621630639
LReach (mm)425437455
MStand Over Height (mm)710735760
NHandlebar Width (mm)750780780
OStem Length (mm)405060
PCrank Length (mm)165165165
QWheel Size29"29"29"
Professional Opinion
  • ALUXX SL aluminium
    This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for high-performance ride quality.
  • Flexpoint Suspension
    A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
  • Hybrid Cycling Technology
    Hybrid Cycling Technology is a system that combines electric power with human power to produce the most efficient, powerful and natural E-bike riding experience. It’s a seamless extension of a rider’s own power that sets Liv and Giant E-bikes apart from other “electric” bicycles. The system consists of four key innovative technologies that work in unison with your own body’s power output—a seamless extension of your own capabilities.
  • SyncDrive Sport
    Innovation, manufacturing expertise and a motor system powered by Yamaha all combine to expand any rider’s abilities. SyncDrive Sport offers three support modes and is equipped on E-bikes that are used for both everyday riding and for more demanding off-road riding. This small mid-drive motor delivers a massive maximum 70Nm of torque and is widely acclaimed for its performance and reliability.
  • Smart Assist
    All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.
  • EnergyPak
    Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding.
  • RideControl Dash
    This two-in-one unit features buttons to control support modes plus an integrated color display. You can check range, battery level and support mode, along with standard cycling data such as speed and distance without having to another screen to the E-bike. It also has an ANT+ connection so you can connect a heart rate monitor and other fitness devices.
