Sizes
XS, S, M, L
Colours
Gloss Black Diamond/Matte Black
Frame

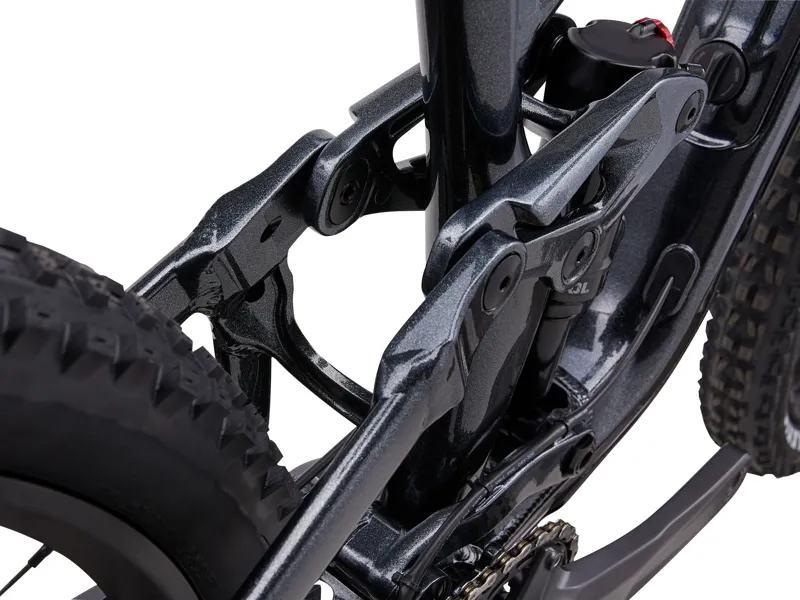

ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage

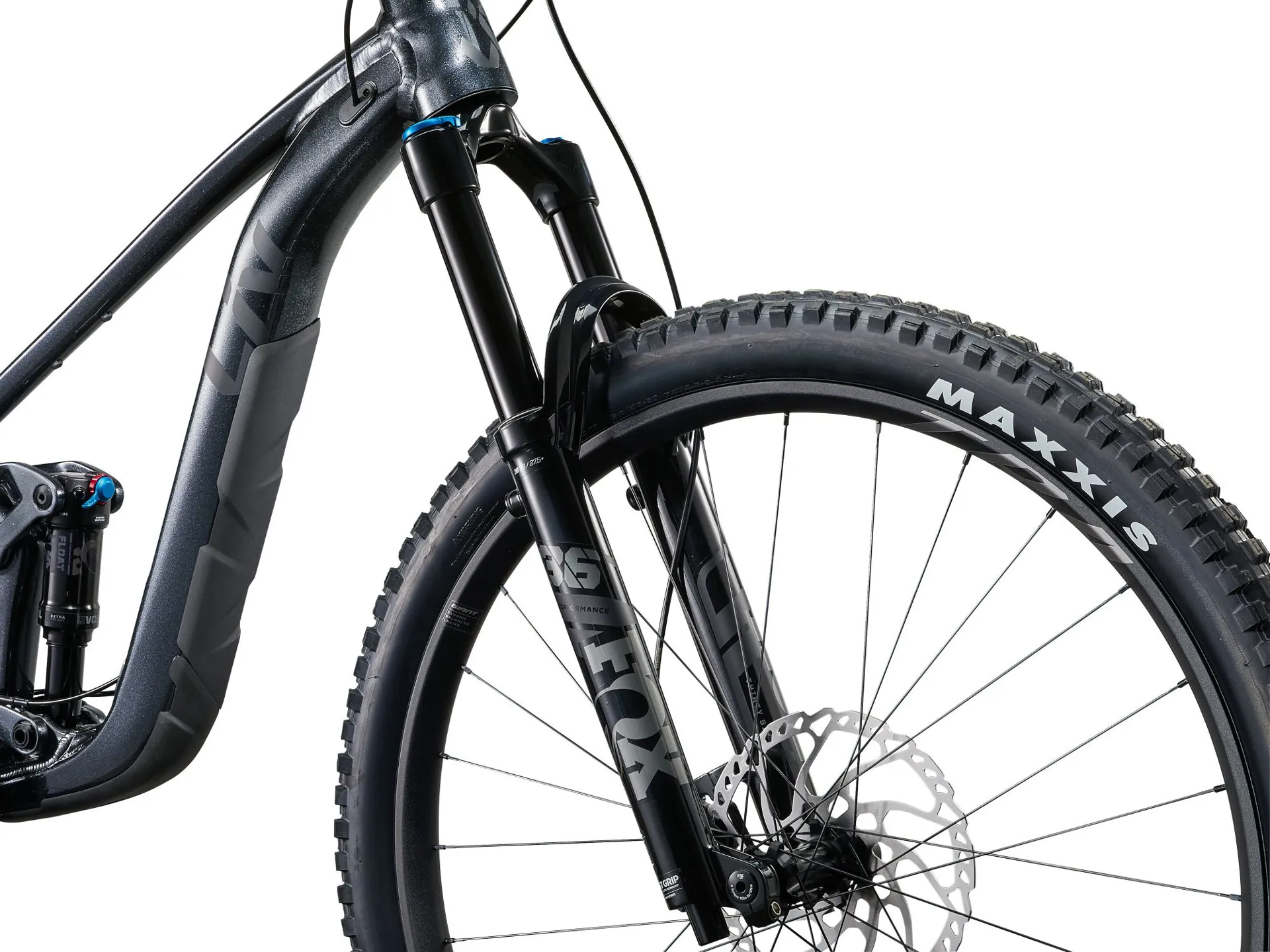

Fork
Fox 36 Float Performance, 150mm, Grip damper, Boost 15x110 Kabolt X, tapered, 44mm offset

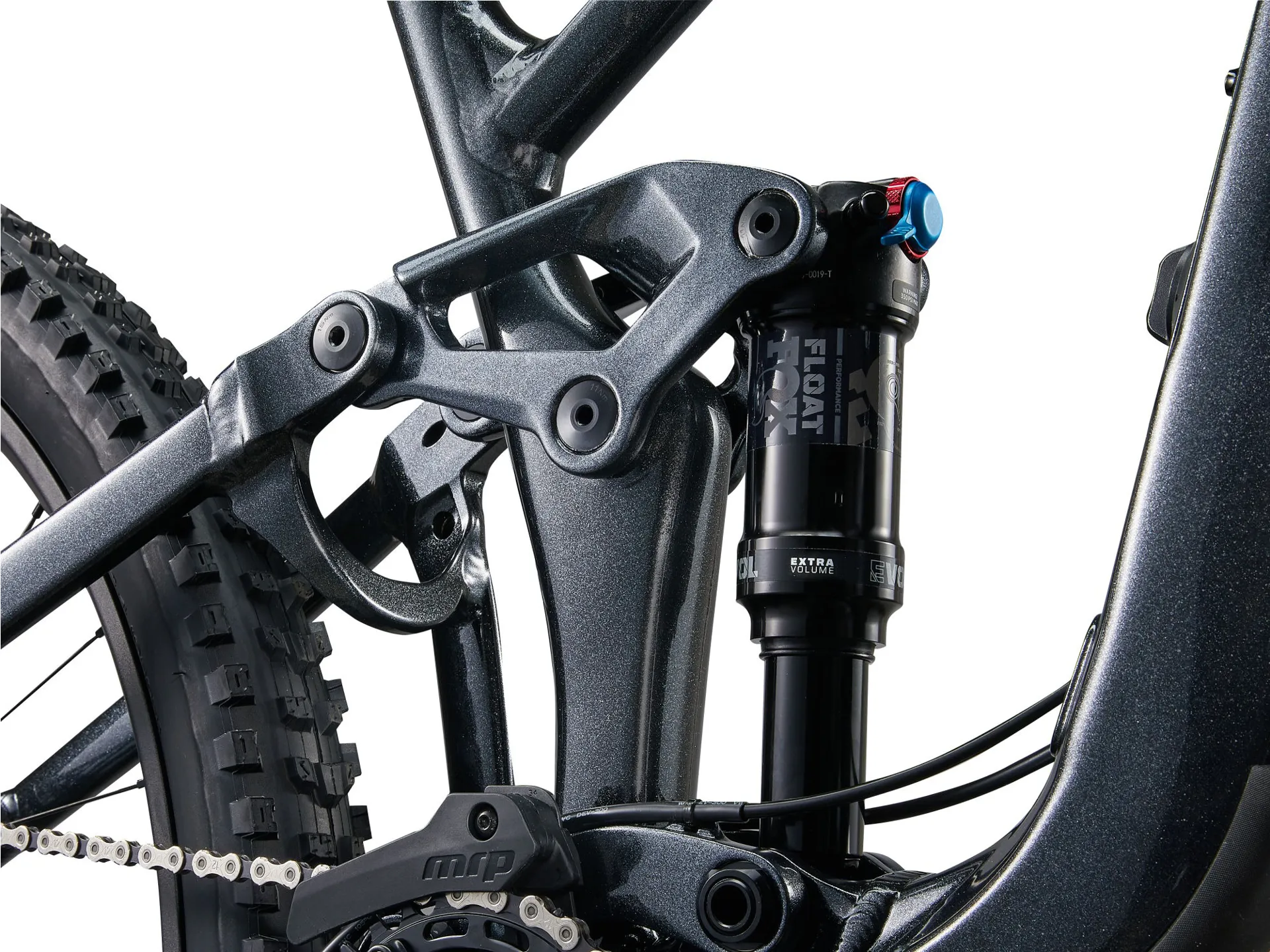

Shock
Fox Float Performance, 185x52.5, custom tuned for Liv

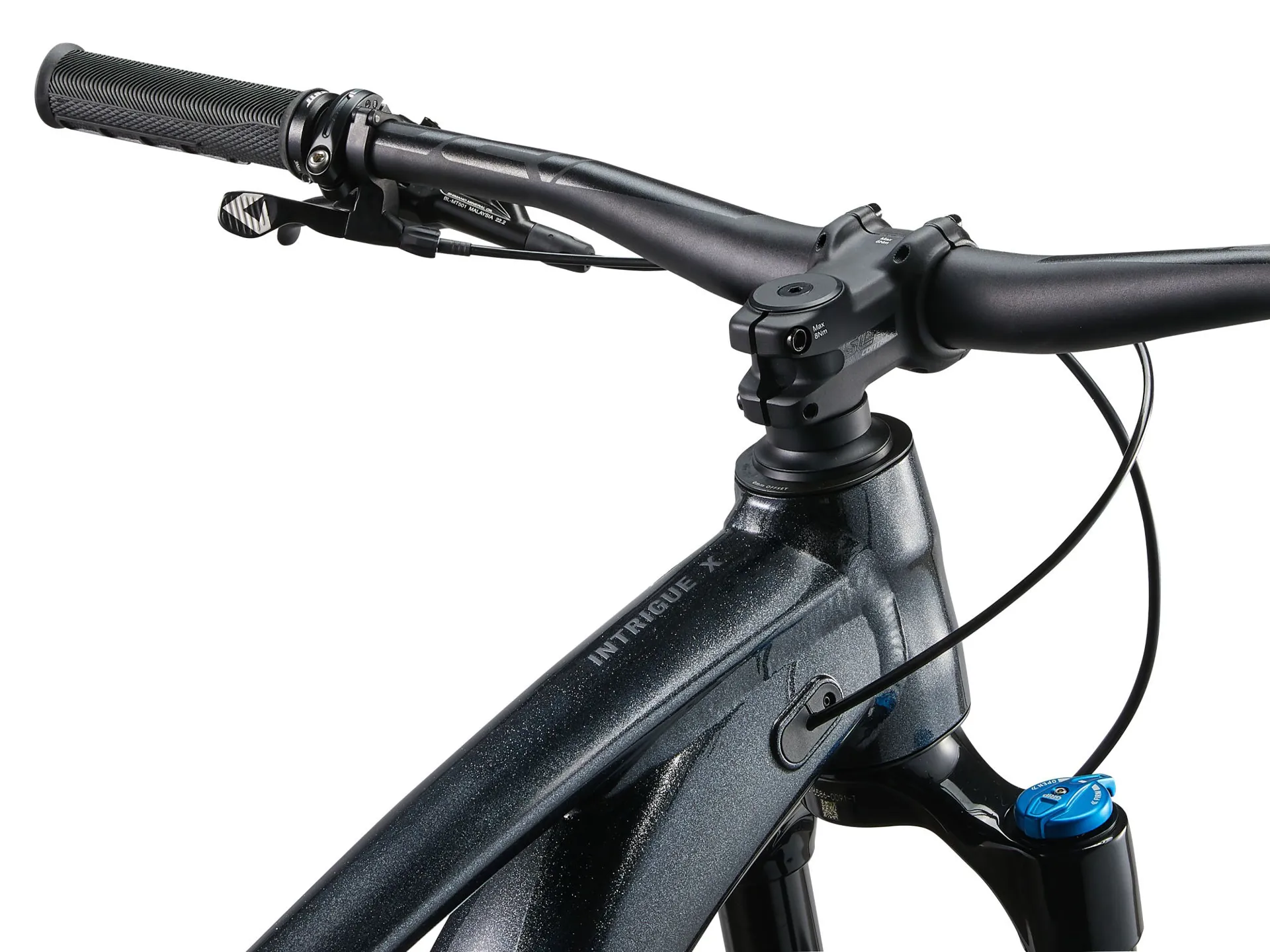

Handlebar
Giant Contact TR35, 20mm rise, alloy
Grips
Liv Tactal Pro Single Lock-on
Stem
Giant Contact SL, 35mm

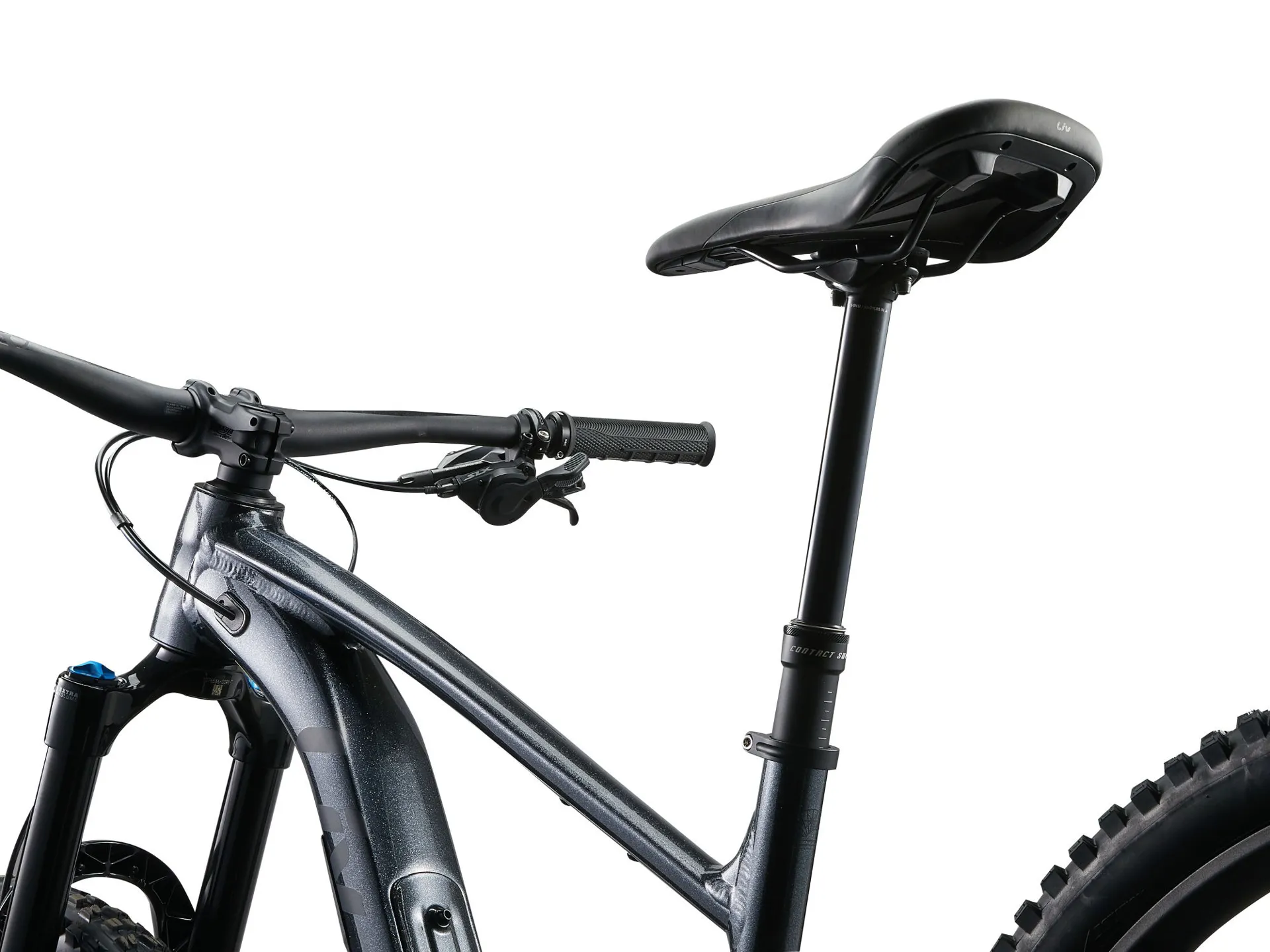

Seatpost
Giant Contact Switch, adjustable dropper, remote XS&S: 140-170mm travel / 30.9 x 470mm M&L: 170-200mm travel / 30.9 x 530mm
Saddle
Liv Sylvia
Pedals
PEDALS NOT SUPPLIED
Shifters
Shimano SLX M7100, 1x12
Front Derailleur
N/A
Rear Derailleur
Shimano SLX M7100, Shadow +
Brakes
Shimano BR-MT520, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm
Brake Levers
Shimano BL-MT501
Cassette
Shimano SLX M7100, 10x51
Chain
KMC X12
Crankset
Shimano MT512-1, 30t, 55mm chainline
Bottom Bracket
Shimano, press fit
Rims
Giant TRA, 29" hookless aluxx wheelsystem, 30mm inner width, 40mm outer width, 21mm H,72t POE, 28 SP spokes, DBL technology, MS driver body
Hubs
alloy, sealed bearing
Spokes
Sapim
Tyres
Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Extras
3M tailgate protector, factory tubeless set up, integrated down tube storage bag, max tyre size 2.5", max chainring size 34t
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
