Giant Glory Advanced Legends Edition carbon downhill frameset with 200mm Maestro suspension, Fox Factory shock, and mixed-wheel compatibility—built for elite DH racing and gravity performance.
Giant Glory Advanced Legends Edition carbon downhill frameset with 200mm Maestro suspension, Fox Factory shock, and mixed-wheel compatibility—built for elite DH racing and gravity performance.
Giant

2023 Giant Glory Advanced Legends Edition DH Frameset

£3,599.00 £5,999.00 40% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2023 Giant Glory Advanced Legends Edition DH Frameset

Season:2024

Brand:Giant

Code:2301022

Race-proven geometry. Carbon precision. Built to honour downhill legends.

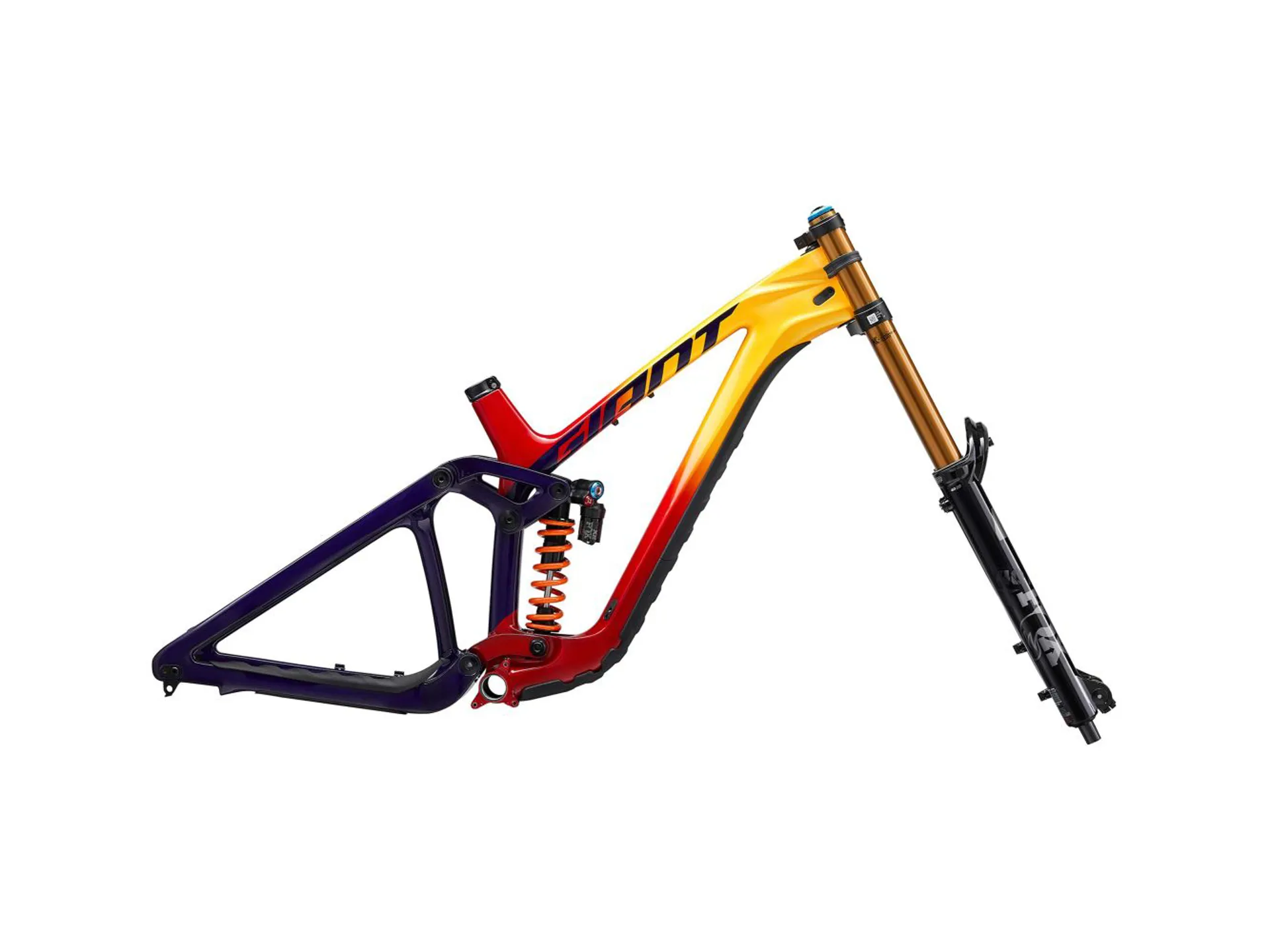

The Giant Glory Advanced Legends Edition Frameset is a tribute to World Cup heritage and elite-level gravity performance. Designed for riders building a custom downhill race machine, this frameset blends Giant’s most advanced composite construction with race-tuned suspension and modern mixed-wheel compatibility.

Its Advanced-grade composite frame uses Giant’s proprietary Modified Monocoque Construction for maximum stiffness-to-weight ratio and impact resistance. The Maestro rear suspension system, refined through years of World Cup development, delivers 200mm of active travel tuned for high-speed control and big-hit absorption.

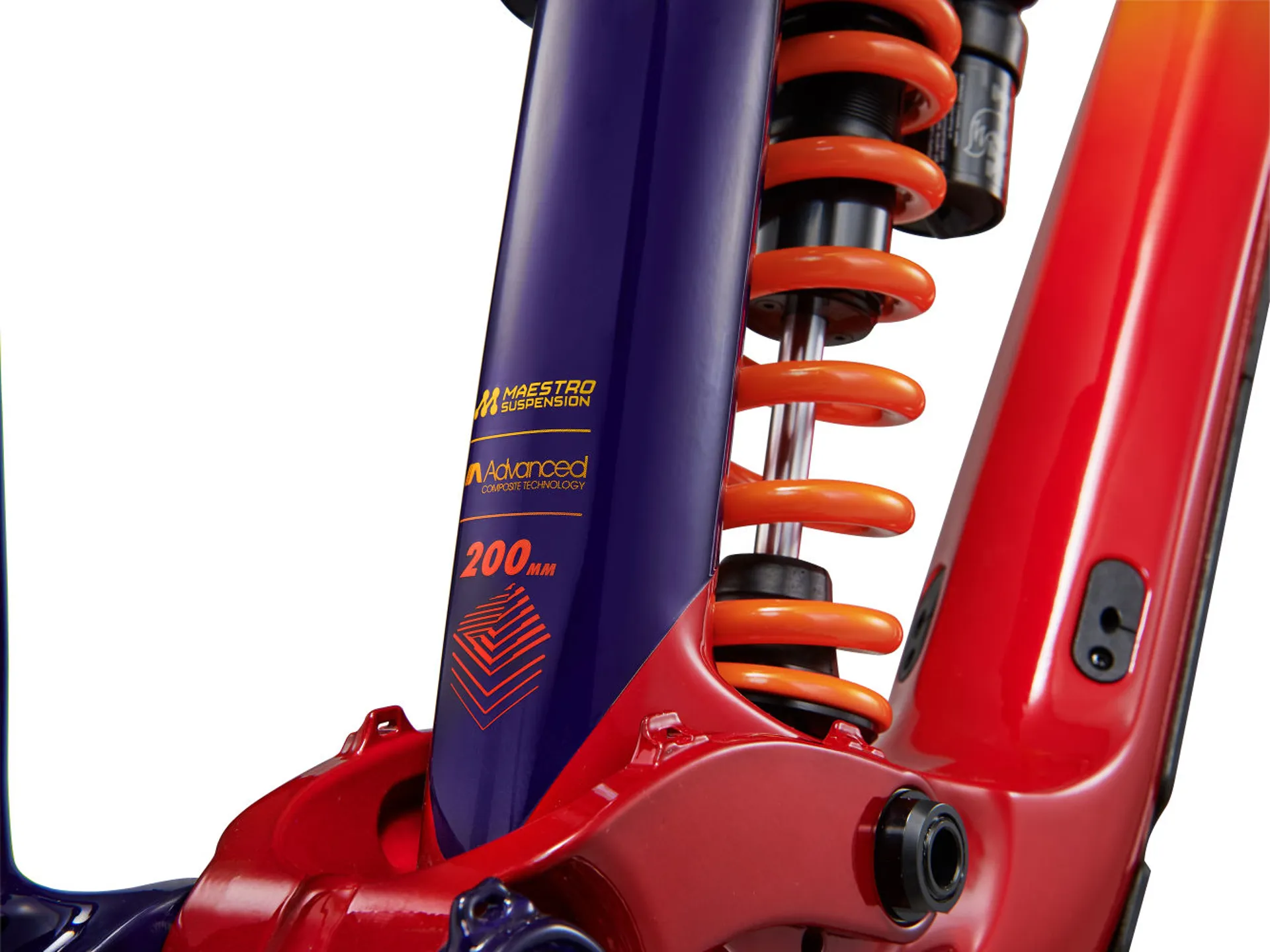

The frame is paired with a Fox 40 Factory Fork offering 203mm of front suspension travel and a Fox DHX2 Factory coil shock, offering high-speed compression and rebound adjustability for precise tuning. Geometry is optimized for 29" front and either 27.5" or 29" rear wheels, delivering rollover confidence up front and agile handling at the rear—ideal for steep, technical terrain and bike park lines.

With internal cable routing, integrated frame protection, and sizing options for S/M, M/L, and L/XL riders, the Glory Advanced Legends Edition is ready to be the foundation of your next podium-chasing build.


Feature List

  • Advanced-grade composite frame with Maestro suspension (200mm rear travel)
  • Fox DHX2 Factory coil shock
  • Mixed-wheel compatibility (29" front / 27.5" or 29" rear)
  • Internal cable routing
  • Integrated frame protection

Technical Information
  • Sizes
    S/M, M/L, L/XL
  • Colours
    Gloss Legends Edition
  • Frame
    Advanced-grade composite front and rear triangles, 200mm Maestro suspension, flip chip - headset, flip chip - dropout DH, flip chip - Maestro 3, 12x157mm thru-axle, 27.5 or 29-inch rear wheel compatible
  • Fork

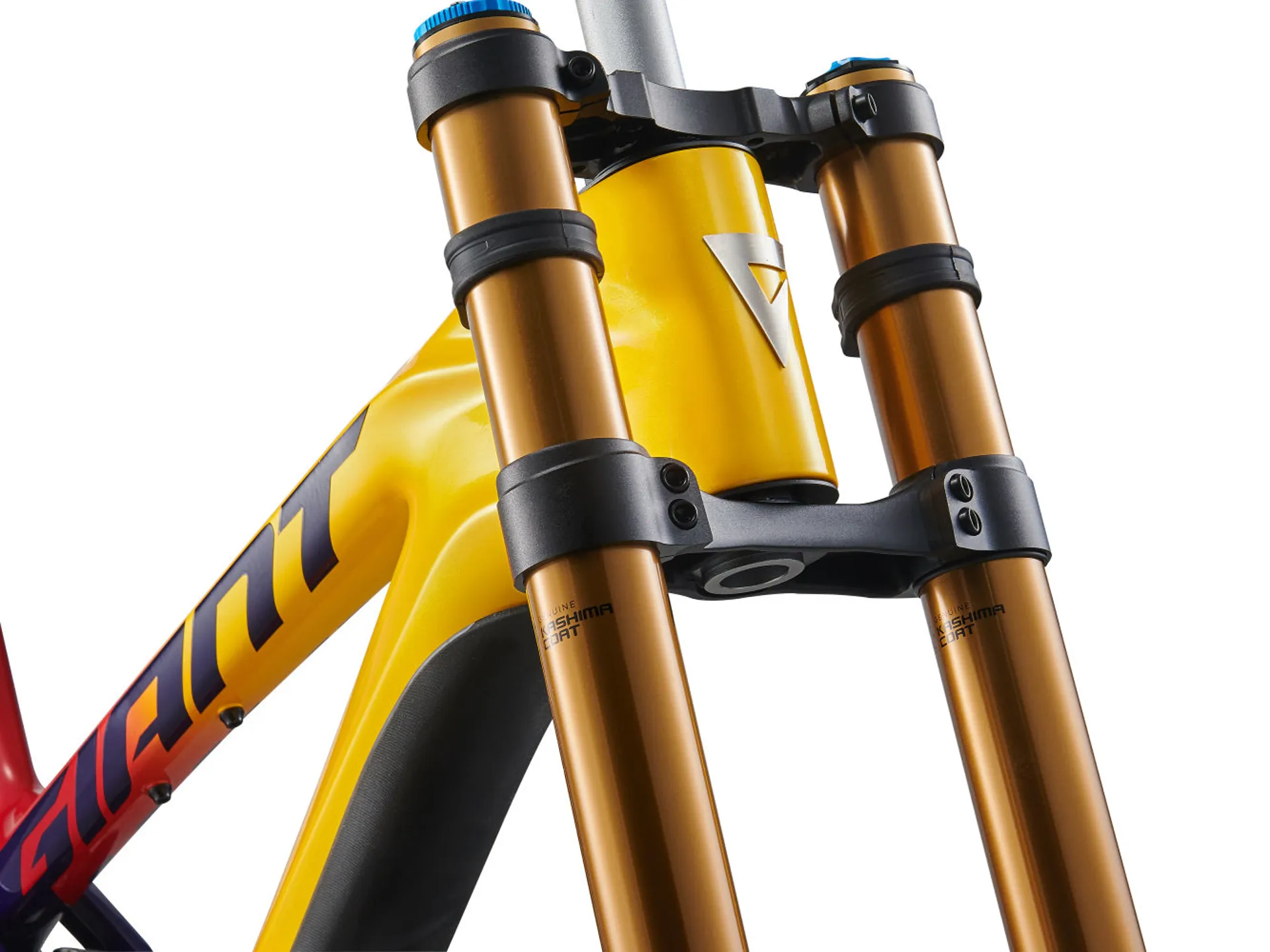

    Fox 40 Factory, GRIP2 damper, 203mm, 20x110, custom tuned for Giant
  • Shock
    Fox DHX2 Factory, SLS coil, 225/75, custom tuned for Giant S/M #425, M/L #450, L/XL #475
  • Extras
    2.5" max tyre size, 36t max chainring size, MRP SXg chain guide, full downtube protector, headset, axles
Sizing Information

Size Guide

Frame SizeRider height (cm)
S - M164 - 172
M - L172 - 180
L - XL178 - 186

Frame Geometry


S - MM - LL - XL
LOW|MID|HIGHLOW|MID|HIGHLOW|MID|HIGH
ASeat Tube Length (mm)430450450
BSeat Tube Angle78.4°|78.7°|79.1°78.4°|78.8°|79.1°78.5°|78.8°|79.1°
CTop Tube Length (mm)571|570|569591|590|589611|610|609
DHead Tube Length (mm)110110110
EHead Tube Angle61.6°|61.9°|62.3°61.6°|62.0°|62.3°61.7°|62.0°|62.3°
FFork Rake (mm)525252
GTrail (mm)146.4|143.6|140.8146.2|143.5|140.8146.0|143.3|140.8
HWheel Base (mm)1273|1271|12701293|1291|12901313|1311|1310
IChain Stay Length (mm)447|446|445447|446|445447|446|445
JBottom Bracket Drop (mm)13|8|313|8|313|8|3
KStack (mm)634|631|629634|632|629635|632|629
LReach (mm)440|444|448461|464|468481|485|488
MStand Over Height (mm)733|738|742735|740|744742|747|752
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size

Frame Information

XSSMLXL
Length Seat Post350350350350350
Diameter Seat Post27.227.227.227.227.2
Angle Stem
Seat Post Stroke
Rear Suspension Travel
Professional Opinion
  • Advanced Composite
    Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
  • Forged Composite
    A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.
  • Flip Chip - Maestro 3
    This all-new technology allows riders to quickly adjust the geometry and choose a rear wheel size (29-inch or 27.5-inch) for their riding style and terrain. It’s available on select Maestro-equipped mountain bikes. The adjustment affects head tube and seat tube angles, bottom bracket height, and rear-wheel size using eccentric flip chip hardware located on the upper rocker arm of the rear suspension.
  • Maestro
    Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
  • Flip Chip - Dropout DH

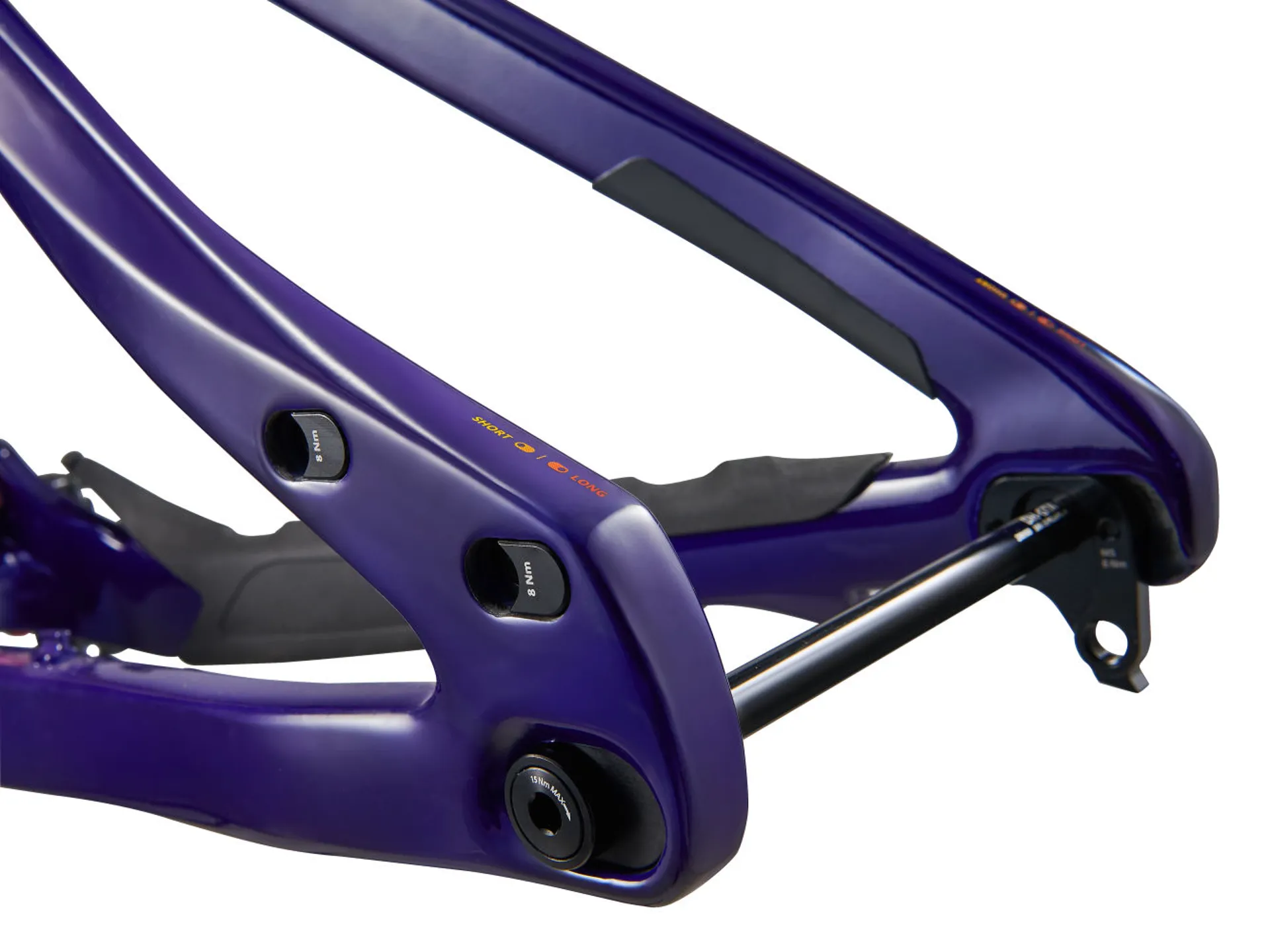

    A quick and simple adjustment on the new Glory Advanced lets you fine tune your bike for the way you ride. A two-position flip chip located on the rear dropout changes the rear-center measurement so racers can get the best performance out of the bike depending on their riding style and terrain.
  • Flip Chip - Headset
    This new three-position flip chip at the headset area of the Glory Advanced lets riders quickly fine-tune cockpit dimensions and geometry for their riding style and terrain.
