2025 Giant Glory Advanced carbon downhill frameset with 200mm Maestro suspension, Fox DHX Factory coil shock, and adjustable geometry—built for elite gravity racing and bike park domination.
2025 Giant Glory Advanced carbon downhill frameset with 200mm Maestro suspension, Fox DHX Factory coil shock, and adjustable geometry—built for elite gravity racing and bike park domination.
Giant

2025 Giant Glory Advanced DH Frameset - Gloss Quarry/Chrome

£3,499.00 £3,999.00 13% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Giant Glory Advanced DH Frameset - Gloss Quarry/Chrome

Season:2025

Brand:Giant

Code:1904002

Race-proven speed. Full-composite control. Built for gravity.

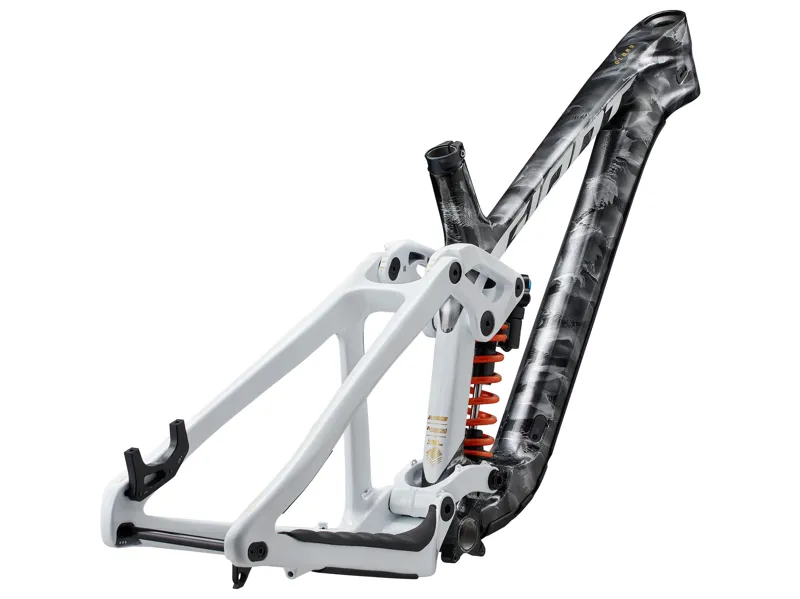

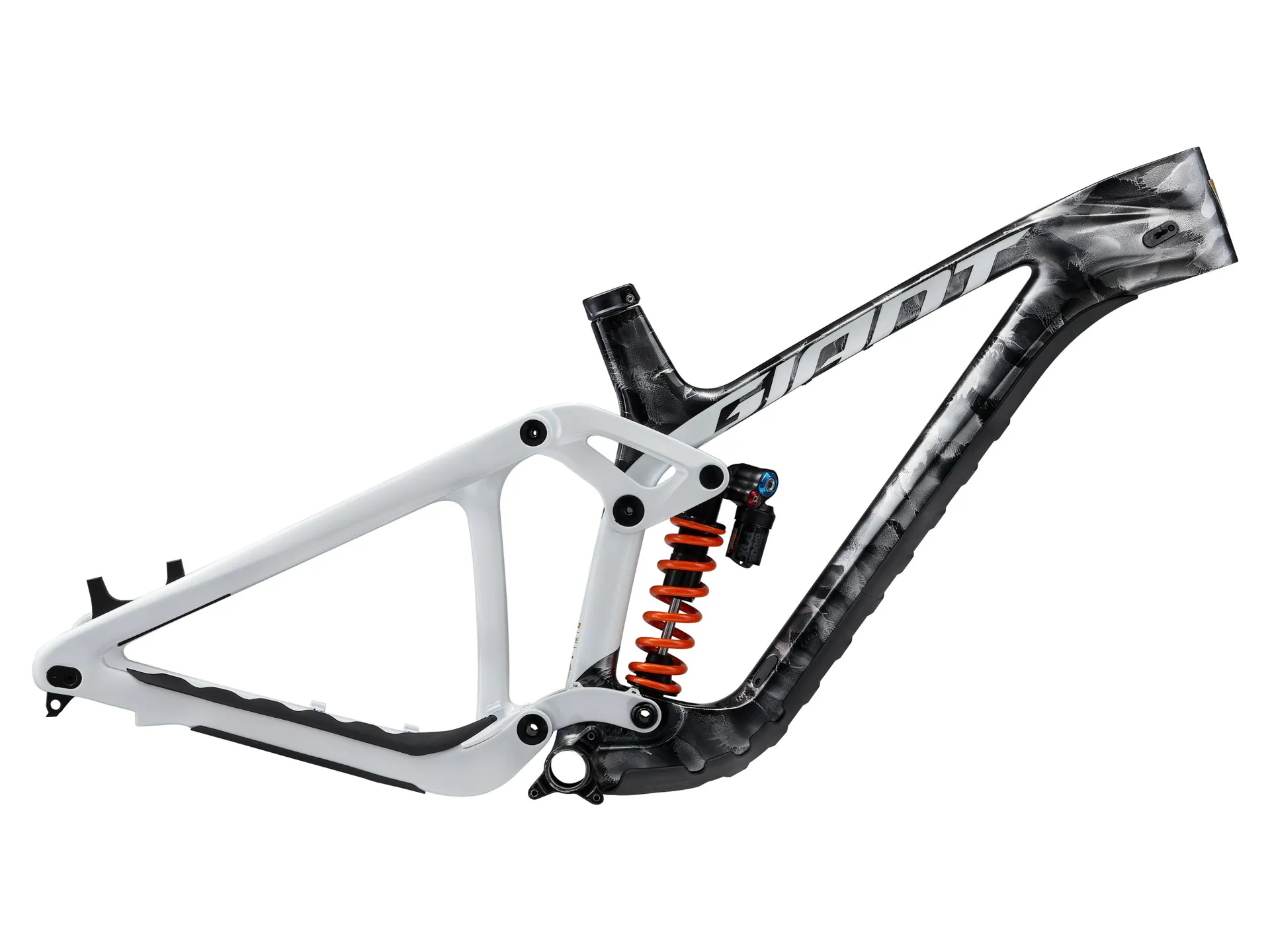

The 2025 Giant Glory Advanced Frameset is a purpose-built downhill race platform designed for riders chasing podiums, bike park laps, and big mountain lines. Finished in Gloss Quarry/Chrome, this frameset blends cutting-edge composite engineering with ultra-adjustable geometry and World Cup-level suspension performance.

Its Advanced-grade composite frame is constructed using Giant’s proprietary Modified Monocoque process, delivering a high stiffness-to-weight ratio and precise handling under extreme loads. The Maestro rear suspension system offers 200mm of travel, tuned for plush absorption and aggressive terrain control.

The Fox DHX2 Factory coil shock with trunnion mount provides race-tuned damping and responsiveness, while the Advanced Forged Composite rocker arm enhances stiffness and durability. The frame features adjustable geometry via flip chip, allowing riders to fine-tune head angle, bottom bracket height, and wheelbase for different tracks and riding styles.

With Boost 12x148mm rear spacing, UDH compatibility, and integrated chain guide mounts, the Glory Advanced is ready for modern DH drivetrains and setups. Tyre clearance supports aggressive tread profiles, and internal cable routing keeps the frame clean and race-ready.

Features

  • Advanced-grade composite downhill frame
  • Maestro suspension system with 200mm rear travel
  • Fox DHX2 Factory coil shock with trunnion mount
  • Advanced Forged Composite rocker arm
  • Flip chip adjustable geometry
  • Boost 12x148mm rear spacing
  • UDH (Universal Derailleur Hanger) compatible
  • Integrated chain guide mounts
Technical Information
  • Frame
  • Sizes
    Small / Medium, Medium / Large, Large / X-Large
  • Colours
    Gloss Quarry / Chrome
  • Frame
    Advanced-grade composite front and rear triangles, 200mm Maestro suspension, flip chip - headset, flip chip - dropout DH, flip chip - Maestro 3, 12x157mm thru-axle, 27.5 or 29-inch rear wheel compatible
  • Max Tyre Clearance
    2.5"
  • Forks and Shocks
  • Fork
    Not compatible with the previous generation RockShox Boxxer fork when used in the short reach headset position
  • Rear Shock
    Fox DHX2 Factory, SLS coil, 225/75, custom tuned for Giant S/M:425, M/L:450, L/XL:475
  • Cockpit
  • Handlebar
    N/A
  • Stem
    N/A
  • Headset
    N/A
  • Finishing Kit
  • Seatpost
    N/A
  • Extras
  • Extras
    Max Chainring Size: 36t, MRP SXg chain guide, full down tube protector
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
S / M163 - 180
M / L171 - 188
L / XL179 - 198

Frame Geometry


S / MM / LL / XL
LOW|MID|HIGHLOW|MID|HIGHLOW|MID|HIGH
ASeat Tube Length (mm)430450450
BSeat Tube Angle155165165
CTop Tube Length (mm)78.4°|78.7°|79.1°78.4°|78.8°|79.1°78.5°|78.8°|79.1°
DHead Tube Length (mm)571.2|570.5|569.8591.3|590.5|589.8611.3|610.6|609.8
EHead Tube Angle110110110
FFork Rake (mm)525252
GTrail (mm)146.4|143.6|140.8146.2|143.5|140.8146|143.3|140.8
HWheel Base (mm)1273|1271.9|1270.61293|1291.8|1290.61313|1311.9|1310.6
IChain Stay Length (mm)447.9|446.5|445447.9|446.5|445447.9|446.5|445
JBottom Bracket Drop (mm)13.1|8.1|313.3|8.3|3.113.5|8.4|3.2
KStack (mm)634.6|631.9|629.1634.9|632.2|629.2635.3|632.4|629.3
LReach (mm)440.9|444.7|448.6461.2|464.9|468.6481.5|485.1|488.6
MStand Over Height (mm)733.7|738.2|742.9735.2|740|744.8742.9|747.6|752.3
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size27.5" [R] / 29" [F]27.5" [R] / 29" [F]27.5" [R] / 29" [F]
Professional Opinion
  • Advanced Composite
    Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
  • Forged Composite
    A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.
  • Flip-Chip - Dropout
    A quick and simple adjustment on the new Glory Advanced lets you fine tune your bike for the way you ride. A two-position flip chip located on the rear dropout changes the rear-center measurement so racers can get the best performance out of the bike depending on their riding style and terrain.
  • Flip-Chip - Headset
    This new three-position flip chip at the headset area of the Glory Advanced lets riders quickly fine-tune cockpit dimensions and geometry for their riding style and terrain.
  • Flip-Chip - Maestro 3
    This all-new technology allows riders to quickly adjust the geometry and choose a rear wheel size (29-inch or 27.5-inch) for their riding style and terrain. It’s available on select Maestro-equipped mountain bikes. The adjustment affects head tube and seat tube angles, bottom bracket height, and rear-wheel size using eccentric flip chip hardware located on the upper rocker arm of the rear suspension.
  • Maestro
    Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
