With cutting-edge hub-and-spoke technology and a new 40mm rim profile, this is the lightest WheelSystem ever created by CADEX.
With cutting-edge hub-and-spoke technology and a new 40mm rim profile, this is the lightest WheelSystem ever created by CADEX.
Cadex

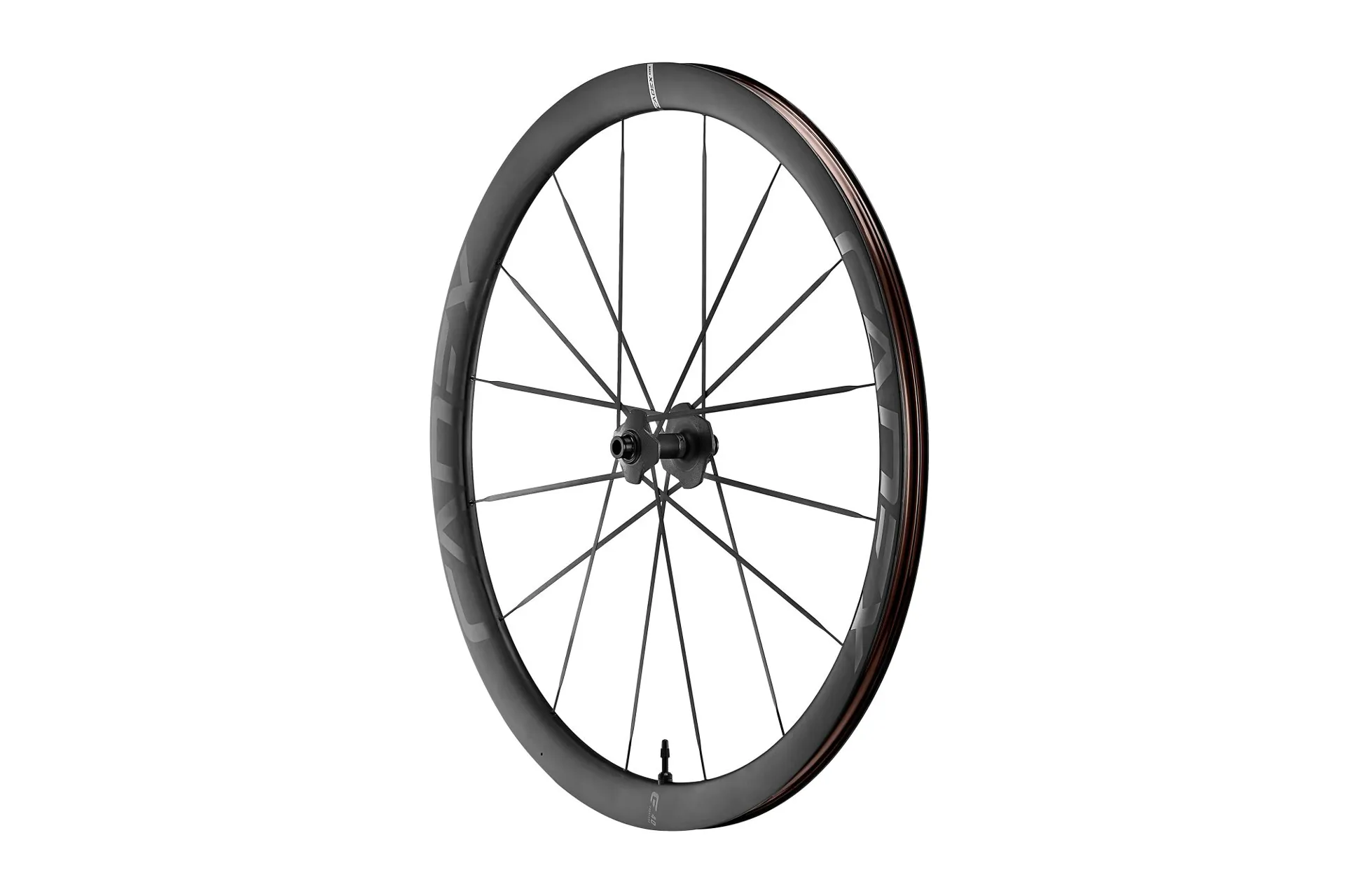

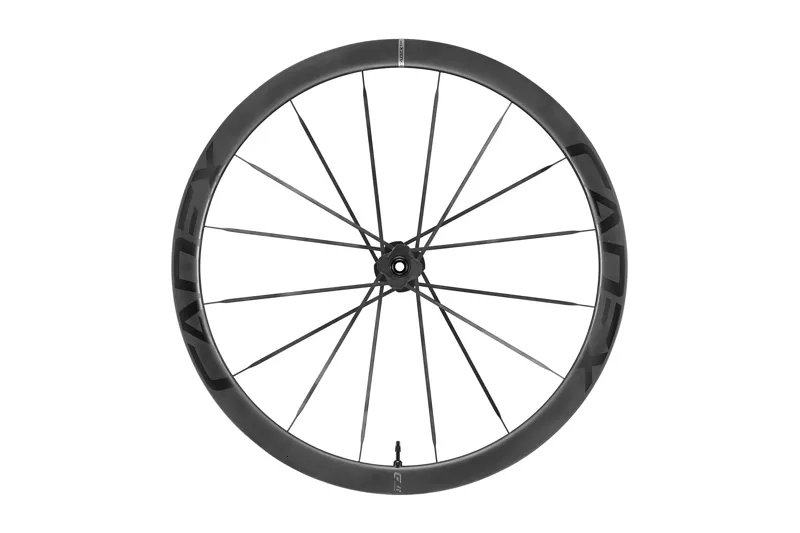

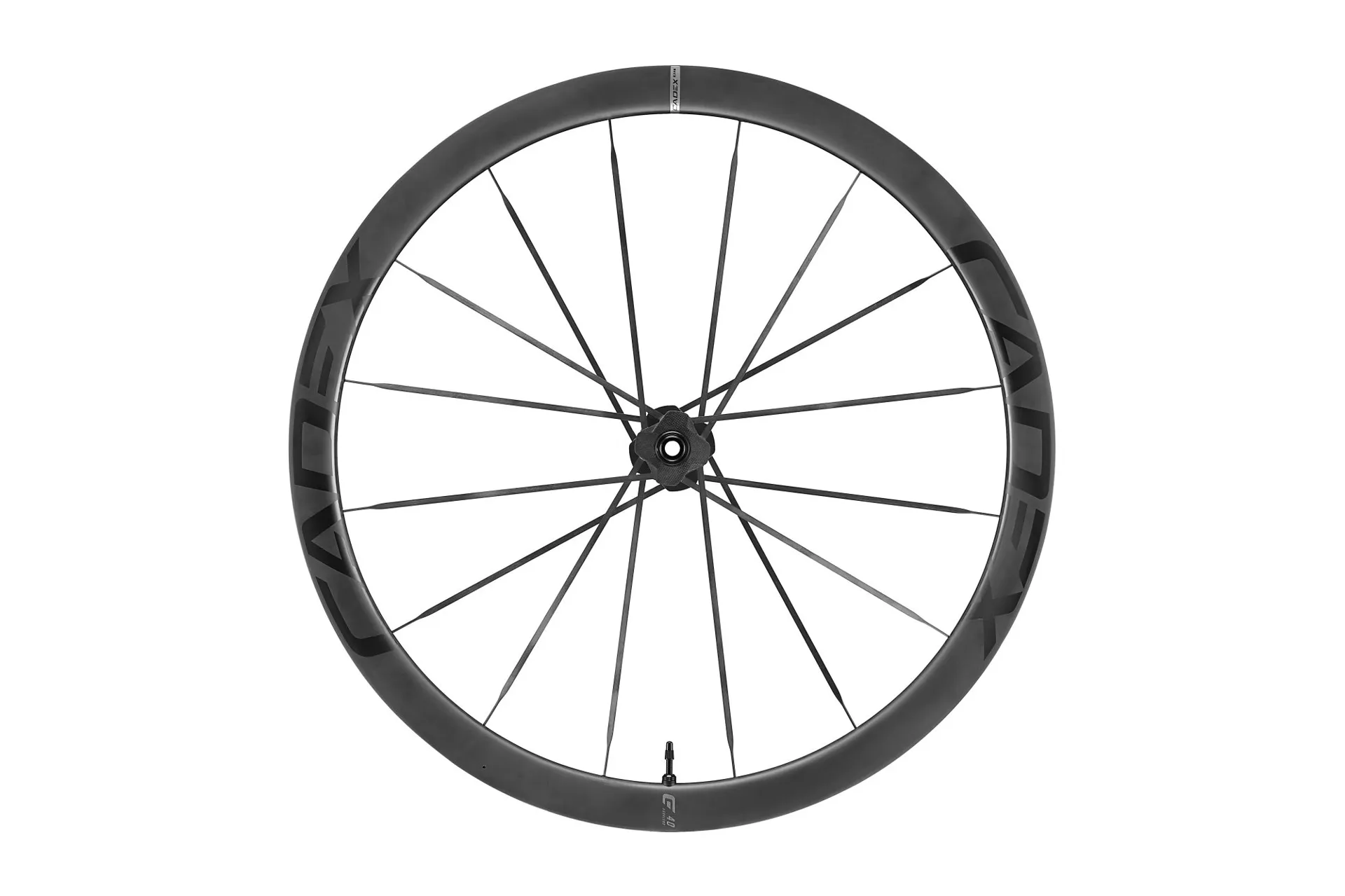

CADEX 40 Max Disc Brake Front Wheel

£1,299.00 £1,499.99 13% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

CADEX 40 Max Disc Brake Front Wheel

Season:2023

Brand:Cadex

Code:350000370

Super Aero bladed carbon spokes are seamlessly integrated with thin aero hub flanges to reduce weight and drag, while Dynamic Balanced Lacing technology sets the spokes at a wider bracing angle to stabilise tension under force and boost power transfer. The 40mm deep carbon rims help keep overall weight at just 1249 grams, and a broad 22.4mm hookless inner rim width offers better tyre sidewall support and improved control.

Features
  • Integrated spoke, hub flange and aero hub design for optimal weight savings, better power transfer, and improved aerodynamics.
  • CADEX hookless rim technology with optimised carbon layup improves durability and tire performance at a superlight weight.
  • High-tensile-strength integrated CADEX Super Aero spokes with hidden nipples and independent internal spoke tension adjustment minimise lateral flex for more
    efficient acceleration and climbing.
  • Dynamic Balanced Lacing technology sets spokes at a wider bracing angle to stabilize spoke tension levels under pedaling force, producing a stiffer, more efficient wheel with outstanding power transfer.
  • 48-tooth ratchet engagement in the CADEX R3-C48 Aero Hub offers more immediate power transfer.
  • CADEX Ratchet Wave Spring ensures the outer and inner ratchet rings engage with consistent and even force for smoother action and better rolling efficiency.
  • Broad 22.4mm inner rim width creates a rounder tire profile and increased tire contact patch for better sidewall support, improved handling, and less rider fatigue.
  • 40mm rim profile delivers exceptional stability and aero benefits for all-day efforts.
  • In-mold carbon surface graphic technology blends CADEX logos into the carbon rim surface without the need for etching or decals.
Technical Information

ComponentDescription
Rim MaterialCarbon
Rim TypeHookless
TubelessCADEX Tubeless System (rim tape and valve kit included)
Suggested Tire Size
700 x 25C – 700 x 32C
Rim Height48mm
Rim Outer Width28mm
Rim Inner Width22.4mm
ETRTO622-22
Front HubCADEX R3, Centerlock One-piece integrated hub and spokes
Rear HubCADEX R3-C48, Ratchet Driver, Centerlock One-piece integrated hub and spokes
Hub CompatibilityShimano / SRAM XDR / Campagnolo N3W
BearingCeramic
Front Axle100x12mm Thru Axle
Rear Axle142x12mm Thru Axle
SpokesSuper Aero Carbon Spoke
Lacing(Front) DBL 16H, (Rear) DBL 24H
Nipple TypeHidden Integrated Alloy Nipple
WarrantyLifetime (for registered original owners)
Incident Replacement5 years (for registered original owners)
WeightPair: 1249g (with Shimano freehub)
Max Weight Limit129kg (bike+rider+kit)
