With the E-Grifn, you go further, longer, and higher than ever before. This e-bike features the Mahle X20 drive unit for a natural riding feel.
With the E-Grifn, you go further, longer, and higher than ever before. This e-bike features the Mahle X20 drive unit for a natural riding feel.
Ridley

Ridley E-Grifn 105 DI2 E-Road Bike in Green

£5,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

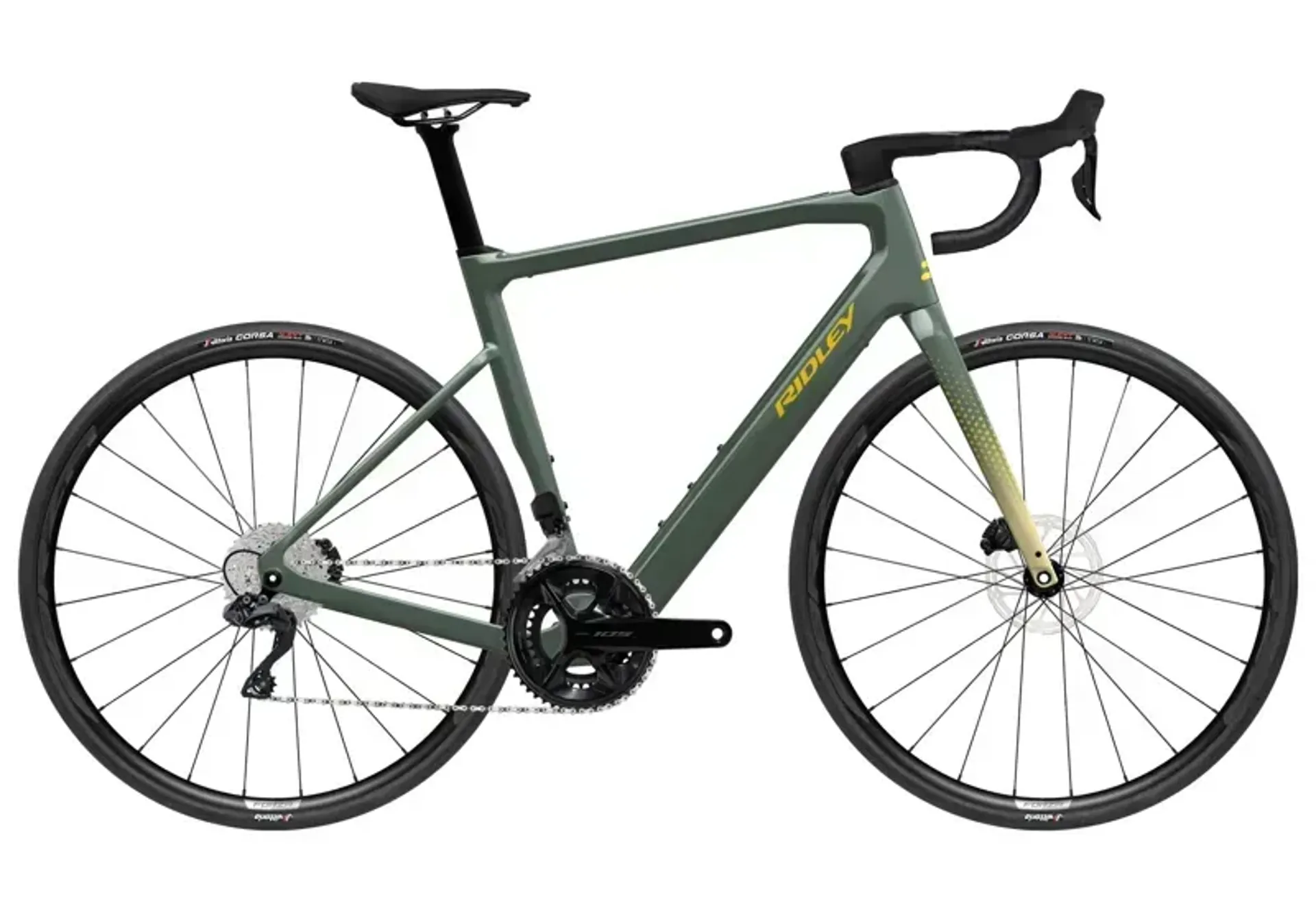

Ridley E-Grifn 105 DI2 E-Road Bike in Green

Season:2024

Brand:Ridley

Code:EGC01BS_105Di2

With the E-Grifn, you go further, longer, and higher than ever before. This e-bike features the Mahle X20 drive unit for a very natural riding feel.

A distinctive feature of this e-bike is the choice of the Mahle X20 drive unit. This compact and proven system makes the impossible possible. The assistance is proportional to the force you apply to the pedals, achieved through the use of a torque sensor in the bottom bracket communicating with the software. You feel like you're always riding with a delightful breeze at your back, making every journey feel like a sporty endeavor.

An advantage of the X20 motor is that it runs virtually without additional mechanical resistance above the limit of 25 kilometers per hour. The power delivery of the system gradually fades out, ensuring a very fluid bike experience. This also contributes to the natural feeling on the bike. Moreover, you can control the motor with your smartphone via the Mahle app and customize it to your preferences. The system even adapts to your riding behavior. With Mahle X20, you have three levels of bike assistance tailored specifically for the Grifn by Ridley's product managers in collaboration with Mahle. This 'custom mapping' is a typical example of Ridley's eternal quest for perfection.

The geometry of the E-Grifn is the same as that of the Grifn RS, with a removable front derailleur clamp, space for tires up to 42 millimeters, and the UDH hanger. The battery is neatly integrated into the frame, maintaining the sporty look of the E-Grifn.

Technical Information
  • Frame
    E-Grifn, Mahle X20, 350Wh, TA12x142, Mudguard mounts, UDH, BB86, Removable front derailleur clamp
  • Material
    Carbon
  • Frame Level
    Elite Series
  • Max Tire Clearance 700c (*)
    42mm (1x drivetrain) / 38mm (2x drivetrain)
  • Paint Finish
    Glossy
  • Fork
    4ZA AllRoad, TA12x100, Integrated dynamo routing, Fender mounts, Full Carbon
  • Groupset
    Shimano 105 DI2, 2x12s
  • Rear Derailleur
    Shimano 105 DI2, 2x12s
  • Crank
    Shimano 105, 50/34, 172mm
  • Cassette
    Shimano 105, 12s, 11-34
  • Front Derailleur
    Shimano 105 DI2, 2x12, Braze-on
  • Brake Type
    Flat Mount
  • Front Wheel
    4ZA Norte G F 28TL -X20- NO STI
  • Rear Wheel
    4ZA Norte G R 28TL - MAHLE X20 SHI - NO STI
  • Outer Tyre
    Vittoria Corsa N.EXT, 700x32c, Foldable
  • Handlebar
    Forza Cirrus Pro Integrated Flared, 110mm - 400mm (cc shifters) - 465mm (cc drops), 16° flared, Drop 120mm, Reach 70mm
  • Seatpost
    Forza Aero, Zero Offset, 350mm
  • Saddle
    Selle Italia Model Y, Black
  • Range
    All-Road
  • Weight Limit
    110 KG (Bike included)
