Are you looking for an electric full-suspension bike with which you can master steep uphills just as smoothly as demanding downhills? Then the AllTrail 5 27.5 is your perfect companion for any terrain.
Are you looking for an electric full-suspension bike with which you can master steep uphills just as smoothly as demanding downhills? Then the AllTrail 5 27.5 is your perfect companion for any terrain.
Haibike

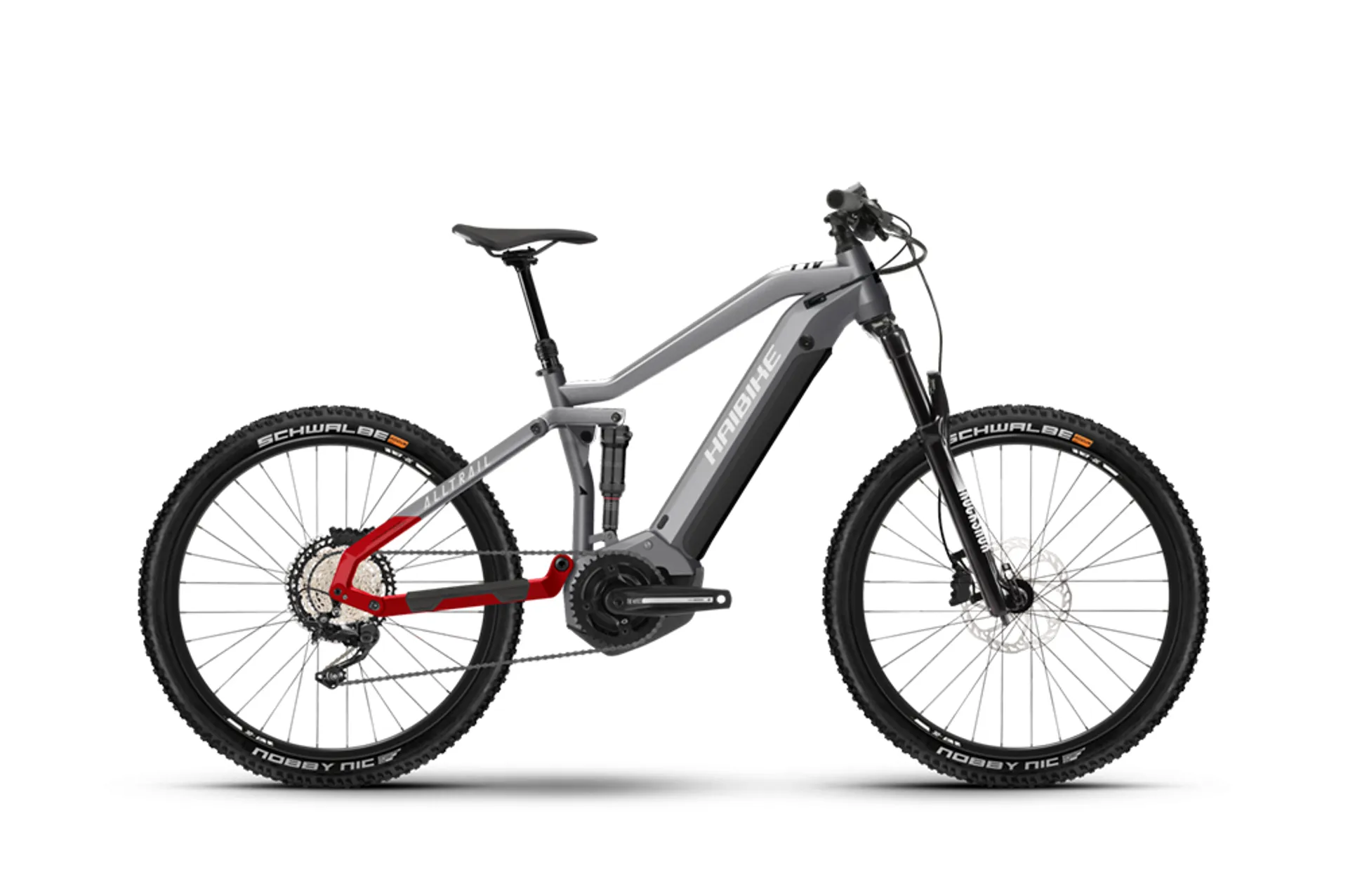

2022 Haibike Alltrail 27.5 5 i630 - Electric Bike - Grey / Red

£3,799.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2022 Haibike Alltrail 27.5 5 i630 - Electric Bike - Grey / Red

Season:2022

Brand:Haibike

Code:30149GRY

Are you looking for an electric full-suspension bike with which you can master steep uphills just as smoothly as demanding downhills? Then the AllTrail 5 27.5 is your perfect companion for any terrain: The Yamaha PW-ST drive with an integrated 630Wh battery provides reliable and powerful support. 140mm suspension travel at the front and 150mm at the rear, 4-piston disc brakes, and 27.5" wheels with Plus tyres offer you riding fun and safety in every situation.
Technical Information
    • ENGINE

      Yamaha, PW-ST System, 250 Wh, 70 Nm, 25 km/h

    • DISPLAY

      Yamaha, Side Switch, 1.7" LCD, 7 functions

    • BATTERY

      Yamaha, InTube, 630 Wh

    • FRAME FAMILY

      Haibike, FullSeven Yamaha i630, Aluminium 6061

    • FORK

      RockShox, 35 Silver, Steel spring, 140 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

    • DAMPER

      RockShox, Deluxe Select, Air, Trunnion Mount

    • CRANK ARM

      Haibike Components, The Crank +, Aluminium

    • BRAKE (FRONT)

      Tektro, Orion M745, 4-piston disc brake

    • BRAKE (REAR)

      Tektro, Orion M745, 4-piston disc brake

    • TUBE

      Presta valve

    • RIM

      Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium

    • CLAMPING RING

      Internal hexagon, 34.9 mm

    • REAR DERAILLEUR

      Shimano, Deore M6100

    • SHIFT LEVER

      Shimano, Deore M6100, Trigger switch

    • BOTTOM BRACKET

      integrated in the motor

    • SPROCKET

      Shimano, M6100, 10 - 51 teeth

    • CHAIN

      Shimano, CN-M6100

    • CHAINRING

      Steel, 38 teeth

    • CHAIN GUIDE

      Nylon directmount

    • BRAKE LEVER

      Tektro, Orion M745, Aluminium

    • BRAKE DISC (FRONT)

      Tektro, TR203, 203 mm

    • BRAKE DISC (REAR)

      Tektro, TR180, 180 mm

    • TYRE

      Schwalbe, Nobby Nic Performance, 65-584, 27.5 x 2.6 inch

    • FRONT WHEEL HUB

      Haibike Components, TheHub ++, 6-bolt standard

    • REAR WHEEL HUB

      Haibike Components, TheHub ++, 6-bolt standard

    • SPOKES

      Sapim, Leader

    • HANDLEBAR

      Haibike Components, TheBar ++, 780 mm

    • GRIPS

      Haibike, MTB grips

    • STEM

      Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees

    • HEADSET

      Feimin, A-Head Tapered, Ball bearing

    • SADDLE

      Selle Bassano, Reko R2 E-Sport

    • SEAT POST

      Dropper-Post Remote 31.6, Aluminium, Telescope, 31.6 mm

    • PEDALS

      Freeridepedal, Aluminium, with Reflector

    • PERMITTED TOTAL WEIGHT

      120.0 kg
