CUBE STEREO HYBRID 160 HPA 27.5 ACTION TEAM 500
CUBE STEREO HYBRID 160 HPA 27.5 ACTION TEAM 500
Cube

2017 CUBE STEREO HYBRID 160 HPA 27.5 ACTION TEAM 500.

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

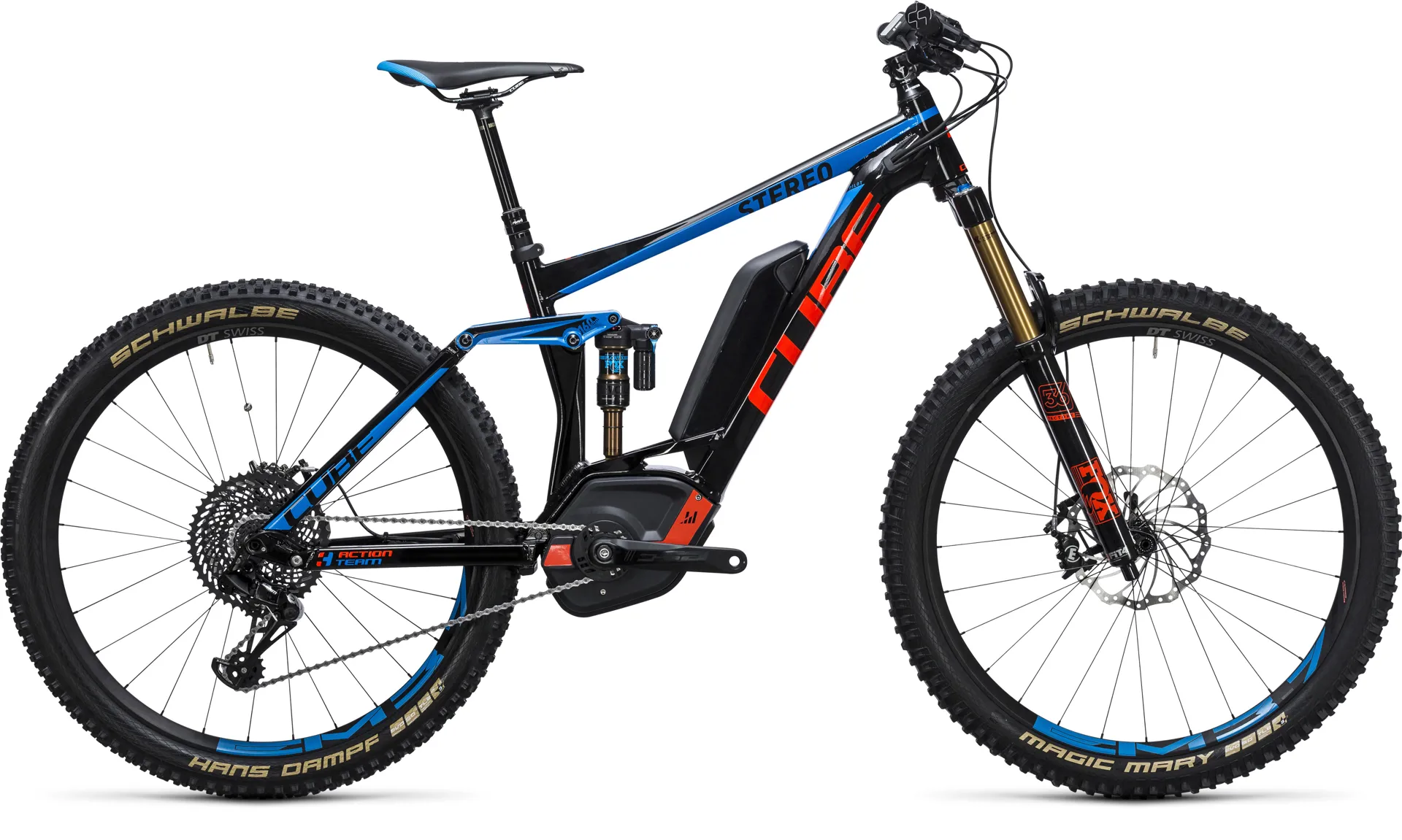

2017 CUBE STEREO HYBRID 160 HPA 27.5 ACTION TEAM 500.

Season:2017

Brand:Cube

Code:875500

We wouldn't call a bike "Action Team" and paint it red and blue without good reason. The Stereo Hybrid 160 has earned the right to wear this name because we're confident it can meet the stringent demands of performance enduro riding. From the new HPA frame to the Fox Factory suspension components and next generation Bosch drive, this e-MTB sets new standards in its class.

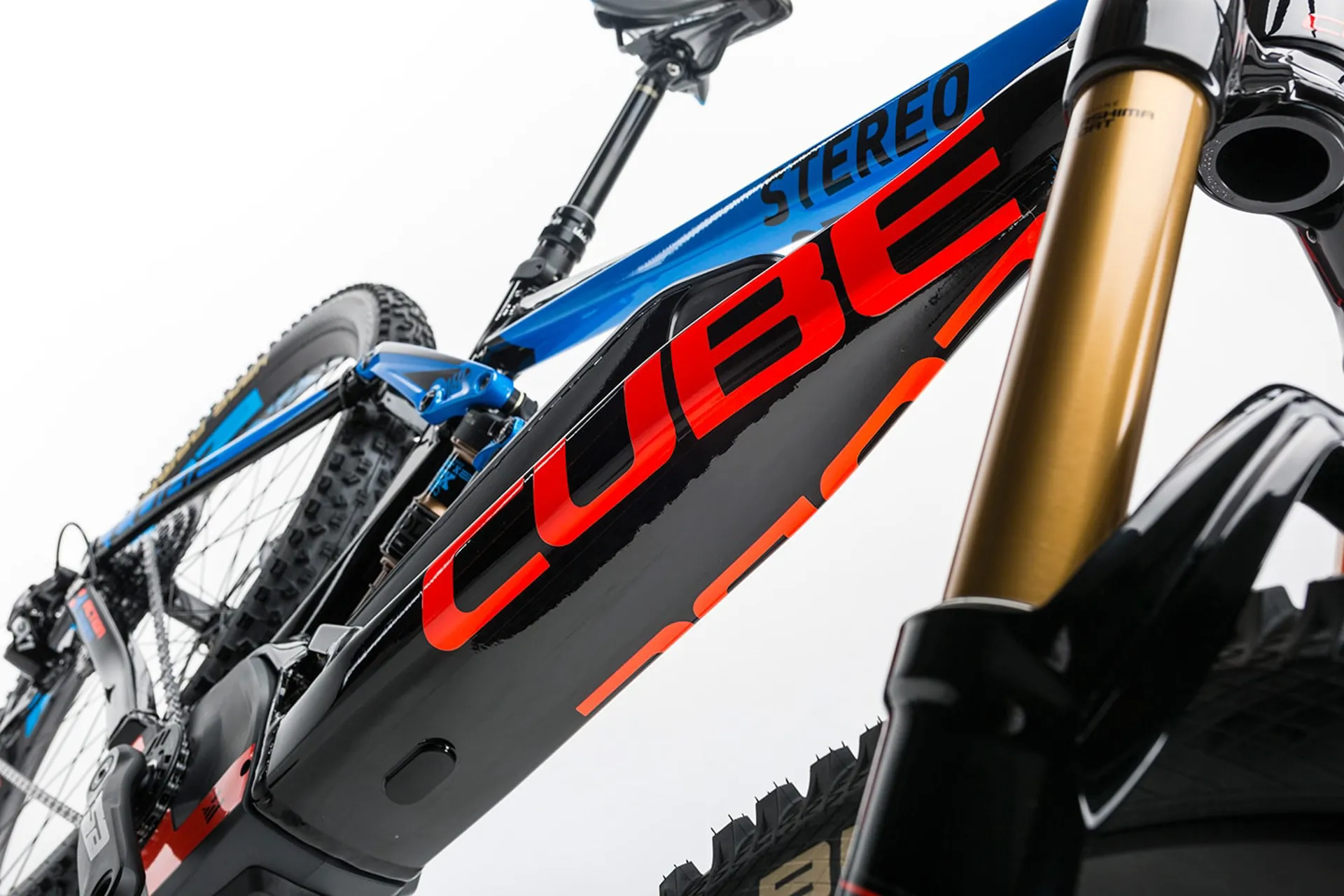

The triple butted 7005 High Performance Aluminium frame isn't just light, it's also extremely stiff and stable thanks to hydroformed tube technology. The Tuned Drive Position (TDP) allowed us to reduce the chainstay length as much as possible. Combined with our much-praised Efficient Trail Control (ETC) suspension design, semi-integrated battery and Agile Trail Geometry (ATG), we've achieved a fantastically compact chassis with superb manoevrability. This makes the Stereo Hypbrid HPA 160 27.5 a veritable rocket out on the trails, pushing you to beat your personal bests time after time. Given the speed of which it's capable, the 148mm Boost X12 rear hub was an obvious upgrade. We've even made sure that it's possible to fit a shock with a piggyback reservoir - a real benefit if shredding epic enduro trails is your thing.

This state-of-the-art enduro e-bike features only the best. Suspension components from the Fox Factory Series offer premium performance and unsurpassed responsiveness thanks to the low-friction Kashima coating. There's a 36 Float fork up front and a Float X shock with innovative EVOL air chamber at the rear. For drive, it had to be the Bosch CX - its incredible 75Nm of available torque makes it the best-performing e-MTB motor for this type of bike. A 500Wh battery helps provide a previously unimaginable range, to ensure that your enduro adventure doesn't come to a premature end. DT Swiss CSW EM 3.7 Straightpull wheels shod with grippy Schwalbe Magic Mary and Hans Dampf tyres - in puncture-proof Super Gravity form - safely apply the drive's epic power to the trail. But the real treat for 2017 is SRAM's EX1 transmission, with an 8-speed 11-48 tooth cassette specificaly adapted to the torque characteristics of the drive unit. What does this mean for you? Unprecedentedly smooth shifting, even under power. Magura's MT7 brake system has the power to tame all this speed, whatever the trail conditions. Finally, the Race Face cockpit with its 800mm handlebar and 35mm diameter clamp offers the best possible steering precision, while the RockShox Reverb Stealth adds manouevrability for the steepest, most technical trails.

Technical Information

Features: This state-of-the-art enduro e-bike features only the best. Suspension components from the Fox Factory Series offer premium performance and unsurpassed responsiveness thanks to the low-friction Kashima coating. There's a 36 Float fork up front and a Float X shock with innovative EVOL air chamber at the rear. For drive, it had to be the Bosch CX - its incredible 75Nm of available torque makes it the best-performing e-MTB motor for this type of bike. A 500Wh battery helps provide a previously unimaginable range, to ensure that your enduro adventure doesn't come to a premature end. DT Swiss CSW EM 3.7 Straightpull wheels shod with grippy Schwalbe Magic Mary and Hans Dampf tyres - in puncture-proof Super Gravity form - safely apply the drive's epic power to the trail. But the real treat for 2017 is SRAM's EX1 transmission, with an 8-speed 11-48 tooth cassette specificaly adapted to the torque characteristics of the drive unit. What does this mean for you? Unprecedentedly smooth shifting, even under power. Magura's MT7 brake system has the power to tame all this speed, whatever the trail conditions. Finally, the Race Face cockpit with its 800mm handlebar and 35mm diameter clamp offers the best possible steering precision, while the RockShox Reverb Stealth adds manouevrability for the steepest, most technical trails.

  • FRAMEHPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ATG, Boost148mm, Tuned Drive Position, AXH
  • COLORaction team
  • SIZE16", 18", 20", 22"

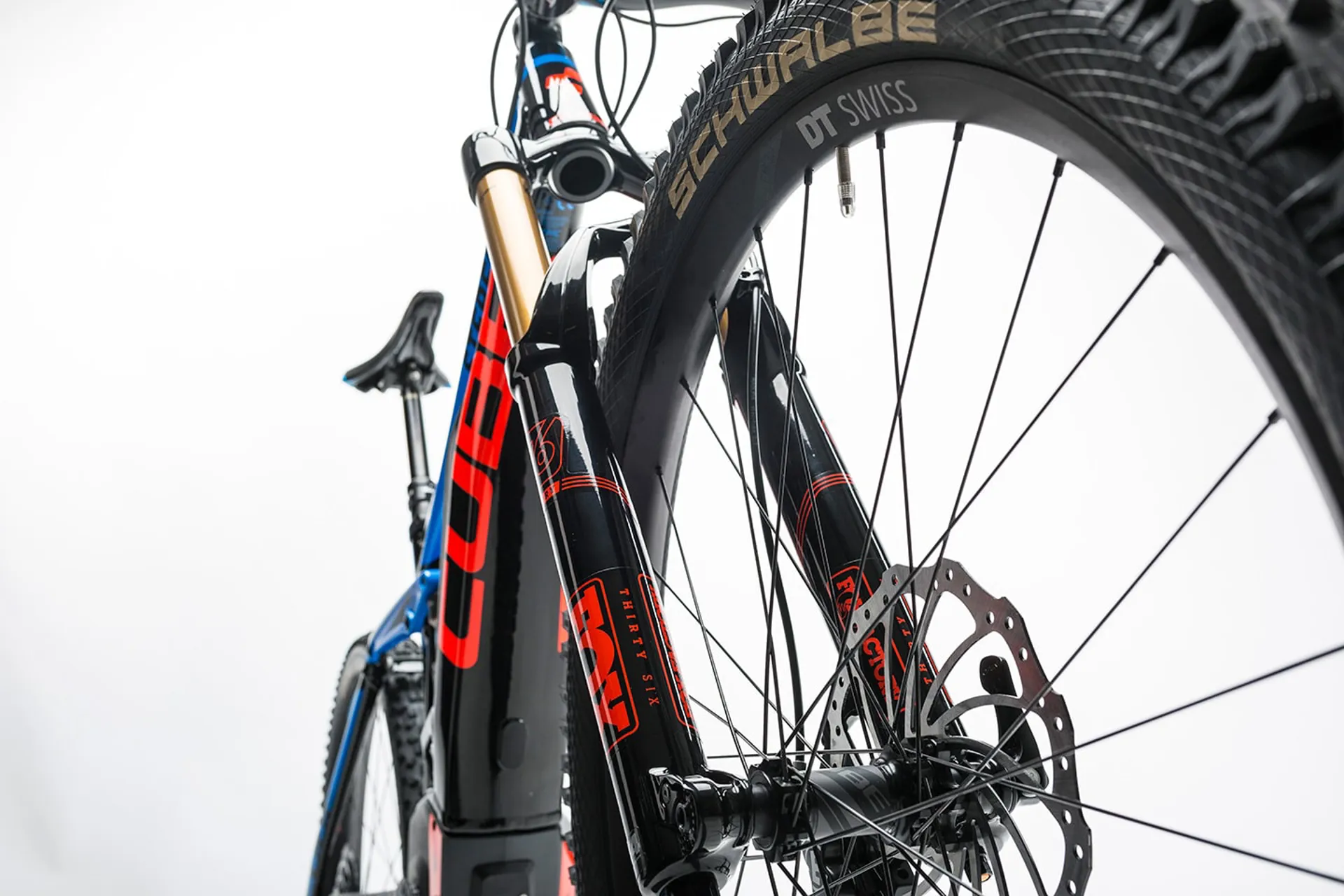

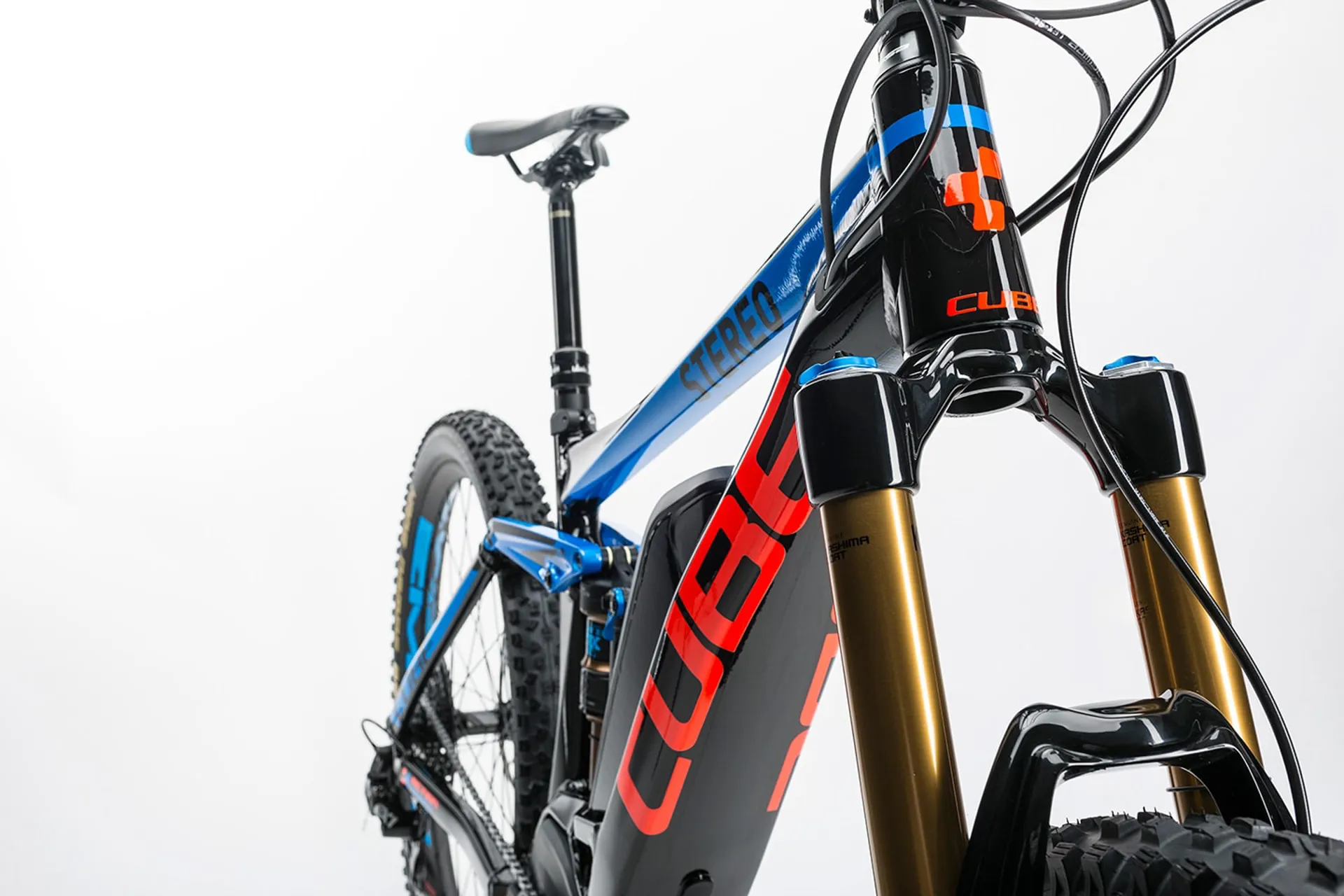

  • FORKFox 36 Float Factory 3-Position FIT4, Open/Medium/Firm Mode, 15QR, Tapered, Kashima Coated, 160mm

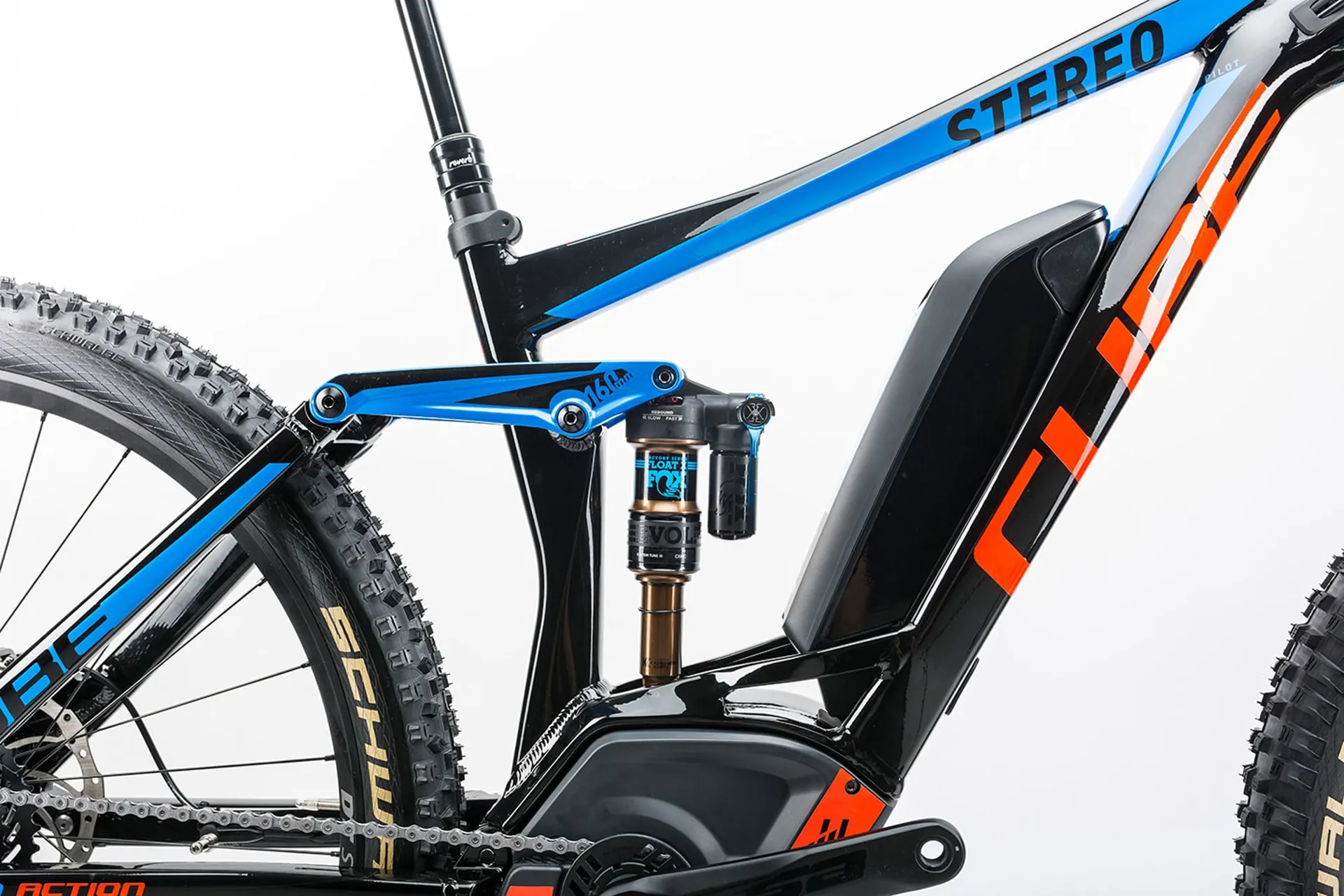

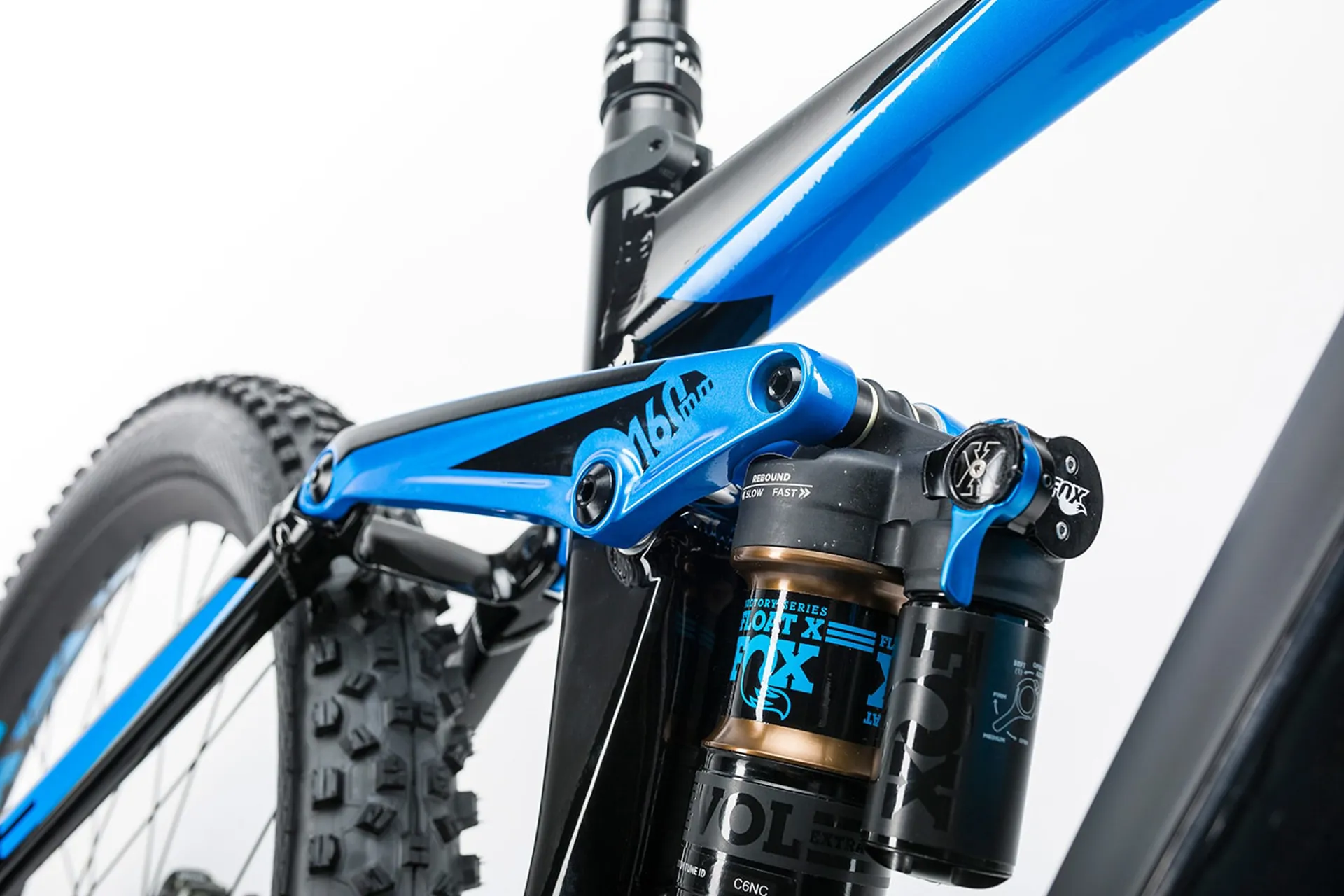

  • SHOCKFox Float X Factory, 200x57mm, Open/Medium/Firm Mode, Kashima Coated, EVOL Air Sleeve
  • SHOCK HARDWARETop: 30x8mm, Bottom: 30x8mm
  • HEADSETFSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2"

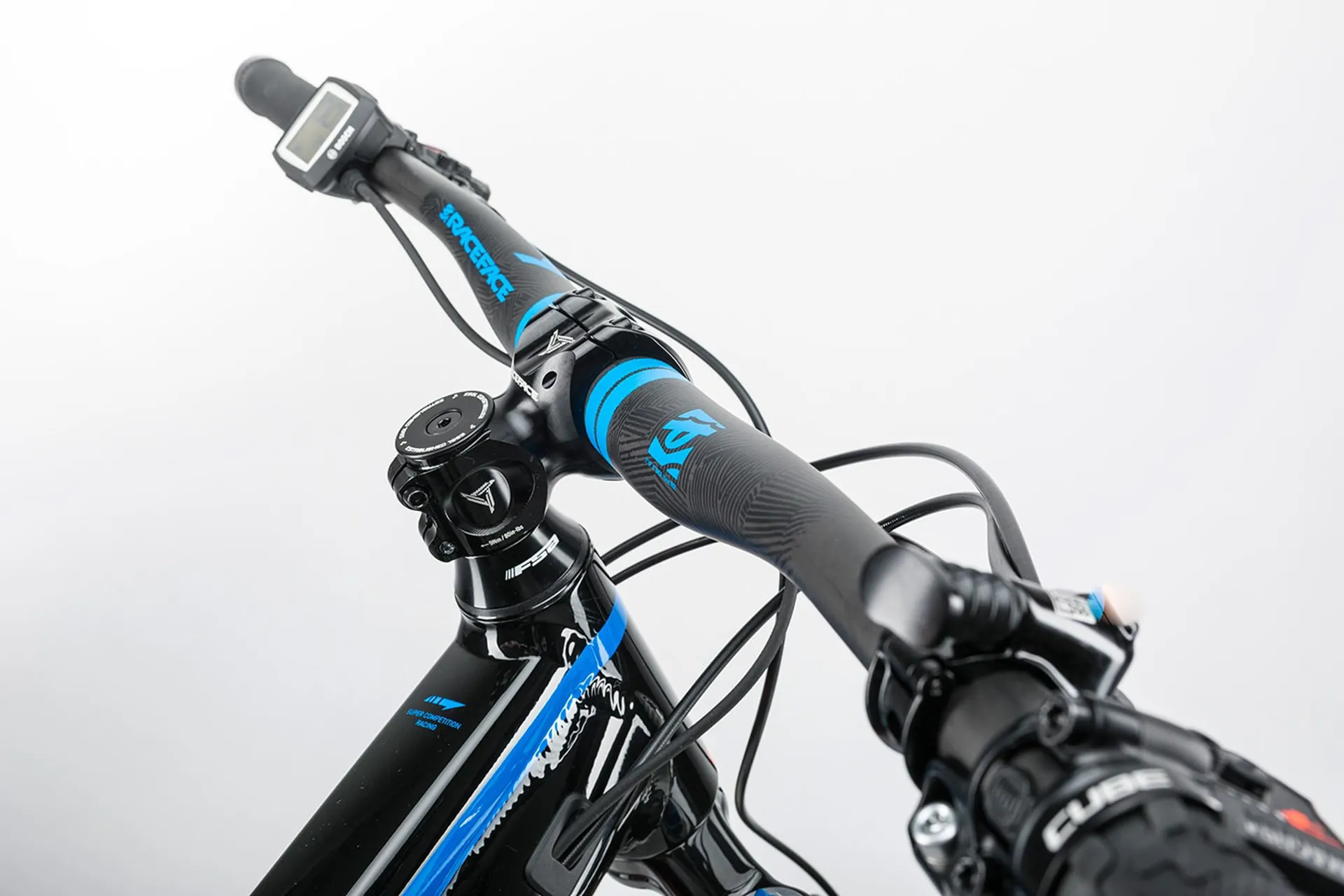

  • STEMRace Face Turbine 35

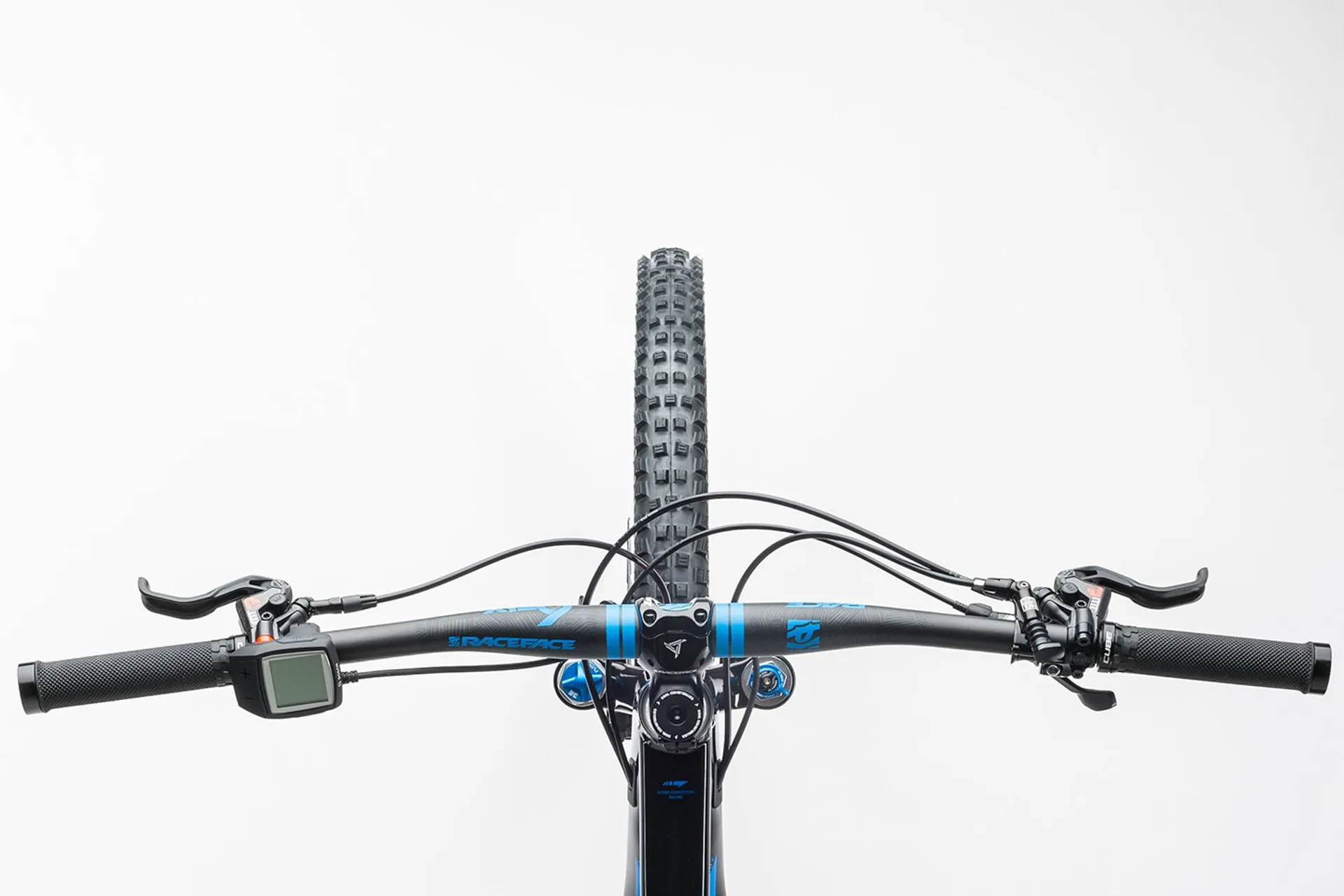

  • HANDLEBARRace Face SixC 35, 800mm
  • GRIPSCUBE Fritzz Grip, 2-Clamp

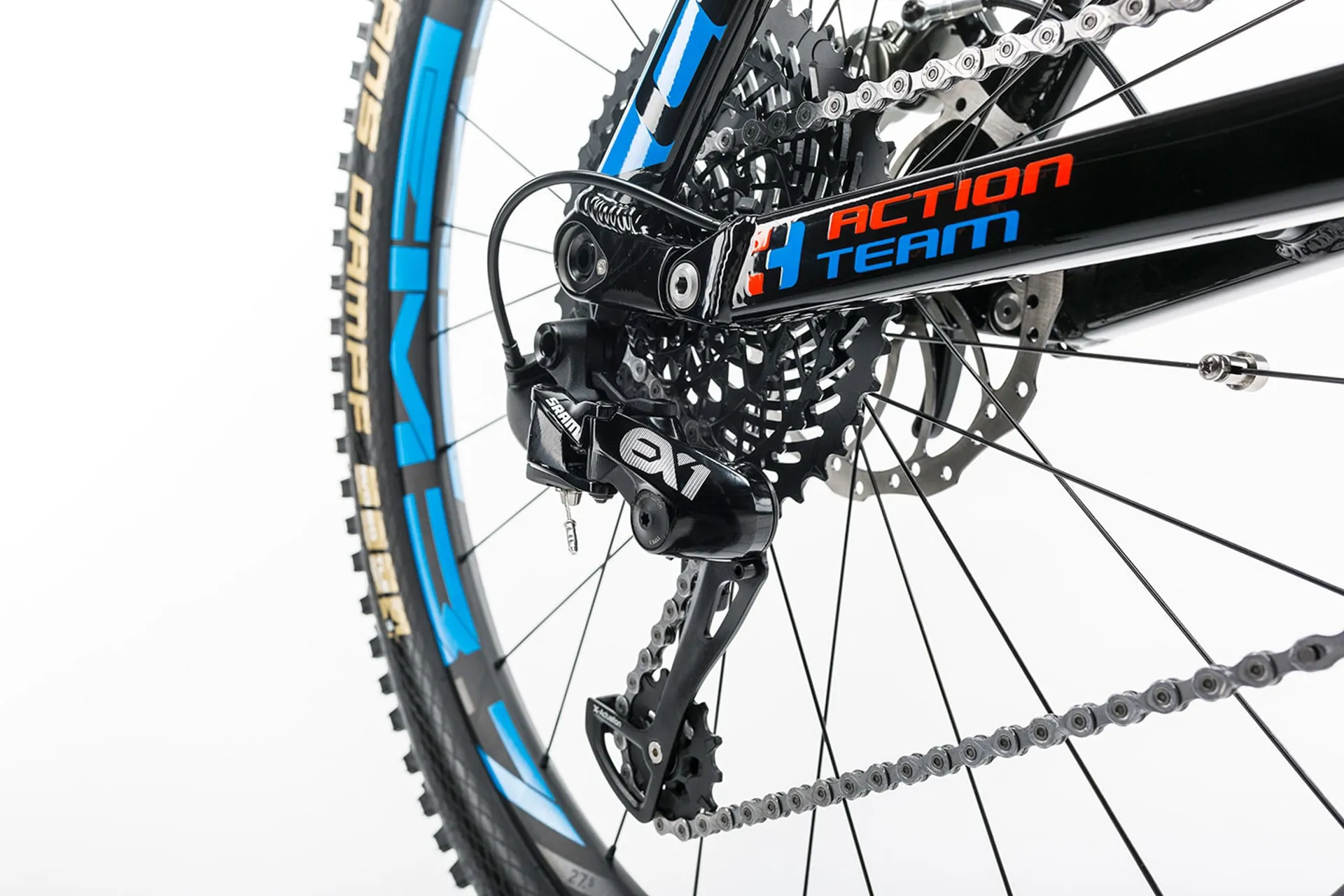

  • REAR DERAILLEURSram EX1, 8-Speed
  • SHIFTERSSram EX1 Trigger
  • BRAKE SYSTEMMagura MT7, Hydr. Disc Brake (203/180)
  • CRANKSETFSA CK-745, 16T
  • CASSETTESram XG-899, 11-48T
  • CHAINKMC X10e
  • WHEELSETDT CSW EM 3.7 Straightpull Wheelset, 28/28 Spokes, 15QR/X12 Boost, Tubeless Ready, DT Swiss Pro Head® Reinforcement System, Squorx® Alloy Nipples
  • FRONT TIRESchwalbe Magic Mary Kevlar 2.35, TrailStar, Tubeless Easy, Super Gravity
  • REAR TIRESchwalbe Hans Dampf Kevlar 2.35, TrailStar, Tubeless Easy, Super Gravity
  • SADDLESelle Italia X1 Trail
  • SEAT POSTRock Shox Reverb Stealth 31.6mm, 440x150mm (390x125mm for smallest frame size)
  • SEATCLAMPCUBE Screwlock, 34.9mm
  • ENGINEBosch Drive Unit Performance CX (75Nm) Cruise (250Watt)

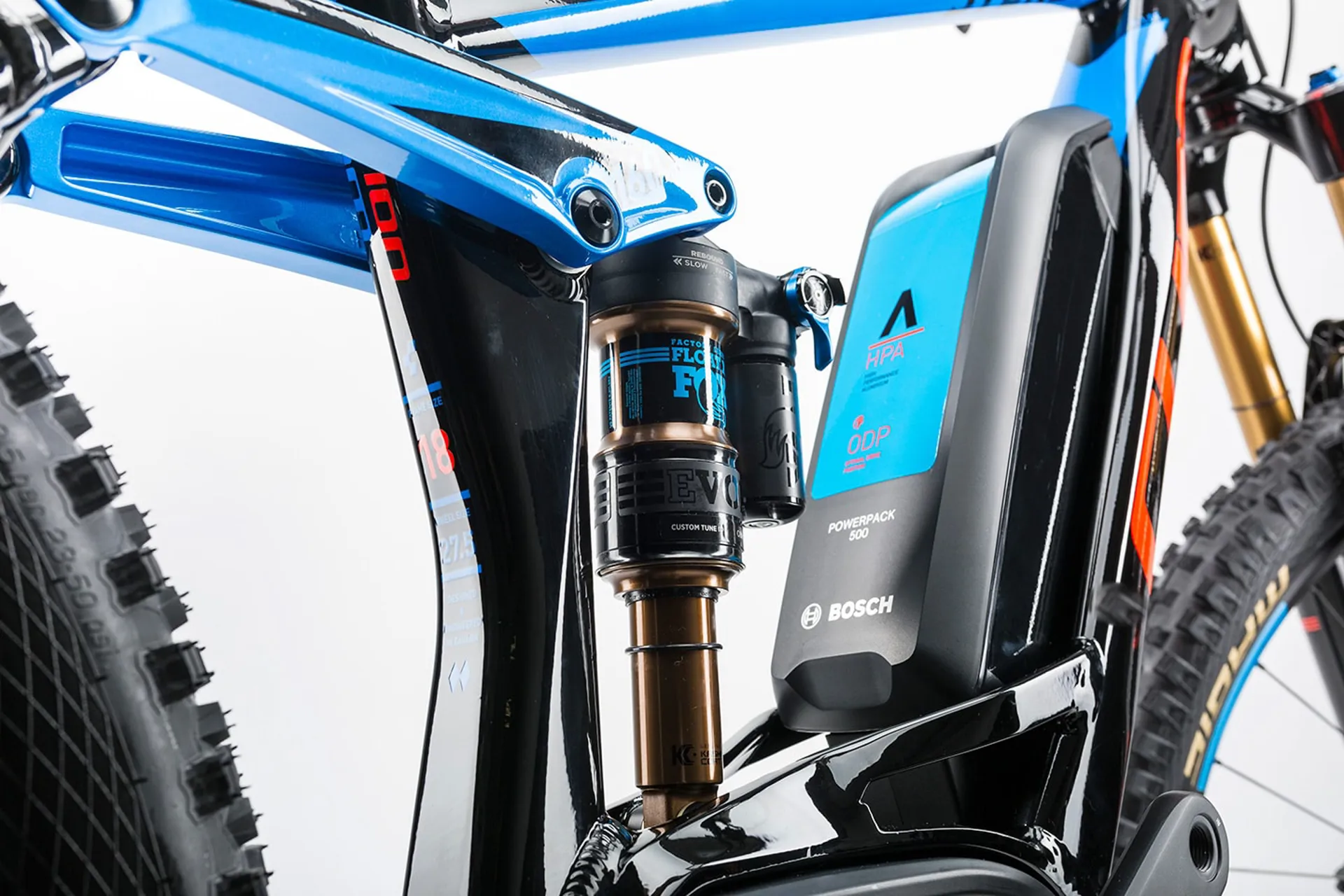

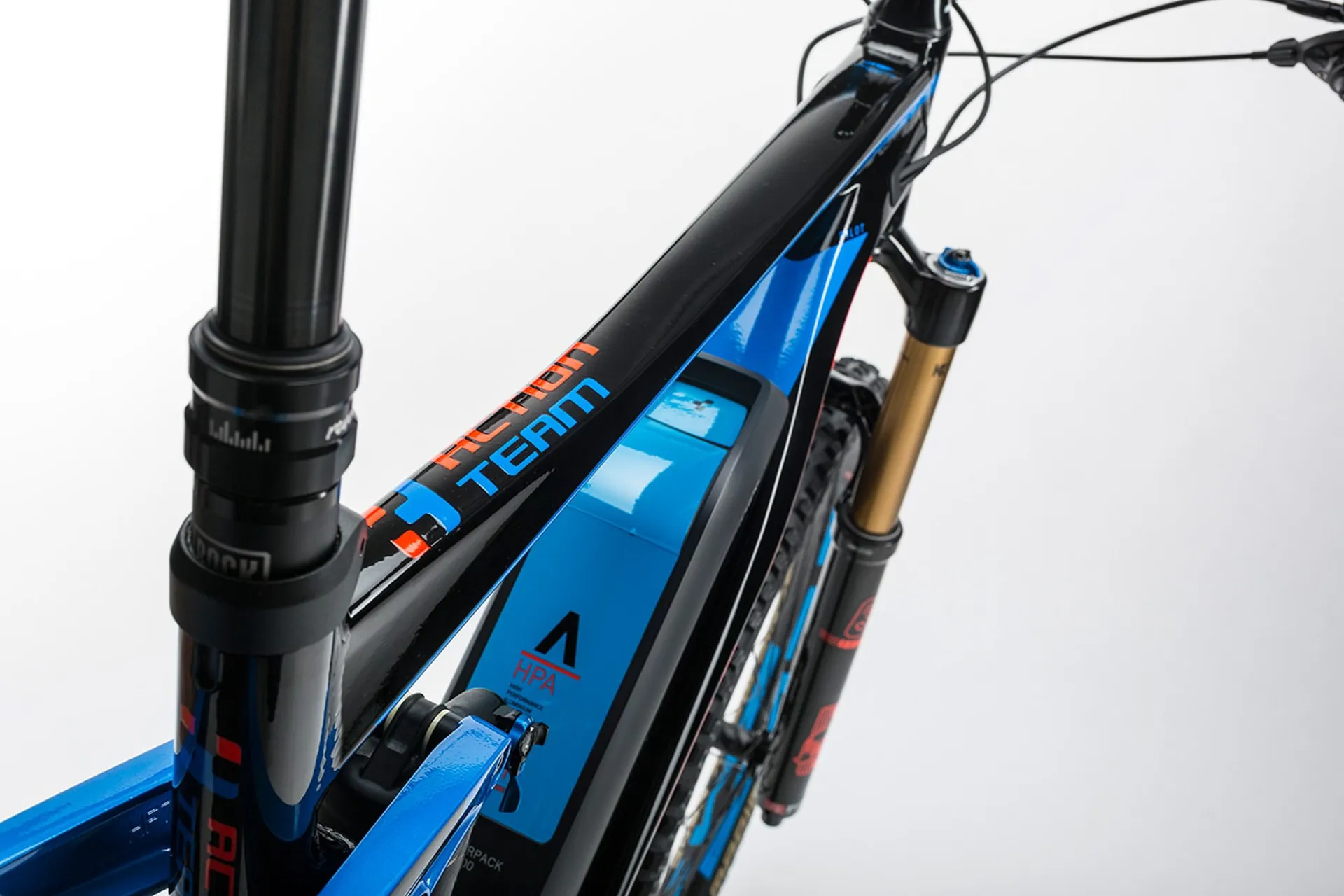

  • BATTERYBosch PowerPack 500
  • Bosch 4A
  • DISPLAYBosch Purion
  • WEIGHT22.8 kg
