The CADEX Tri frameset is designed, engineered and put to the test by the world’s fastest triathletes in a bold quest to push the sport forward.
The CADEX Tri frameset is designed, engineered and put to the test by the world’s fastest triathletes in a bold quest to push the sport forward.
Cadex

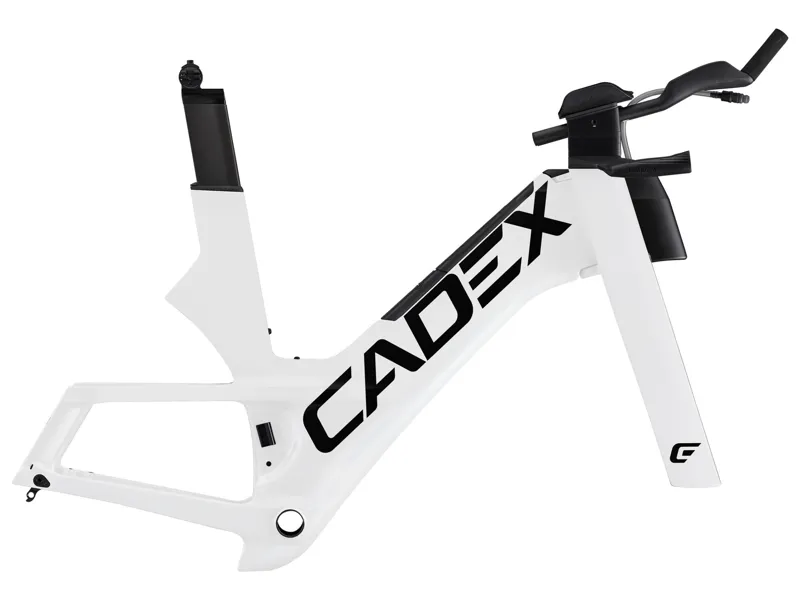

2025 Cadex Tri Frameset - Carbon TimeTrial Frameset - White / Black

£6,499.99
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Cadex Tri Frameset - Carbon TimeTrial Frameset - White / Black

Season:2025

Brand:Cadex

Code:1920001WHT

Unleash race-day speed with the 2025 CADEX Tri Frameset.

Built to redefine triathlon performance, the 2025 CADEX Tri Frameset was developed in partnership with Ironman World Champion Kristian Blummenfelt during his historic Sub7 project—an ambitious effort to complete the Ironman distance in under seven hours. The result is a cutting-edge monocoque frame design featuring wide-set fork legs, horizontal seatstays, and a distinctive oversized down tube that doubles as a fully integrated storage system for race-day hydration and nutrition.

Engineered for aerodynamic supremacy and real-world functionality, this frameset offers extensive fit customization with over 1,000 possible configurations. Its wide range of adjustability allows for quick and precise tuning, giving athletes a truly personalized setup to optimize comfort, power, and speed.

With wind tunnel-tested tube profiles and precision-engineered geometry, the CADEX Tri offers maximum efficiency in every transition and every pedal stroke. Built to perform, built to win—this is the future of triathlon racing.

Available in two sleek colourways—Carbon and White/Black—the 2025 CADEX Tri Frameset is purpose-built for serious triathletes who demand uncompromising performance.

Technical Information
  • Frame
  • Sizes
    XXS (440mm), XS(475mm), S(510mm), M(545mm), L(580mm)
  • Colours
    Carbon
  • Frame
    CADEX Tri Frameset
  • Fork
    CADEX Tri Aero Dual Crown Fork
  • Shock
    N/A
  • Drivetrain and Brakes
  • Brake System
    -
  • Rear Derailleur
    -
  • Front Derailleur
    -
  • Shifters
    -
  • Bottom Bracket
    -
  • Crankset
    Max Chainring Size - 55t
  • Cassette
    -
  • Chain
    -
  • Cockpit
  • Handlebar
    CADEX x Sync Ergonomics extension bars
  • Stem
    -
  • Grips
    -
  • Headset
  • Wheels
  • Front Hub
    -
  • Rear Hub
    -
  • Rim
    -
  • Front Tyre
    Max Tire Clearance 28c
  • Rear Tyre
    Max Tire Clearance 28c
  • Finishing Kit
  • Seatpost
    CADEX Tri Aero Post
  • Saddle
    -
  • Pedals
    Not supplied: Shop pedals here
  • Front Light
    N/A
  • Rear Light
    N/A
  • Kickstand
    N/A
  • Mudguards
    N/A
  • Carrier
    N/A
  • Extras
    N/A
Sizing Information

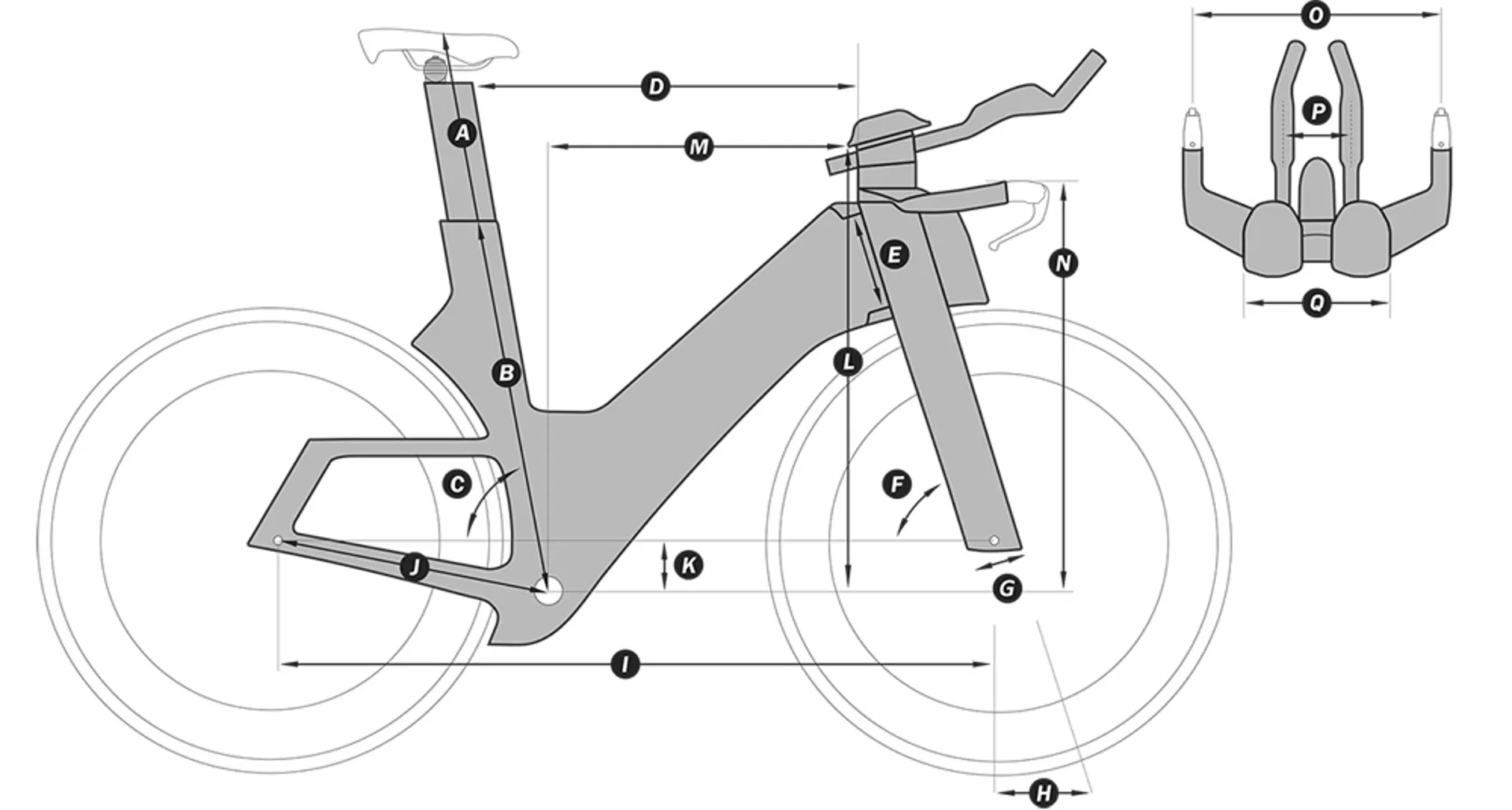

Frame Geometry

XXSXSSML
ASeat Tube Length (mm)440475510545580
BSeat Tube Angle80°80°80°80°80°
CTop Tube Length (mm)475495520550580
DHead Tube Length (mm)7095120145170
EHead Tube Angle71.0°73.0°73.0°73.0°73.0°
FFork Rake (mm)4040404040
GTrail (mm)76.163.363.363.363.3
HWheel Base (mm)968976100510391072
IChain Stay Length (mm)405405405405405
JBottom Bracket Drop (mm)8080777474
KStack (mm)483513533555579
LReach (mm)390405426452478
MStand Over Height (mm)
NHandlebar Width (mm)400400400400400
OStem Length (mm)
PCrank Length (mm)
QWheel Size700c700c700c700c700c
