2024 Giant TCR Advanced SL Disc carbon road frameset with integrated seatpost, OverDrive 2 steerer, and race-tuned geometry—built for elite climbing, stiffness-to-weight efficiency, and disc brake performance.
2024 Giant TCR Advanced SL Disc carbon road frameset with integrated seatpost, OverDrive 2 steerer, and race-tuned geometry—built for elite climbing, stiffness-to-weight efficiency, and disc brake performance.
Giant

2024 Giant TCR Advanced SL Disc Frameset - Incised Black

£2,299.00 £2,899.00 21% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

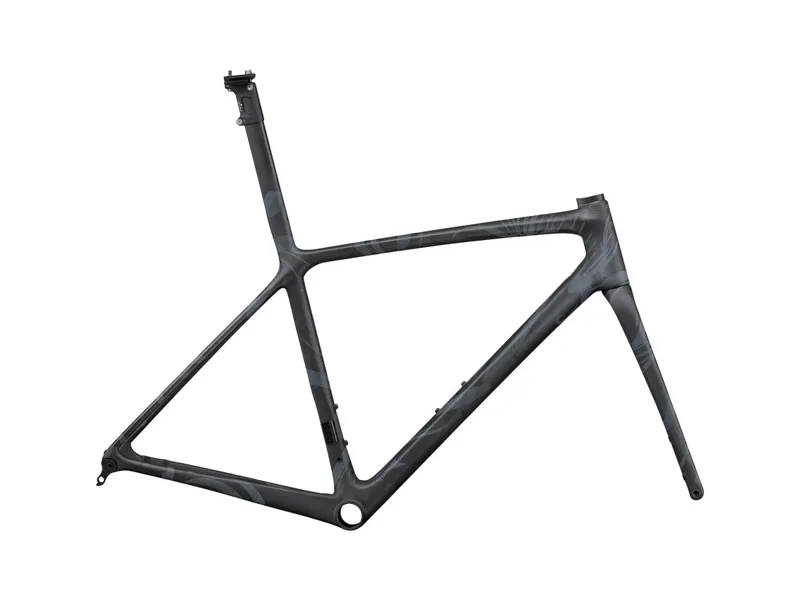

2024 Giant TCR Advanced SL Disc Frameset - Incised Black

Season:2024

Brand:Giant

Code:1913004

Featherweight precision. Race-proven geometry. Built to climb and win.

The 2024 Giant TCR Advanced SL Disc Frameset is the foundation for a world-class road race bike, engineered for riders who demand maximum efficiency, stiffness, and control. Whether you're building a KOM-chasing climber or a responsive all-rounder, this frameset delivers elite-level performance in a sleek Incised Black finish.

Crafted from Advanced SL-grade composite, the frame uses Giant’s most refined carbon layup techniques for minimal weight and maximum torsional stiffness. The integrated seatpost reduces weight and improves aerodynamics, while the OverDrive 2 steerer enhances front-end precision for confident cornering and descending.

Designed exclusively for electronic drivetrains (Di2 and AXS), the frame features internal cable routing, flat-mount disc brake compatibility, and 12mm thru-axles for modern road standards. The full-composite fork complements the frame’s stiffness and compliance balance, making it ideal for aggressive racing and high-performance training.


Feature List

  • Advanced SL-grade composite frame with integrated seatpost
  • Full composite fork with OverDrive 2 steerer
  • Internal cable routing (electronic shifting only)
  • Flat-mount disc brake compatibility
  • 12x142mm rear and 12x100mm front thru-axles

Technical Information
  • Frame
  • Sizes
    Sma;;, Medium, Medium / Large, Large, X-Large
  • Colours
    Incised Black
  • Frame
    Advanced SL-grade composite, integrated seatpost, disc, Di2 and AXS shifting only
  • Max Tyre Clearance
    32mm
  • Forks and Shocks
  • Fork
    Advanced SL-grade composite, full-composite OverDrive 2 steerer, disc
  • Rear Shock
    N/A
  • Cockpit
  • Handlebar
  • Stem
  • Headset
  • Finishing Kit
  • Seatpost
    Advanced SL-grade composite, integrated design, -5/+15mm offset
  • Extras
    Axles, Headset, Computer mount
  • Extras
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
S165 - 175
M171 - 181
ML177 - 187
L183 - 193
XL189 - 199

Frame Geometry


SMMLLXL
ASeat Tube Length (mm)710740770800830
BSeat Tube Angle74.0°73.5°73.0°73.0°72.5°
CTop Tube Length (mm)535550565580600
DHead Tube Length (mm)130145165185200
EHead Tube Angle72.3°73.0°73.0°73.0°73.0°
FFork Rake (mm)4545454545
GTrail (mm)64.059.259.259.259.2
HWheel Base (mm)97798099110061020
IChain Stay Length (mm)405405405405405
JBottom Bracket Drop (mm)7070676767
KStack (mm)528545562581596
LReach (mm)383388393402412
MStand Over Height (mm)725747773800816
NHandlebar Width (mm)400420420440440
OStem Length (mm)90100110110120
PCrank Length (mm)170172172175175
QWheel Size700C700C700C700C700C
