4 different axle lengthsAvailable in four different axle lengths, matched to the individual shoe size and foot position.
Ergonomic and natural foot positioningIn contrast to conventional clipless pedals, the extended axle of the SQlab 511 MTB clipless pedal enables a more physiologically natural foot position. This not only ensures better power transmission to the pedal, but also prevents one-sided strain, especially in the case of problems such as fibula head syndrome.
SPD cleat systemThe mountain bike clipless pedal is compatible with other manufacturers of SPD cleats (e.g. Shimano). The SPD plates enable quick and uncomplicated clicking in and out. The clipless pedal ensures a firm connection between the foot and the pedal, allowing the entire focus to be on the trail. The release hardness can be individually adjusted.
The SQlab 511 MTB clipless pedal is therefore the right choice for anyone who values quality and a well thought-out ergonomic design.

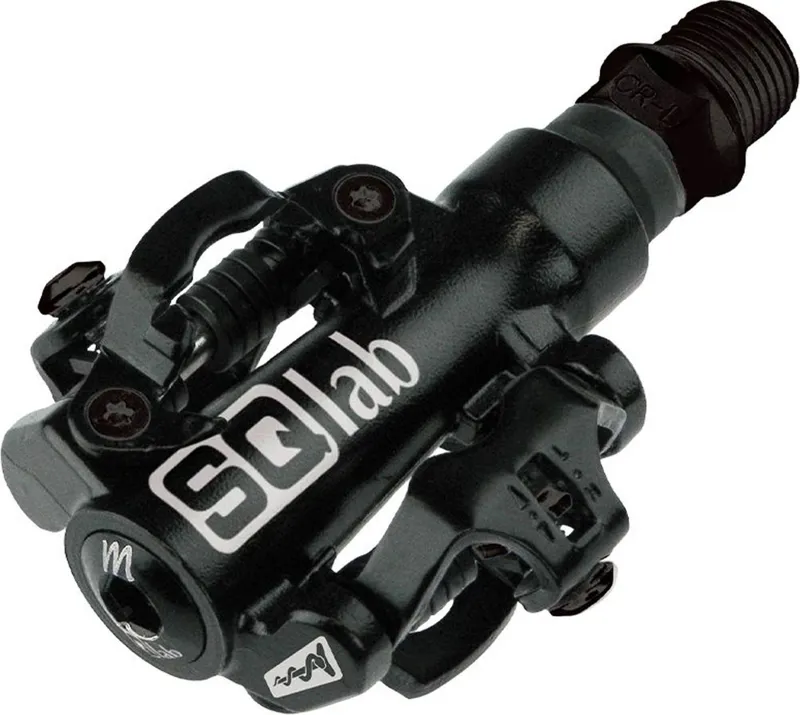

SPECIFICATIONS SQLAB 511 BLACK MTB CLIPLESS PEDALS- AREA OF USE: Marathon & Cross Country
- WEIGHT IN G (PAIR): approx. 310 / 322 / 341 / 367
- AXLE LENGTH IN MM: -5 / 0 / +8 / +15
- DISTANCE CRANK TO PEDAL CENTER IN MM: 47.9 / 54.9 / 61.9 / 68.9
- PEDAL SURFACE IN MM: 65 x 80
- MATERIAL PEDAL BODY: Aluminum
- MATERIAL PEDAL AXLE: CrMo
- CLICK SYSTEM: SPD
- FREEDOM OF MOVEMENT: +/- 15 degrees
- E-BIKE READY: Yes, when not wider than the original pedal
- DIN/ASTM CATEGORIES: 4
