2026 Cube Aim One hardtail mountain bike with 100mm suspension fork, Shimano 2x8 drivetrain, and hydraulic disc brakes—built for confident off-road exploration and everyday trail riding.
2026 Cube Aim One hardtail mountain bike with 100mm suspension fork, Shimano 2x8 drivetrain, and hydraulic disc brakes—built for confident off-road exploration and everyday trail riding.
Cube

2026 Cube Aim One - Aluminium Mountain Bike - Marlin Blue / Reflex

£449.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2026 Cube Aim One - Aluminium Mountain Bike - Marlin Blue / Reflex

Season:2026

Brand:Cube

Code:140130

Trail-ready control. Everyday versatility.

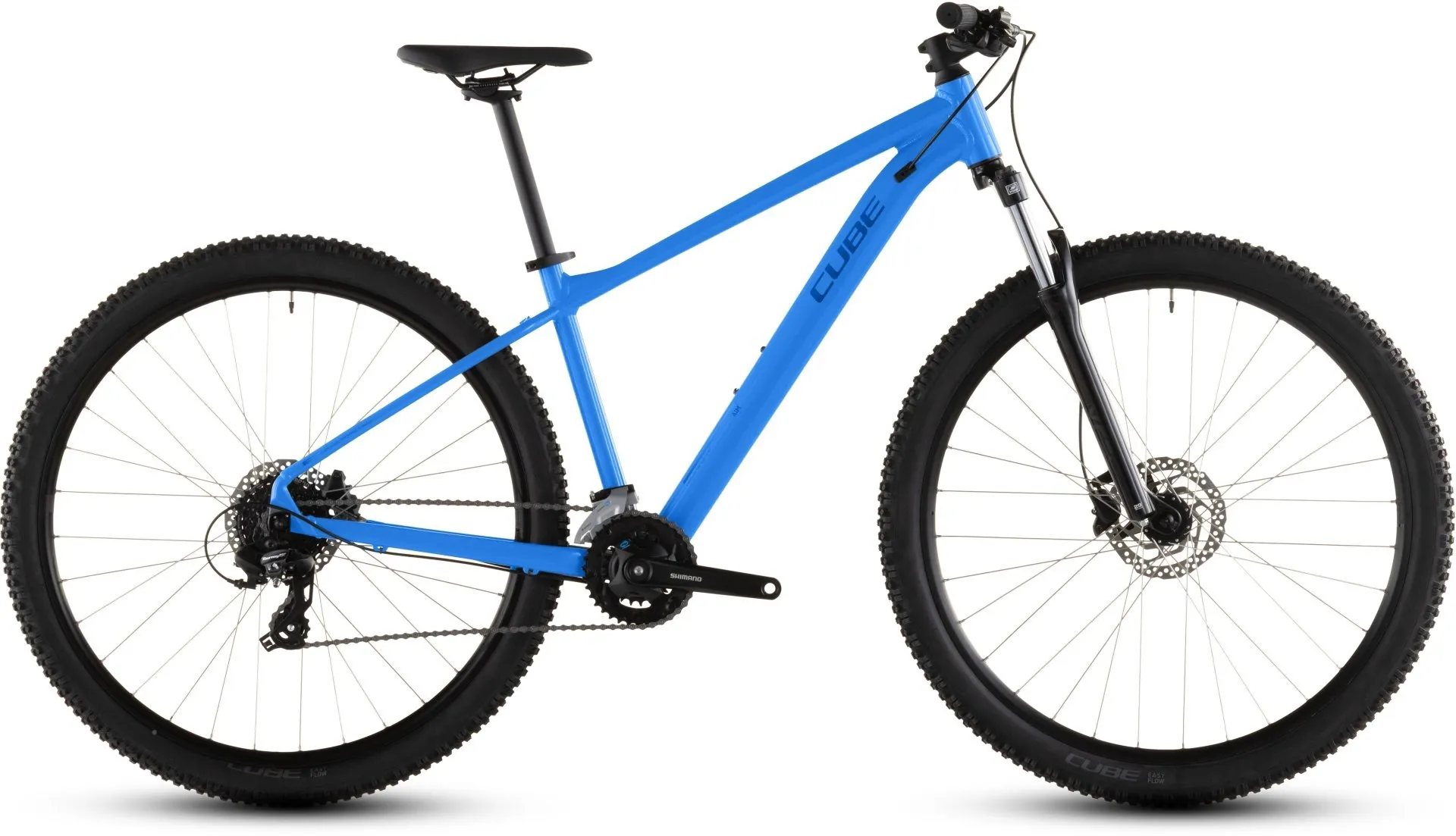

The Cube Aim One is a capable hardtail mountain bike designed for riders who want to explore forest trails, gravel paths, and leisure routes with confidence. Its balanced geometry and Size Split system ensure a comfortable fit for every rider, while the suspension fork and wide tyres offer control and comfort across mixed terrain. Whether you're new to mountain biking or looking for a reliable all-rounder, the Aim One delivers a stable, enjoyable ride.

Built around Cube’s Aluminium Lite frame with Smooth Welded tube junctions and internal cable routing, the Aim One combines sleek looks with practical durability. The SR Suntour XCE fork provides 100mm of travel to smooth out bumps and roots, while Shimano Acera’s 2x8-speed drivetrain offers a wide gear range for climbing and cruising. Hydraulic disc brakes deliver consistent stopping power in all conditions, and Cube’s 2.25” tyres add grip and cushioning on loose surfaces.

With integrated mounts for mudguards, kickstand, and carrier, the Aim One is ready to adapt to your lifestyle—whether you’re commuting, weekend riding, or heading off-road. Its thoughtful geometry includes a lower top tube for easier handling and extra confidence on descents.

Available in four sleek colours — sundowner & Black, Marlin Blue & Reflex, Smoke & Black, and Light Purple & Chrome— the Cube Aim One caters to a variety of colour preferences.


Looking for upgraded components and trail capability?

Step up to the Cube Aim Pro for a lighter fork, improved drivetrain, and enhanced finishing kit—ideal for riders who want more performance and precision on technical terrain.


Feature List

  • Aluminium Lite frame with Smooth Welded junctions
  • SR Suntour XCE suspension fork, 100mm travel
  • Shimano Tourney 2x8-speed drivetrain
  • Shimano MT200 hydraulic disc brakes
  • ACID Pro 25 wheels (27.5" or 29", size-dependent)
  • Cube 2.25” tyres
  • Internal cable routing
  • Mounts for mudguards, kickstand, and carrier
  • Size Split system for rider-specific fit
Technical Information
  • Frame
  • Sizes
    Size Split: 27.5: X-Small, Small // 29: Medium, Large, X-Large
  • Colours
    Sun Downer & Black / Smoke & Black / Marlin Blue & Reflex / Light Purple & Chrome
  • Frame
    Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
  • Forks and Shocks
  • Fork
    SR Suntour XCE, 100mm
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Connectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
  • Rear Derailleur
    Shimano RD-TX800, 8-Speed
  • Front Derailleur
    Shimano FD-M315, Top Swing, 31.8mm Clamp
  • Shifters
    Shimano SL-M315, Rapidfire-Plus
  • Bottom Bracket
    Thun Paso-ML, 73mm BSA
  • Crankset
    Shimano FC-M315, 36x22T, 170mm
  • Cassette
    Shimano CS-HG200, 12-32T
  • Chain
    KMC Z8.3
  • Cockpit
  • Handlebar
    CUBE Rise Trail Bar, 680mm
  • Stem
    CUBE Performance Stem, 31.8mm
  • Grips
    ACID Icon
  • Headset
    CUBE FPH863, Semi-Integrated
  • Wheels
  • Wheelset
    ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
  • Front Tyre
    CUBE MTB, 2.25
  • Rear Tyre
    CUBE MTB, 2.25
  • Max Tyre Clearance
    60mm
  • Finishing Kit
  • Seatpost
    CUBE Performance Post, 27.2mm
  • Saddle
    ACID Venec Lite
  • Pedals
    CUBE PP MTB
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Extras
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Frame Geometry


XSSMLXL
ASeat Tube Length (mm)340370420470515
BSeat Tube Angle74°73.5°73.5°73.5°73.5°
CTop Tube Length (mm)555575595615635
DHead Tube Length (mm)108111111122142
EHead Tube Angle68.5°68.5°68.5°68.5°68.5°
FFork Rake (mm)
GTrail (mm)
HWheel Base (mm)10681082112511461168
IChain Stay Length (mm)427427450450450
JBottom Bracket Drop (mm)5252656565
KStack (mm)595598627637656
LReach (mm)384398409426441
MStand Over Height (mm)707720759792824
NHandlebar Width (mm)680680680680680
OStem Length (mm)5050606070
PCrank Length (mm)170170170170170
QWheel Size27.5"27.5"29"29"29"

Frame Information

XSSMLXL
Length Seat Post350350350350350
Diameter Seat Post27.227.227.227.227.2
Angle Stem
Seat Post Stroke
Rear Suspension Travel
Professional Opinion
  • Aluminium Lite
    There's aluminium, and then there's CUBE Aluminium Lite. This heat-treated 6061 aluminium is stiff, fatigue-resistant and, because of its natural corrosion resistance, a great material from which to make lightweight tube sets – and bicycle frames. And it does all this without adding unnecessary weight, so you can get the best enjoyment out of your CUBE.
  • Size Split
    The right bike should fit you perfectly. That's why we created Size Split. For shorter riders, the smaller 27.5in wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.
  • Kickstand Mount
    A kickstand can be useful, no two ways about it. But if it's going to do its job properly, it needs a secure mount. That's why we put as much effort into designing the Kickstand Mount for our frames as we do for any other feature. Neat, unobtrusive but exceptionally strong and stable, it's the best way to help keep your CUBE bike upright when you're not riding it.

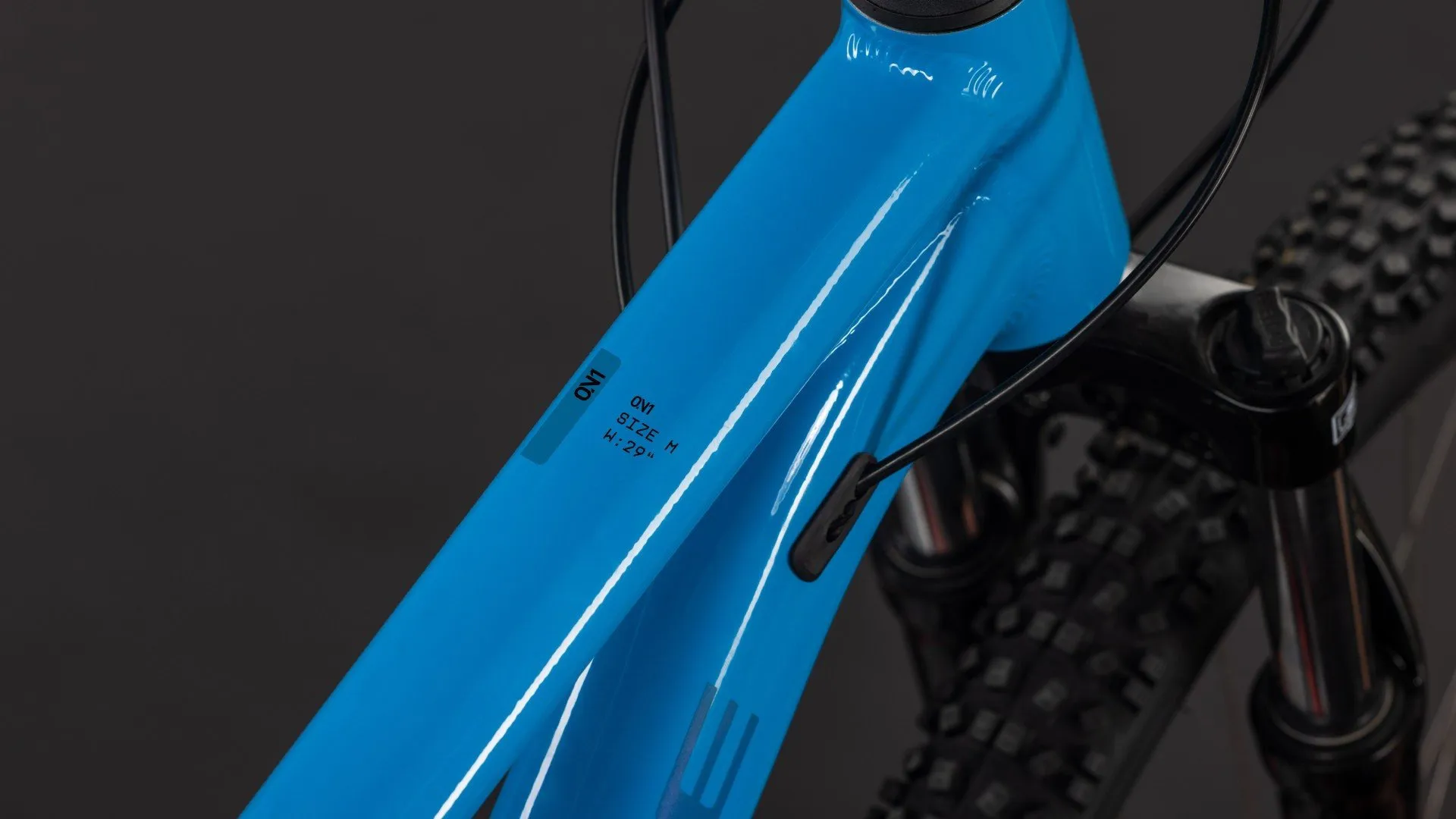

  • Internal Cable Routing
    Cables connect your handlebar controls to vital components like gears and brakes, but there's no need for them to get in your way. With Internal Cable Routing we've reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike's appearance.
  • SIC Mount
    Flexibility is important for a bike that's going to slot into your life. That's why, for our Semi Integrated Carrier Mount, we designed a system that's unobtrusive when you don't need it and really simple to use when you do. By adding our Semi-Integrated Carrier your CUBE can take on the shopping, your commute, or take you further afield at the weekend...

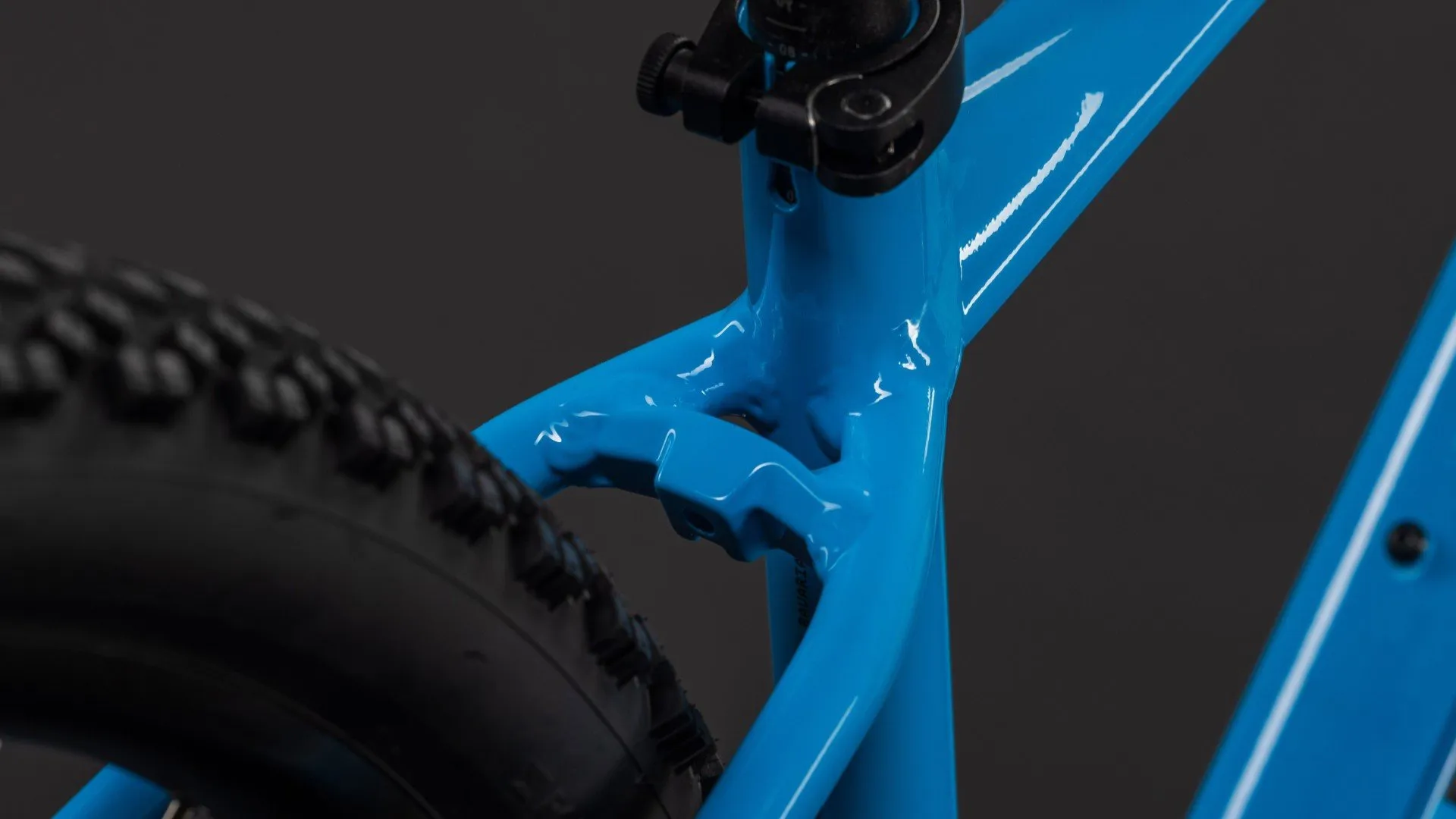

  • Smooth Welding
    Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.
