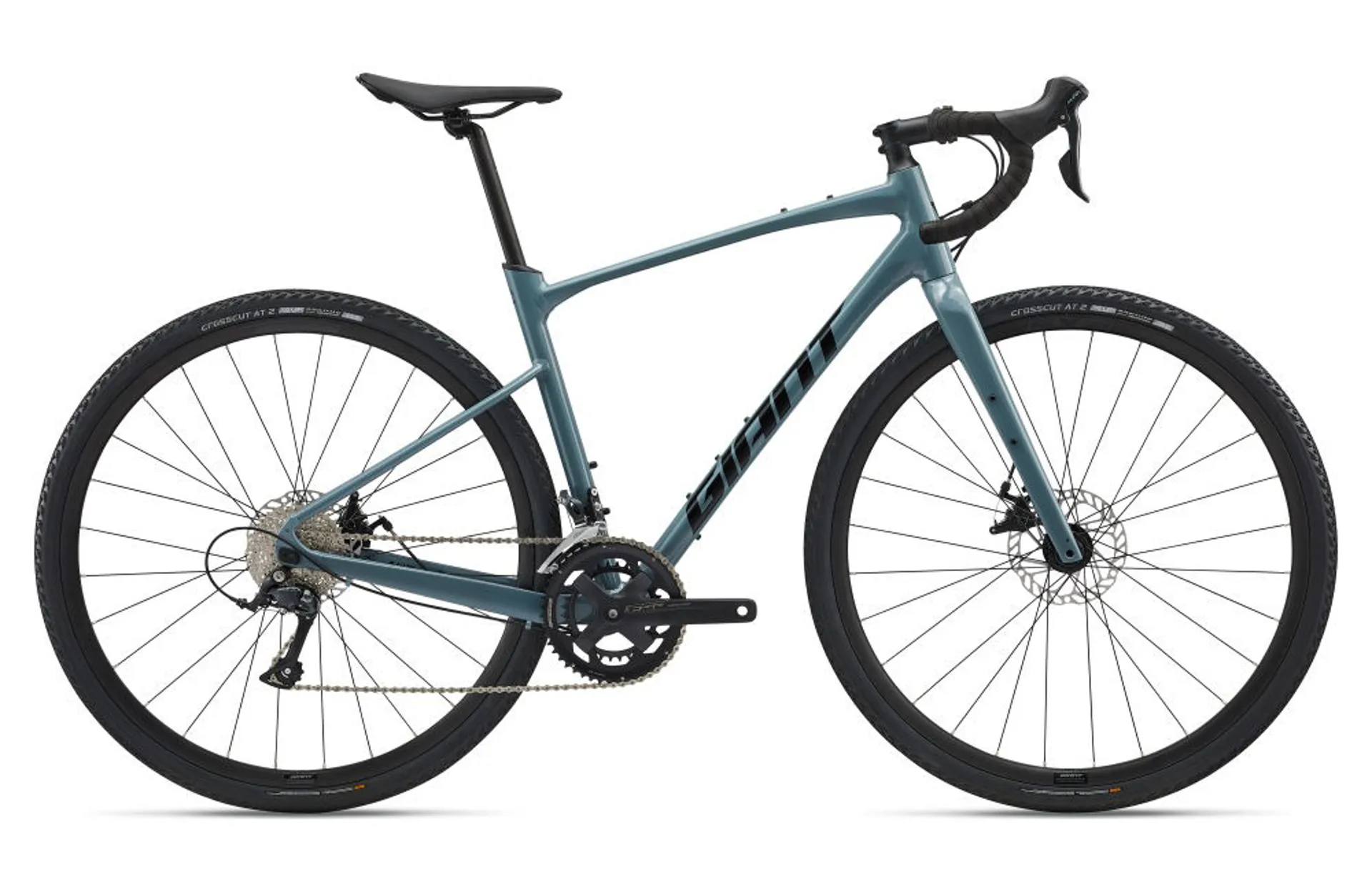

2025 Giant Revolt 2 Gravel Bike - Storm Cloud

Season:2025

Brand:Giant

Code:1079012SC

Versatile. Confident. Ready for adventure.

The 2025 Giant Revolt 2 is a lightweight aluminium gravel bike designed for riders who want to explore beyond the pavement. With its endurance geometry, wide tyre clearance, and reliable components, it’s equally at home on smooth tarmac, gravel tracks, or dirt roads. Choose between an Asphalt Green or Storm Cloud colourway.

The ALUXX-grade aluminium frame is engineered for a responsive yet compliant ride, with dropped seatstays and thin tubing to absorb road shocks and vibrations. The Advanced-grade composite fork with OverDrive steerer improves steering precision while reducing front-end weight.

The Shimano Sora 2x9-speed drivetrain provides smooth, reliable shifting with a wide gear range for climbing and fast flats. Tektro mechanical disc brakes deliver consistent stopping power in all conditions. The Giant S-X2 Disc wheelset is tubeless-ready, paired with 700x38c tyres (clearance up to 45mm) for confident grip and comfort across varied terrain.

The flip chip dropout system allows riders to adjust wheelbase and tyre clearance—short for quicker handling, long for stability and bigger tyres.


Features

  • ALUXX-grade aluminium gravel frame
  • Advanced-grade composite fork with OverDrive steerer
  • Shimano Sora 2x9-speed drivetrain
  • Tektro mechanical disc brakes
  • Giant S-X2 Disc wheelset, tubeless-ready
  • Flip chip adjustable dropout system
  • Tyre clearance: up to 45mm
Technical Information
  • Frame
  • Sizes
    Small, Medium, Medium - Large, Large, X-Large
  • Colours
    Asphalt Green / Storm Cloud
  • Frame
    ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
  • Forks and Shocks
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Connectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    Shimano Sora Levers / Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
  • Rear Derailleur
    Shimano Sora, long cage
  • Front Derailleur
    Shimano Sora, 2x9
  • Shifters
    Shimano Sora, 2x9
  • Bottom Bracket
    Cartridge
  • Crankset
    FSA Vero Pro, 32/48
  • Cassette
    Shimano HG400, 11x34
  • Chain
    KMC X9 with Missing Link
  • Cockpit
  • Handlebar
    Giant Contact XR Ergo-Control, 31.8mm
  • Stem
    Giant Sport, 8-degree
  • Grips
  • Headset
  • Wheels
  • Front Hub
    Giant alloy, 12mm thru-axle
  • Rear Hub
    Giant alloy, 12mm thru-axle
  • Rims
    Giant S-X2 Disc wheelset, alloy, 25mm inner rim width
  • Front Tyre
    Giant CrossCut AT 2, 700x38c, tubeless
  • Rear Tyre
    Giant CrossCut AT 2, 700x38c, tubeless
  • Max Tyre Clearance
    53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
  • Finishing Kit
  • Seatpost
    Giant D-Fuse, alloy, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    Not supplied: Shop pedals here
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Extras
    Factory tubeless set up, SRAM Wide 2x 43-30, 1x 46T. SRAM Road 2x 52-39, 1x 52T. Shimano Road 2x 52-36. Shimano GRX 2x 48-31, 1x 42T
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
XS155 - 166
S159 - 171
M169 - 181
ML174 - 186
L179 - 191
XL189 - 200

Frame Geometry


XSSMMLLXL
SHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONG
ASeat Tube Length (mm)430450470490510530
BSeat Tube Angle74.0°73.5°73.5°73.0°73.0°73.0°
CTop Tube Length (mm)540550560575585600
DHead Tube Length (mm)125135150165180195
EHead Tube Angle70.0°71.0°71.5°72.0°72.0°72.0°
FFork Rake (mm)505050505050
GTrail (mm)78.0|82.072.0|75.068.0|72.065.0|68.065.0|68.065.0|68.0
HWheel Base (mm)1029|10391025|10351030|10401035|10451045|10551061|1071
IChain Stay Length (mm)430|440430|440430|440430|440430|440430|440
JBottom Bracket Drop (mm)80|8180|8180|8180|8180|8180|81
KStack (mm)556570586602616630
LReach (mm)381381387391397407
MStand Over Height (mm)717|724734|741752|759769|776786|793801|810
NHandlebar Width (mm)420420440440460460
OStem Length (mm)506070808090
PCrank Length (mm)170170172.5172.5175175
QWheel Size700C700C700C700C700C

Frame Information

XSSMLXL
Length Seat Post350350350350350
Diameter Seat Post27.227.227.227.227.2
Angle Stem
Seat Post Stroke
Rear Suspension Travel
Professional Opinion
  • ALUXX Aluminium
    This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
  • D-Fuse Technology
    The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
  • Flip Chip - Dropout
    Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
  • Overdrive
    Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
  • Tubeless System
    Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
