The second generation of the Arcus has become more refined without loosing any of its original practical charm.
The second generation of the Arcus has become more refined without loosing any of its original practical charm.
Ridgeback

Ridgeback Arcus 1 - Electric Hybrid Bike - Grey

£1,299.00 £1,499.99 13% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Ridgeback Arcus 1 - Electric Hybrid Bike - Grey

Brand:Ridgeback

Code:VARRB21910

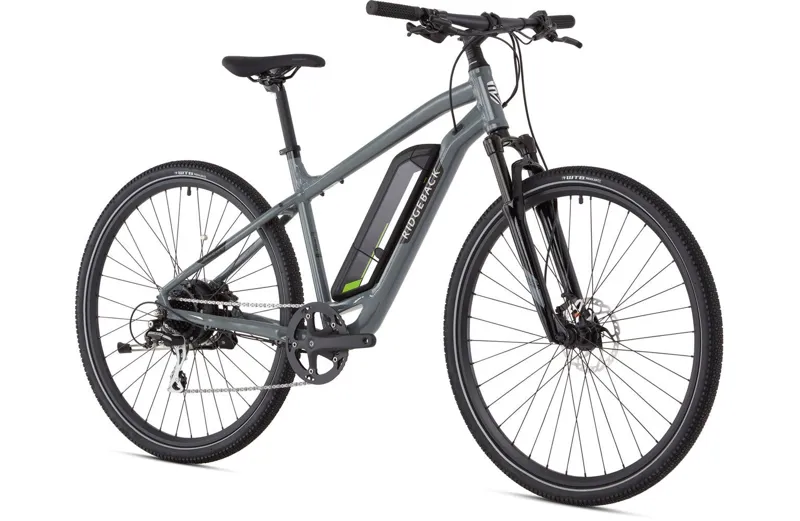

The Ridgeback Arcus 1 is an affordable and rugged E-bike, built for a comfortable ride on road and gravel.

The Sportdrive M155 motor offers 250 watts of pedal assist and up to 40nm of torque, all the way up to 25km/h making climbs disappear and maintaining momentum on flatter roads.

A suspension fork with 63mm of travel is paired with wide 45mm tyres to provide comfort over rough roads, and the capability to head off the beaten track on towpaths and gravel tracks.

Hydraulic disc brakes keep everything under control in this great value package.

Technical Information
  • Frame
  • Sizes
    Small, Medium, Large
  • Colours
    Grey
  • Frame
    Alloy
  • Forks and Shocks
  • Fork

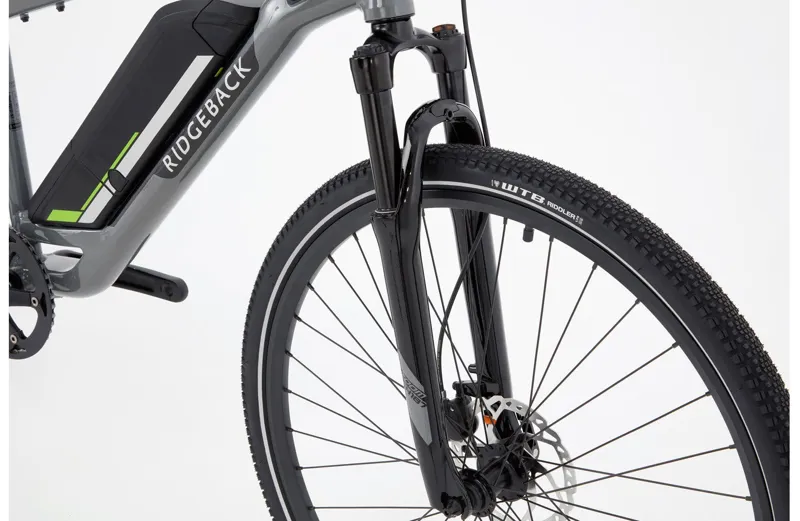

    RST Volant 63mm Travel
  • Rear Shock
    N/A
  • eSystem
  • Motor
    Sportdrive M155 250W 40Nm
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    Sportdrive 313wh
  • Battery Integration
    External
  • Conectivity
    N/A
  • Charger
    Sportdrive 2AH
  • Drivetrain and Brakes
  • Brake System
    Alhonga AHJ-OD05 Hydraulic Disc Brake
  • Rear Derailleur
    microSHIFT Mezzo RDM36L 8 Speed
  • Front Derailleur
    N/A
  • Shifters
    microSHIFT SL-R758 8-speed
  • Bottom Bracket
  • Crankset
    Sportdrive 42T / 170 mm
  • Cassette
    microSHIFT Mezzo CSH082 11-34T 8 Speed
  • Chain
    KMC X8E
  • Cockpit
  • Handlebar
  • Stem
    Alloy 65 mm +9deg
  • Grips
    Ridgeback Grips
  • Headset
    FSA HS NO.10 1-1/8 inch
  • Wheels
  • Front Hub
    KT-TC7F
  • Rear Hub

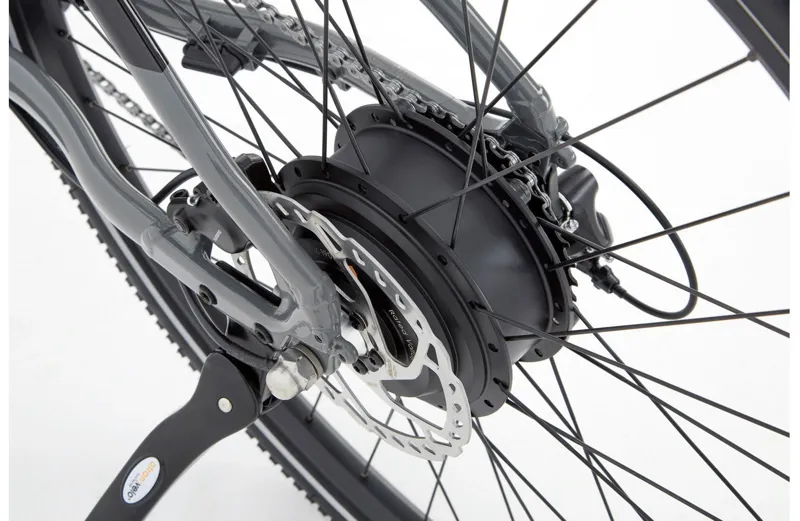

    Sportdrive M155
  • Rim
    Alloy J19SZ
  • Front Tyre

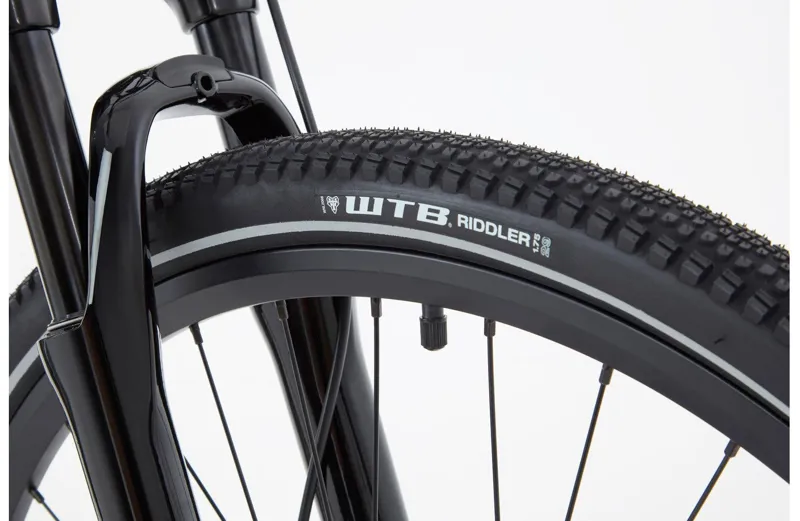

    WTB Riddler 700 x 45c Reflex
  • Rear Tyre
    WTB Riddler 700 x 45c Reflex
  • Finishing Kit
  • Seatpost
    Alloy 27.2 x 350 mm

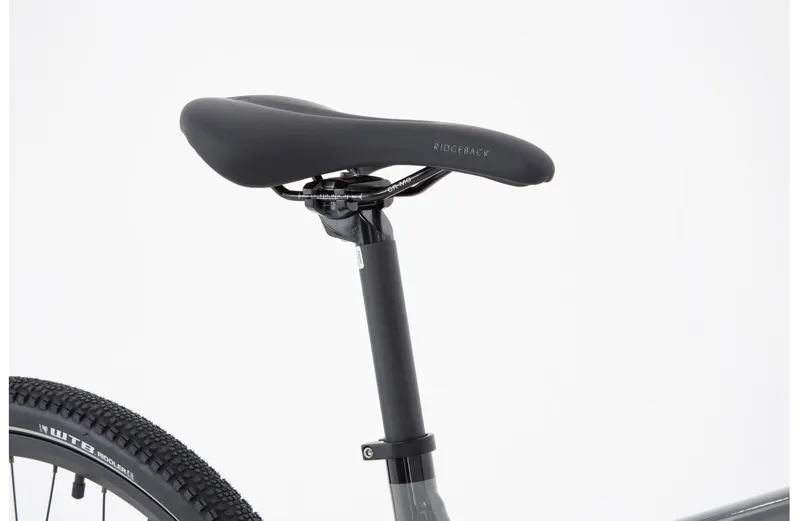

  • Saddle
    Ridgeback
  • Pedals
    Resin Metro
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
