Cube Compact Hybrid 545 E-Hybrid Bike in Rust Orange

Season:2026

Brand:Cube

Code:11831020

Getting from A to B can be fun and accessible for everyone – and here's the proof.

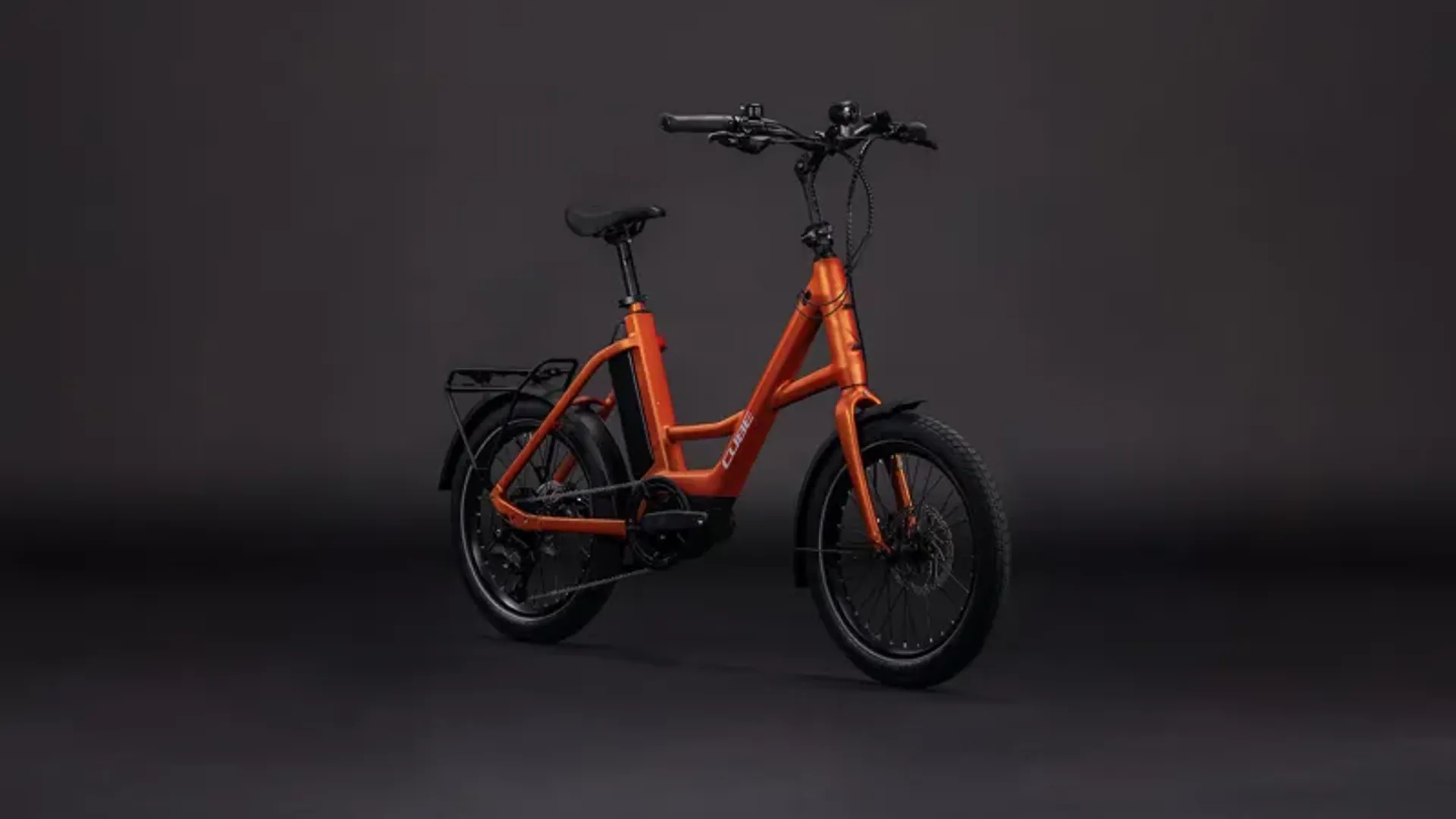

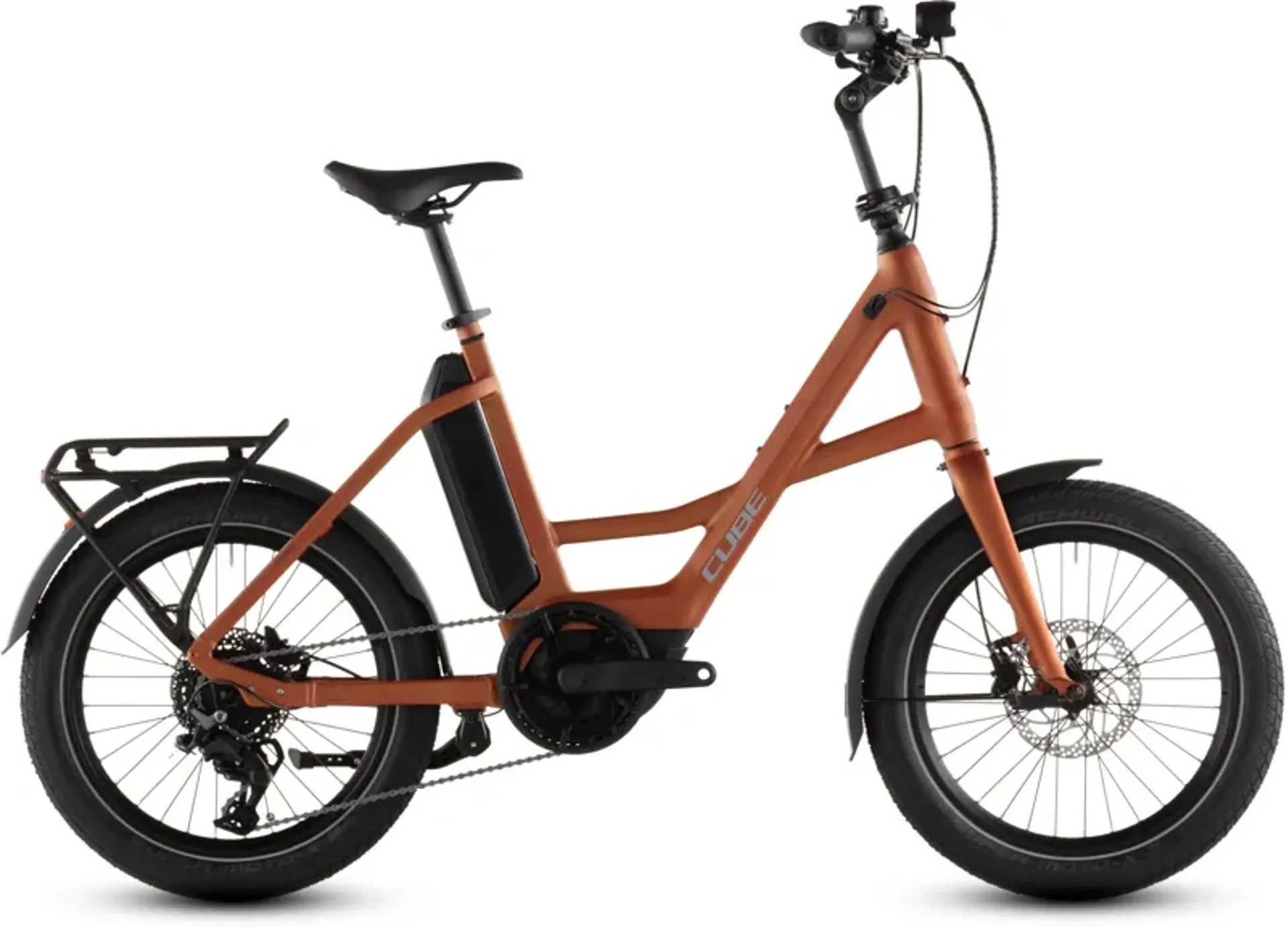

The Compact Hybrid's rugged, easy step-through design fits riders of all sizes and is easy to store and transport. Bosch's powerful Performance drive unit – with Smart System and 545Wh battery – takes the sweat out of everyday riding, while Shimano's wide-ranging and reliable 10-speed Cues gears make light work of any route. Powerful hydraulic disc brakes ensure you can stop safely in all weathers. And the lighting system, mudguards, luggage carrier and kickstand ensure that the Compact Hybrid will slot easily into your life.

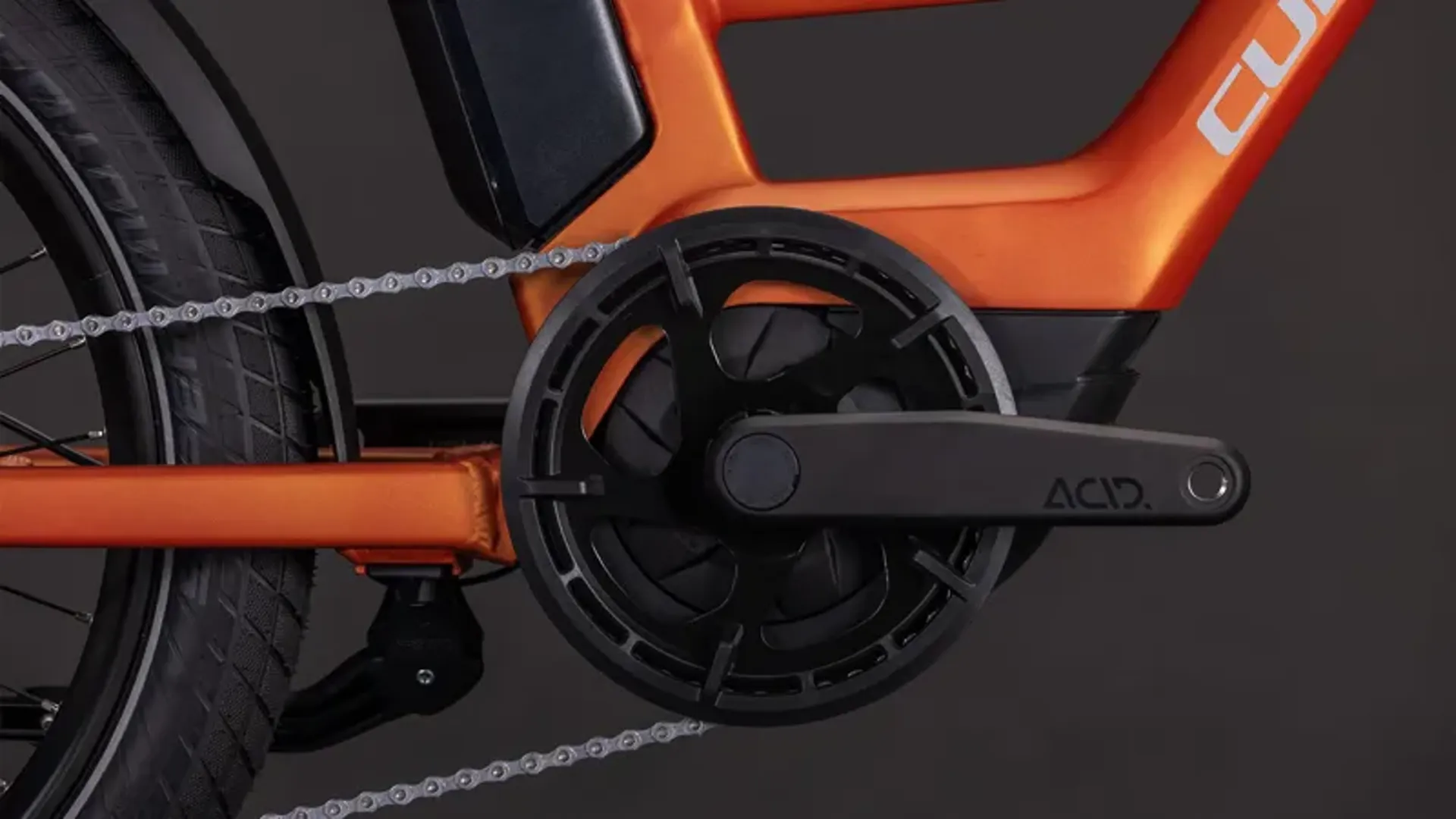

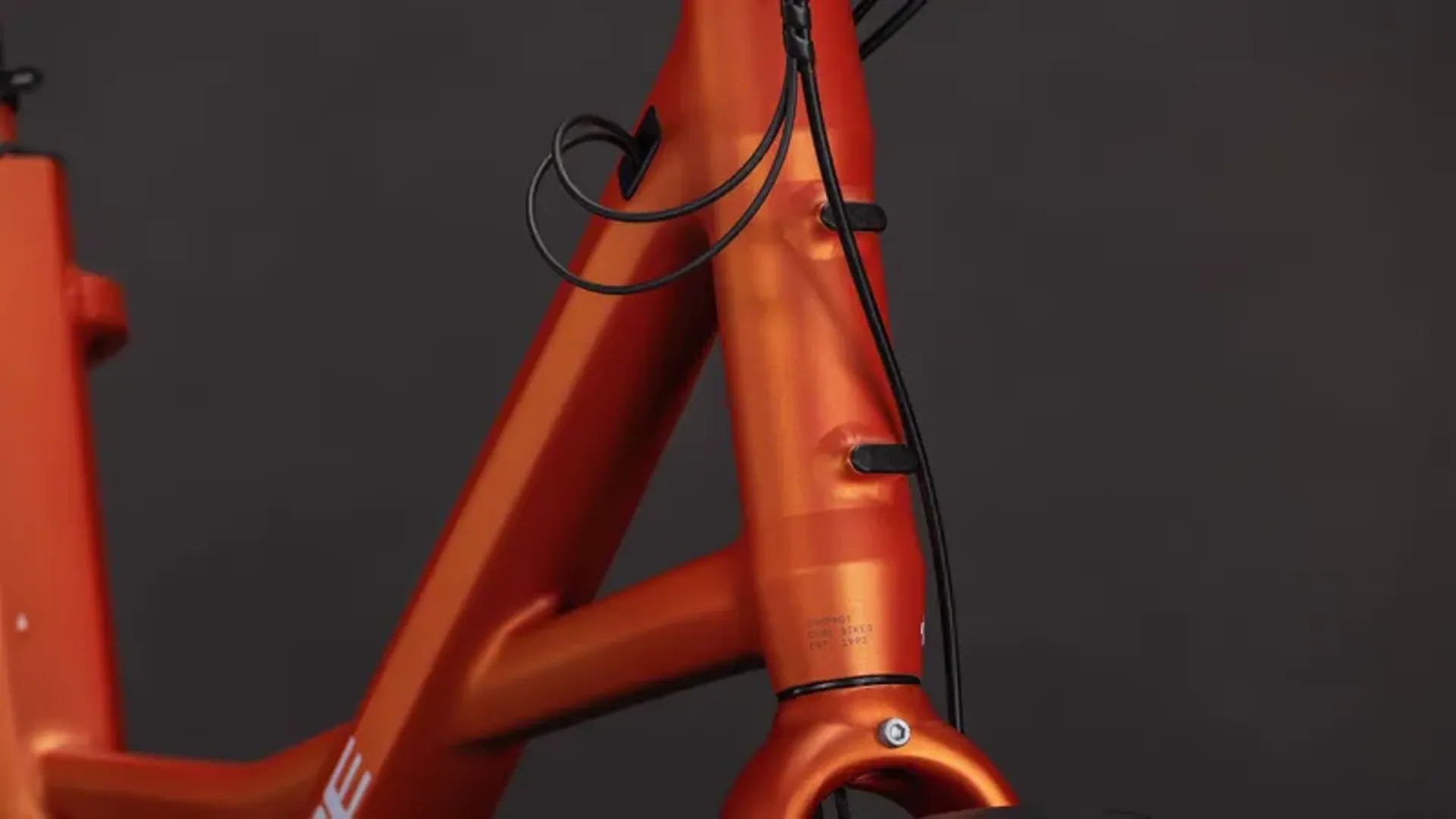

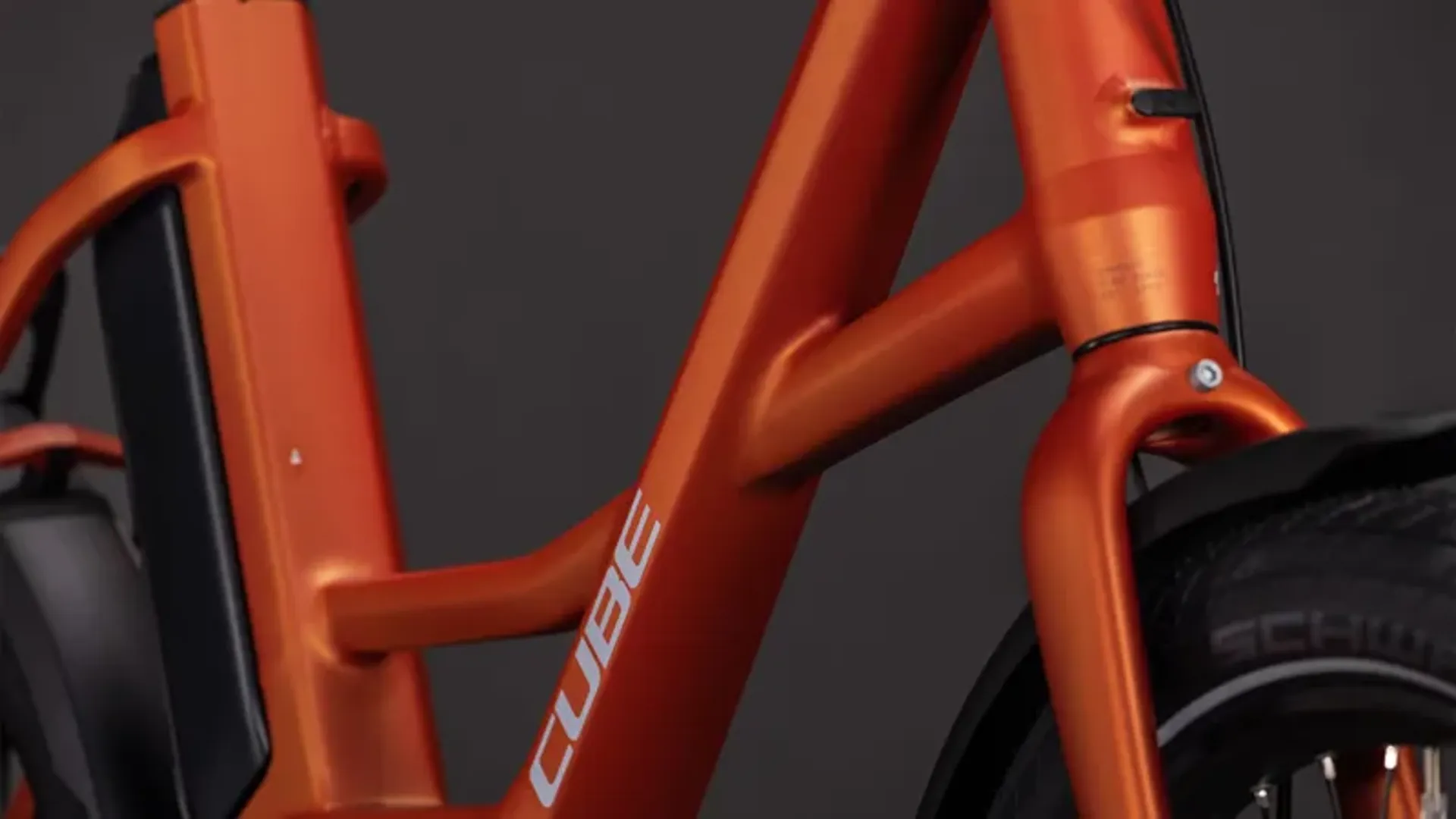

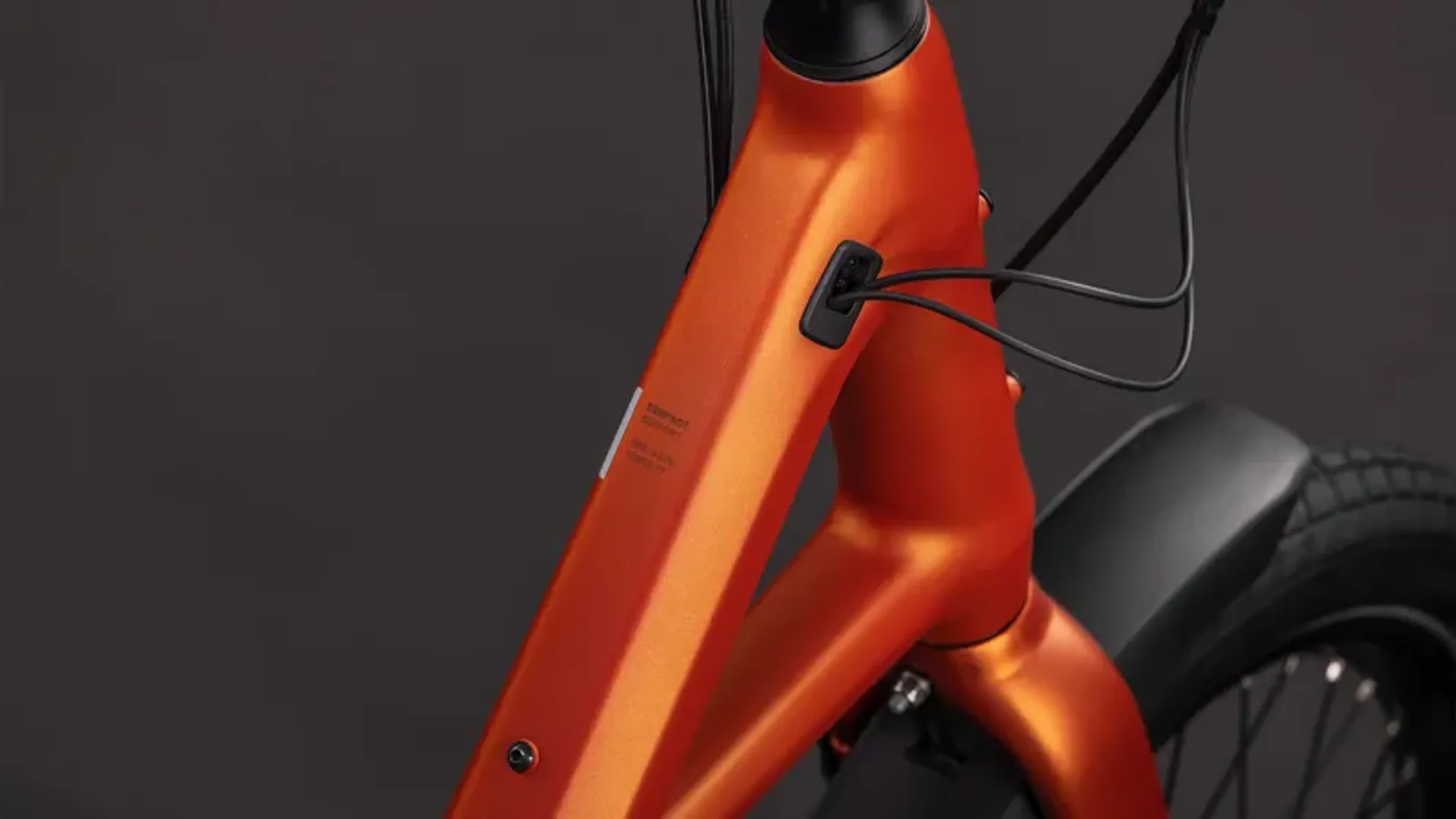

CUBE knows that the simplest solutions are often the best. The Compact Hybrid's cross-braced down tube is elegant, stiff and strong. It also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle. There's a long head tube for accurate, safe steering. The smooth and powerful Bosch Performance drive unit lives in a custom housing at the bottom of the frame, with the 545Wh battery tucked out of the way of both luggage and rider. Bosch's Smart System also gives you complete control, accessed via the eBike Flow app. Quick and easy saddle and handlebar adjustments allow one bike to fit the widest possible range of riders. And the front luggage carrier increases carrying capacity and adds even more versatility.

Technical Information
  • Frame
    Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout
  • Semi Integrated Carrier
    Yes
  • Front Carrier Ready
    Yes
  • High Performance Aluminium
    Yes
  • Comfort Ride Geometry
    Yes
  • One Size Concept
    Yes
  • X-Connect
    Yes
  • Size
    One Size
  • Rigid fork
    Aluminium Rigid Fork, 20"
  • Drive unit
    Bosch Drive Unit Performance Line 75Nm (BDU34)
  • Remote
    Bosch Purion 200 with Integrated Display
  • Battery
    Bosch PowerPack 545
  • Charger
    Bosch 2A
  • Brake system
    Shimano BR-MT200, Hydr. Disc Brake (180/160)
  • Rear derailleur
    Shimano Cues RD-U4010, 9-Speed
  • Shifters
    Shimano Cues SL-U4010, Rapidfire-Plus
  • Crankset
    ACID Trekking Hybrid, 44T
  • Cassette
    Shimano Cues CS-LG300, 11-36T
  • Chain
    KMC eGlide
  • Headset
    Cube H835D3, Semi-Integrated, Sealed bearing
  • Stem
    BySchulz Speedlifter Twist Pro SDS T15

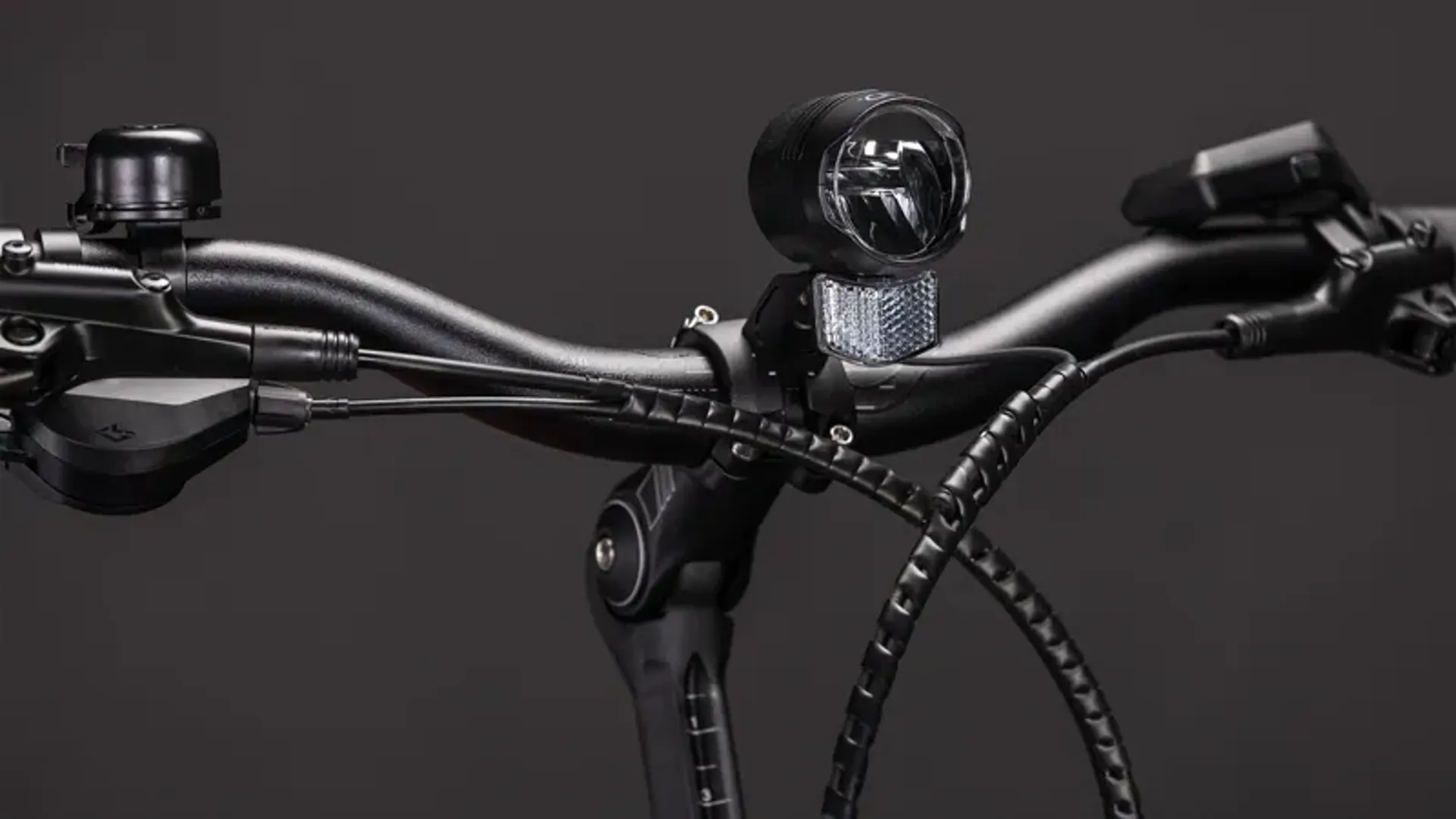

  • Handlebar
    CUBE Comfort Trail Bar, 680mm
  • Grips
    ACID Travel Comfort
  • Rims
    ACID EX30, 32H, Disc, Tubeless Ready
  • Front hub
    Shimano HB-QC300, QR, Centerlock
  • Rear hub
    Shimano FH-QC300-HM, QR, Centerlock
  • Tyres
    Schwalbe Super Moto-X, Double Defense, 62-406
  • Saddle
    ACID Sequence Pro 160
  • Seat post
    Newmen Evolution, 27.2mm
  • Pedals
    ACID PP Trekking
  • Front light
    ACID Front Light PRO-E 60 X-Connect, 12V, DC
  • Rear light
    ACID Mudguard Rear Light PRO-E, 12V, DC
  • Kickstand
    CUBE CenterStand
  • Mudguards
    ACID 75, BB-Mount
  • Bell
    Easy Bell

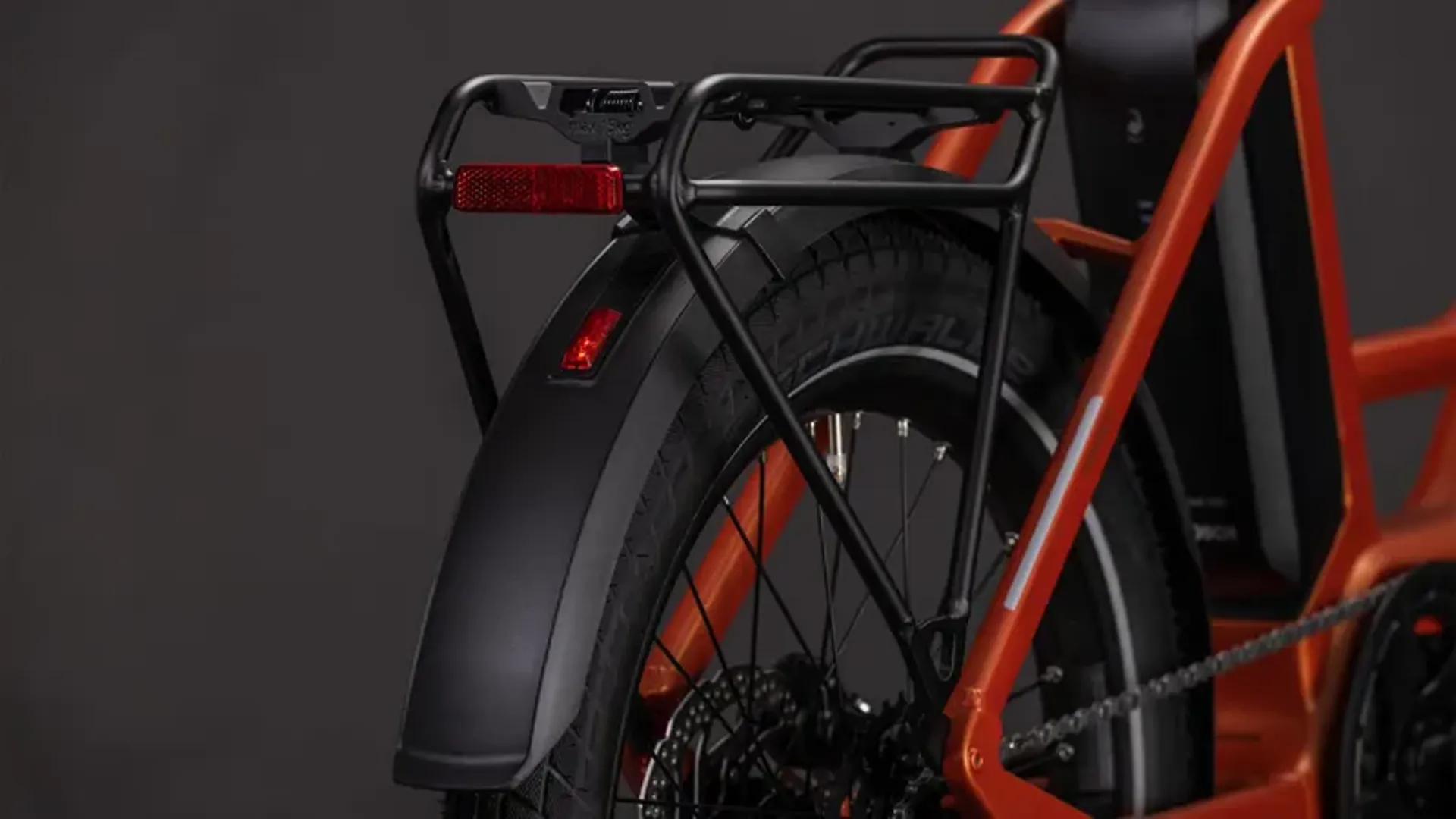

  • Carrier
    ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible
  • Weight
    23,4 kg
