The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails.
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails.
Cube

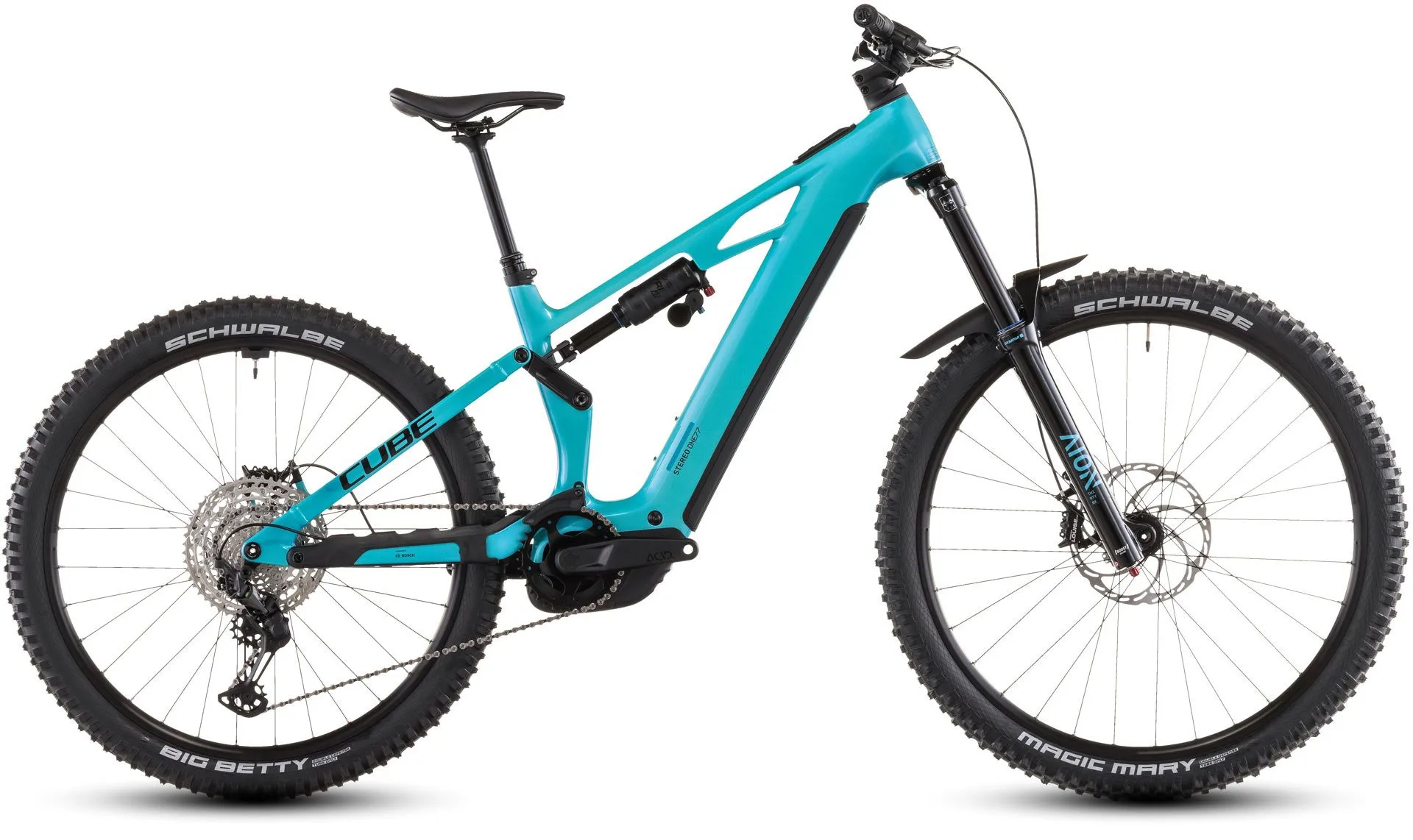

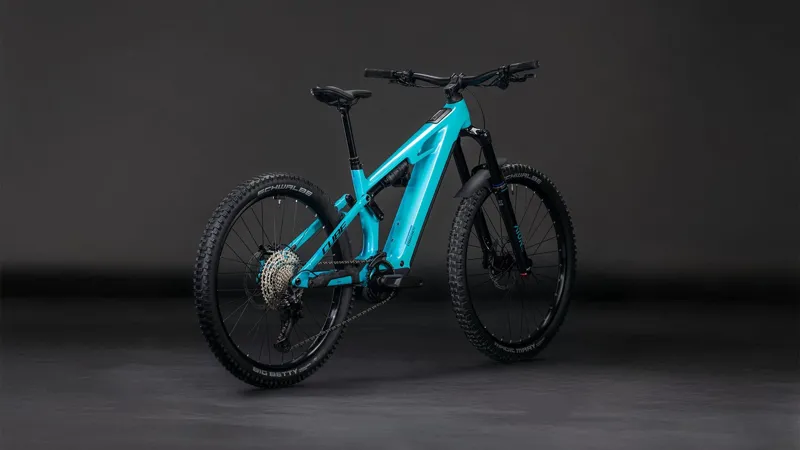

2026 Cube Stereo Hybrid one77 HPC Race 800 - Full Suspension eBike - Swimming Pool / Black

£3,999.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
2026 Cube Stereo Hybrid one77 HPC Race 800 - Full Suspension eBike - Iron Grey / Black 2026 Cube Stereo Hybrid one77 HPC Race 800 - Full Suspension eBike - Willow Green / Black
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2026 Cube Stereo Hybrid one77 HPC Race 800 - Full Suspension eBike - Swimming Pool / Black

Season:2026

Brand:Cube

Code:103120

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

Big riding ambitions need a bike to match. The Stereo Hybrid ONE77 HPC Race combines CUBE carbon frame tech with Bosch power, advanced kinematics and a mullet set-up to make a machine that devours rowdy big mountain lines for breakfast, then comes back for seconds...

You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the detail. The Bosch CX drive and 800Wh PowerTube battery work with Shimano's XT 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Louise hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Triair 2CR piggyback shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you'll take back down the mountain.

Technical Information
  • Frame
  • Sizes
    Small / Medium / Large / X-Large
  • Colours
    Iron Grey / Black - Willow Green / Black - Swimming Pool / Black
  • Frame
    C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
  • Forks and Shocks
  • Fork

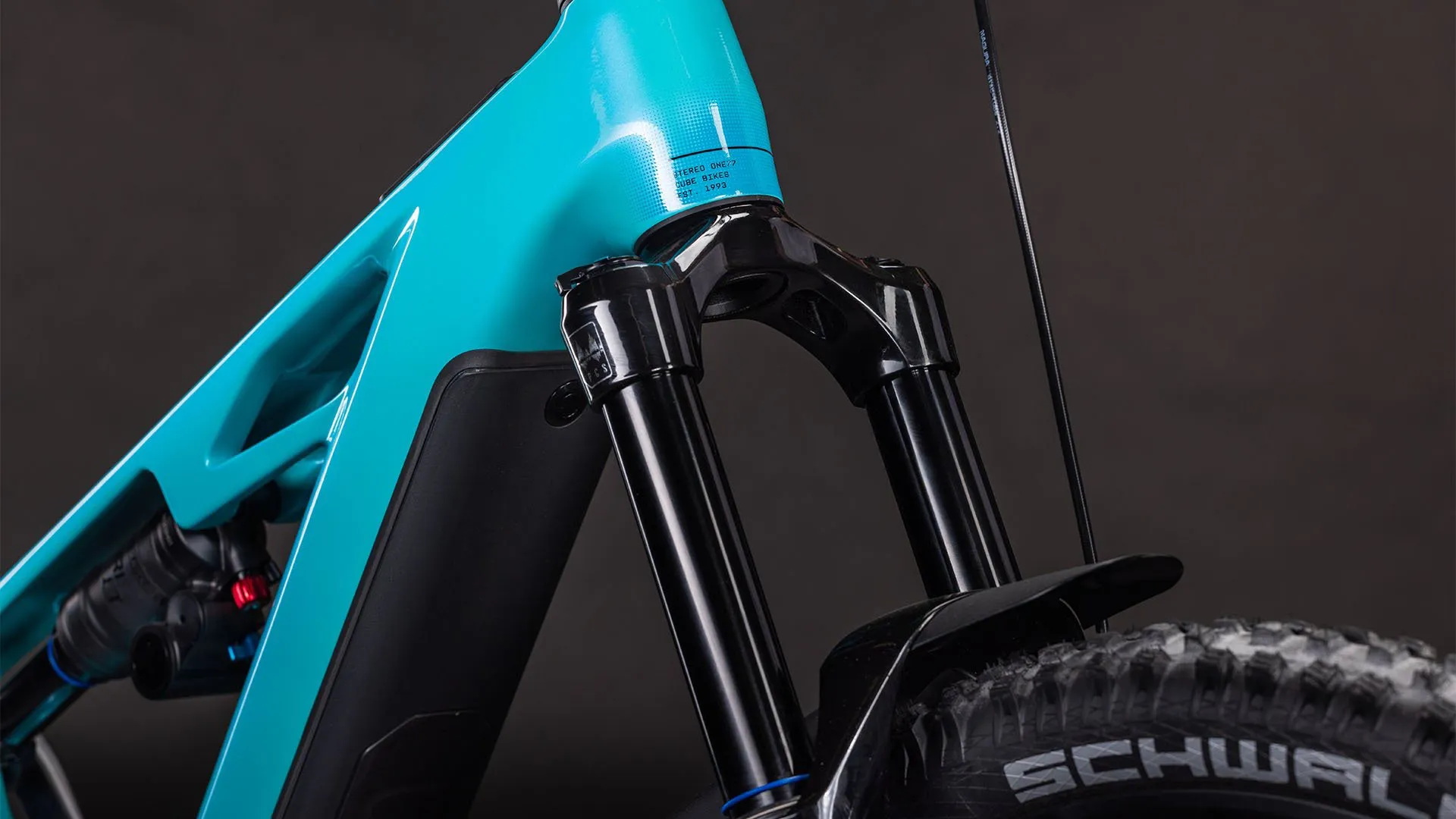

    SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm
  • Rear Shock

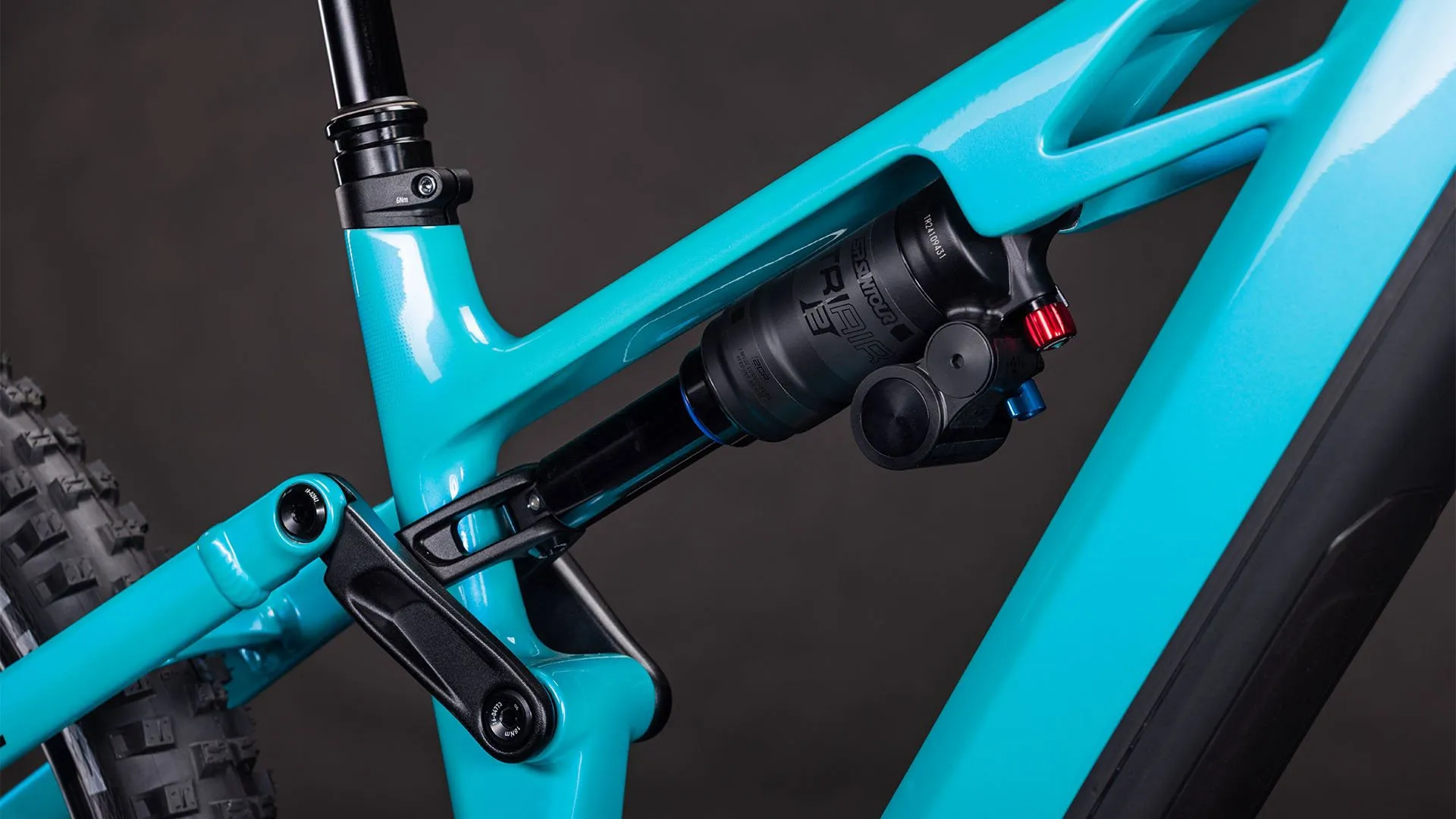

    SR Suntour TRIAir 2CR 230x65mm
  • eSystem
  • Motor
    Bosch Drive Unit Performance Line CX max. 100Nm
  • Controller
    Bosch System Control, incl. Mini Remote
  • Display
    N/A
  • Battery Type
    Bosch PowerTube 800
  • Battery Integration
    Internal
  • Connectivity
    N/A
  • Charger
    Bosch 2A
  • Drivetrain and Brakes
  • Brake System
    Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
  • Rear Derailleur
    Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
  • Front Derailleur
    N/A
  • Shifters
    Shimano Deore SL-M6100, Rapidfire-Plus
  • Bottom Bracket
    Integrated into motor
  • Crankset

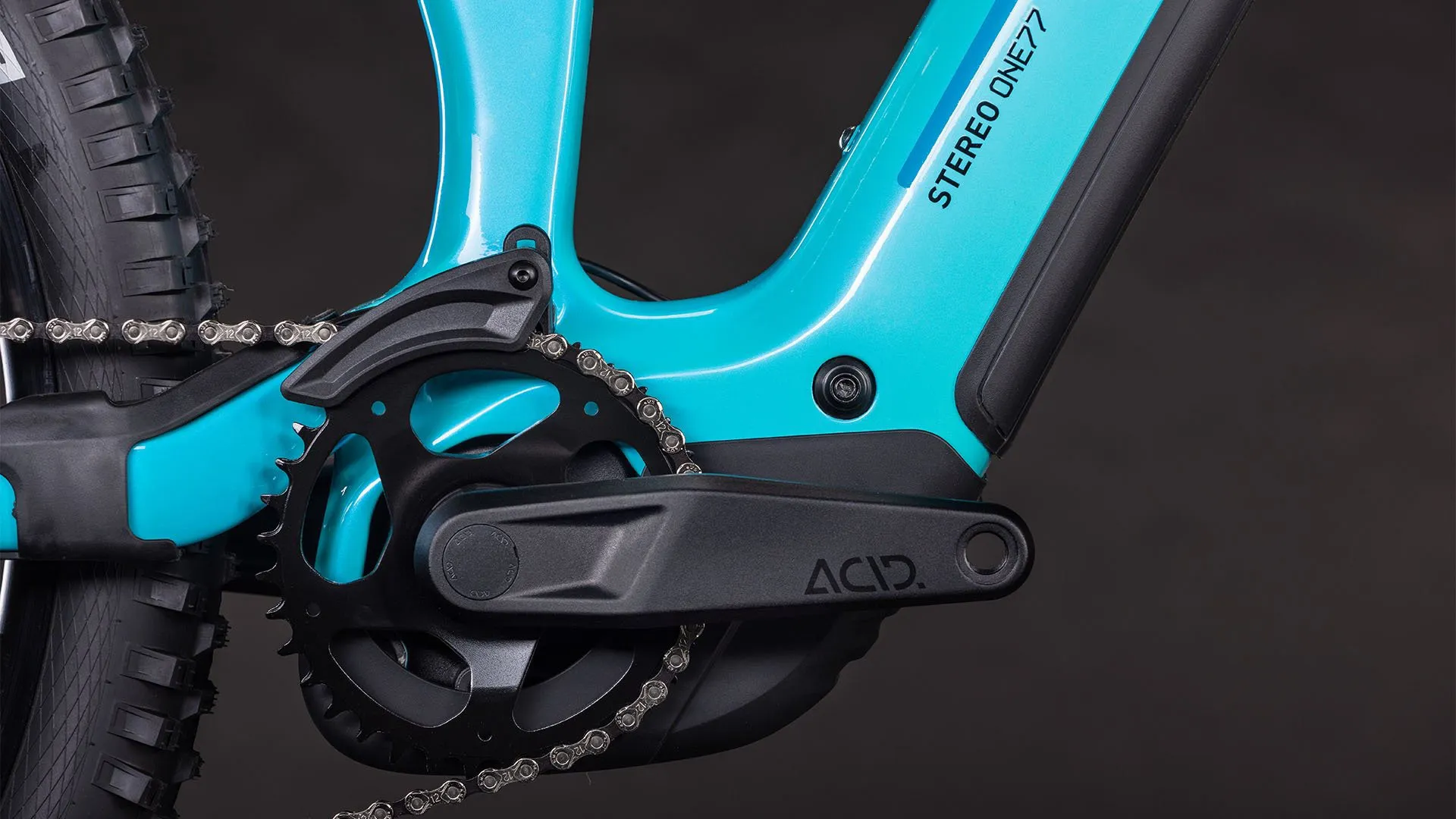

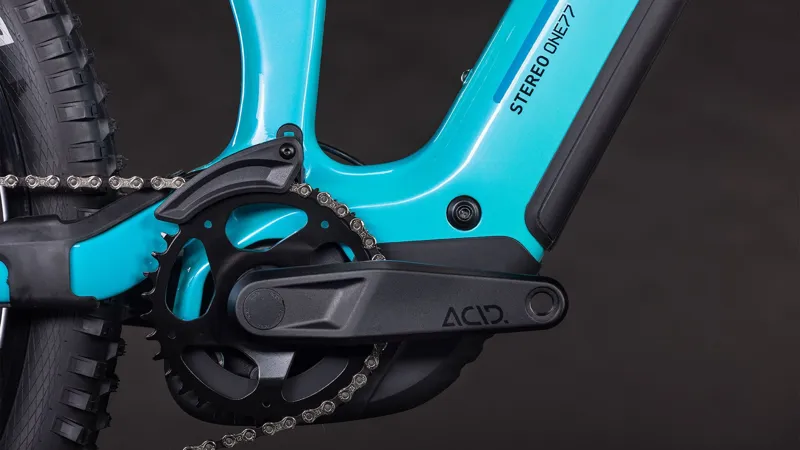

    ACID MTB Hybrid Pro, 36T
  • Cassette
    Shimano Deore CS-M6100, 10-51T
  • Chain
    KMC e12
  • Cockpit
  • Handlebar
    CUBE Rise Trail Bar 35
  • Stem
    CUBE Performance Stem E-MTB 35, FPI-Link
  • Grips
    ACID Disrupt, Soft Compound
  • Headset
    ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
  • Wheels
  • Wheelset
    ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • Front Tyre
    Schwalbe Magic Mary, Performance, 2.4
  • Rear Tyre
    Schwalbe Big Betty, Performance, 2.4
  • Max Tyre Clearance
    N/A
  • Finishing Kit
    N/A
  • Seatpost
    CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
  • Saddle
    ACID Venec EMTB Plus 145
  • Pedals
    ACID PP MTB
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Extras
    Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Frame Geometry


SMLXL
ASeat Tube Length (mm)370405420480
BSeat Tube Angle76.7° / 76.5°76.7° / 76.5°76.7° / 76.5°76.7° / 76.5°
CTop Tube Length (mm)572 / 573597 / 598625 / 626659 / 661
DHead Tube Length (mm)103103115130
EHead Tube Angle63.8° / 64.4°63.8° / 64.4°63.8° / 64.4°63.8° / 64.4°
FFork Rake (mm)
GTrail (mm)
HWheel Base (mm)1213 / 12061238 / 12311269 / 12611305 / 1297
IChain Stay Length (mm)443443443443
JBottom Bracket Drop (mm)13131313
KStack (mm)635 / 637635 / 637645 / 648659 / 661
LReach (mm)427 / 425452 / 450477 / 475506 / 505
MStand Over Height (mm)758754753752
NHandlebar Width (mm)780780780780
OStem Length (mm)50505050
PCrank Length (mm)165165165165
QWheel Size27.5" / 29"27.5" / 29"27.5" / 29"27.5" / 29"
Professional Opinion
  • Fully Integrated Battery
    The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
  • Advanced Internal Cable Routing
    Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
  • Modular Battery System
    In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.
  • Adjustable Headset Angle
    When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
  • Agile Trail Geometry
    Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.
  • High Performance Carbon
    HPC – high performance carbon – enables us to build lighter, stronger and stiffer frames out of this incredibly versatile material. Using a combination of careful frame design and variable lay-up thickness, we're able to fine-tune the performance of each frame to precisely meet our requirements for weight, stiffness, strength and durability.
  • X-Connect
    X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.
