This is what you get when you cross CUBE's carbon know-how with Fox Performance suspension, Sram GX Eagle Transmission 1x12 and Bosch's all-new SX drive system.
This is what you get when you cross CUBE's carbon know-how with Fox Performance suspension, Sram GX Eagle Transmission 1x12 and Bosch's all-new SX drive system.
Cube

2024 Cube AMS Hybrid One44 C:68 TM - Electric Mountain Bike - Swamp Grey / Purple Reflex

£5,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2024 Cube AMS Hybrid One44 C:68 TM - Electric Mountain Bike - Swamp Grey / Purple Reflex

Season:2024

Brand:Cube

Code:804200

If you've ever wanted that little extra boost up a climb without worrying about the weight, the AMS Hybrid ONE44 C:68X TM is the bike you've been waiting for. You might guess from its elegantly sculpted frame – made from our premium C:68X® carbon – that it's something special, and you'd be right. Bosch's new SX drive combines with a 400Wh battery, built-in system controller and bar-mounted Mini Remote to deliver up to 55Nm of additional torque via Sram's GX Eagle Transmission 1x12 electronic gears.

A Fox 36 Performance fork and Float X Performance shock deliver progressive mountain-flattening travel. Newmen Evolution SL A.30 wheels are fitted with Schwalbe Magic Mary and Nobby Nic 2.4in tyres, and held in check with a pair of Magura's powerful MT7 hydraulic disc brakes. And if you thought all this adds up to blistering pace, you'd be absolutely right...

Building an ultralight Bosch-powered full-suspension bike isn't easy. That's why the AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the new, lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack.

Internal cable routing complements the frame's sleek silhouette and there's a lightweight direct mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

Technical Information
  • Frame
  • Sizes
    S (370mm), M (405mm), L (420mm), XL (470mm)
  • Colours
    Swamp Grey / Purple Reflex
  • Frame

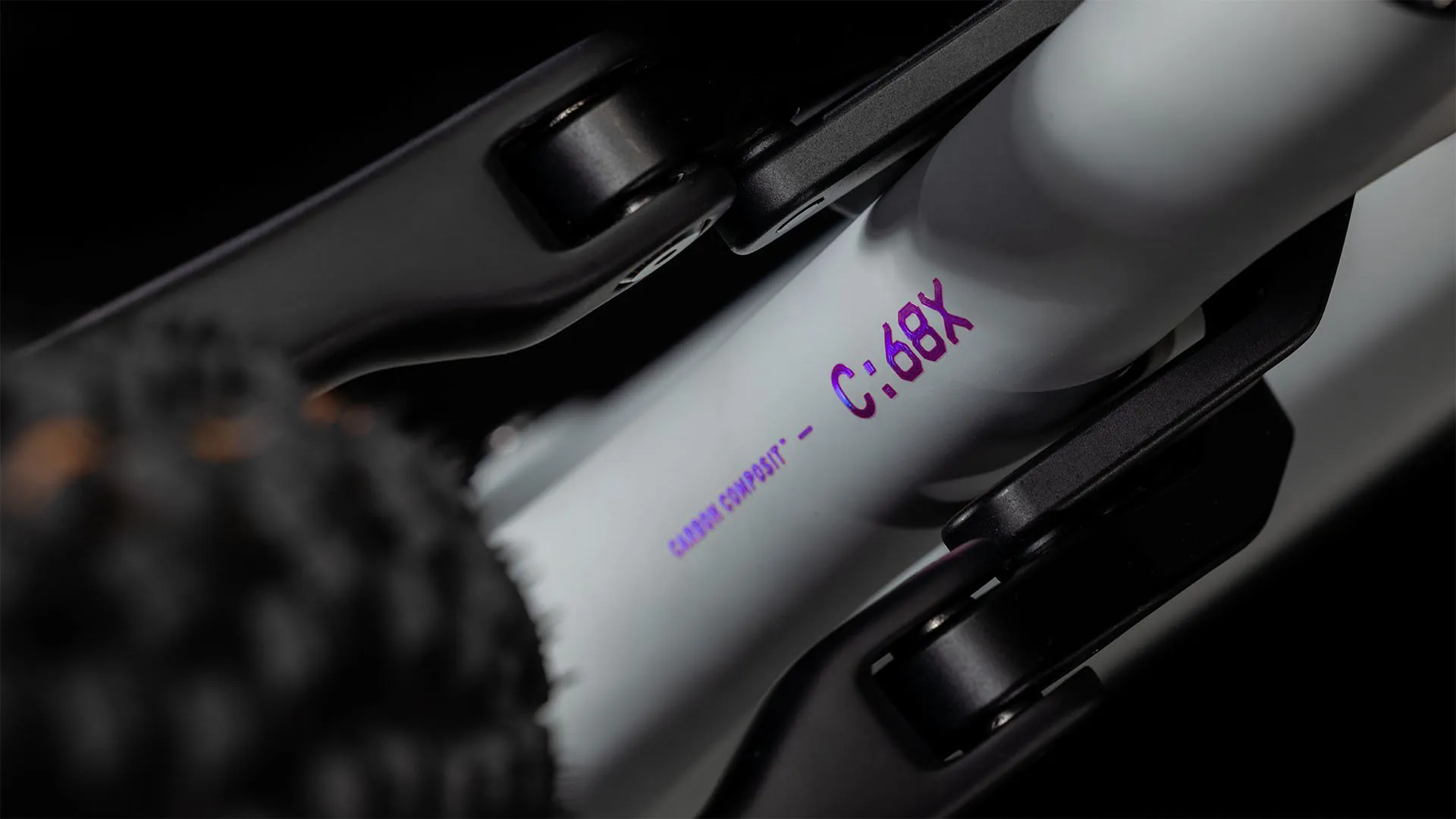

    C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
  • Forks and Shocks
  • Fork
    Fox 36 Float Performance GRIP, 3-Position w/ Micro Adjust, Tapered, 15x110mm, 140mm
  • Rear Shock

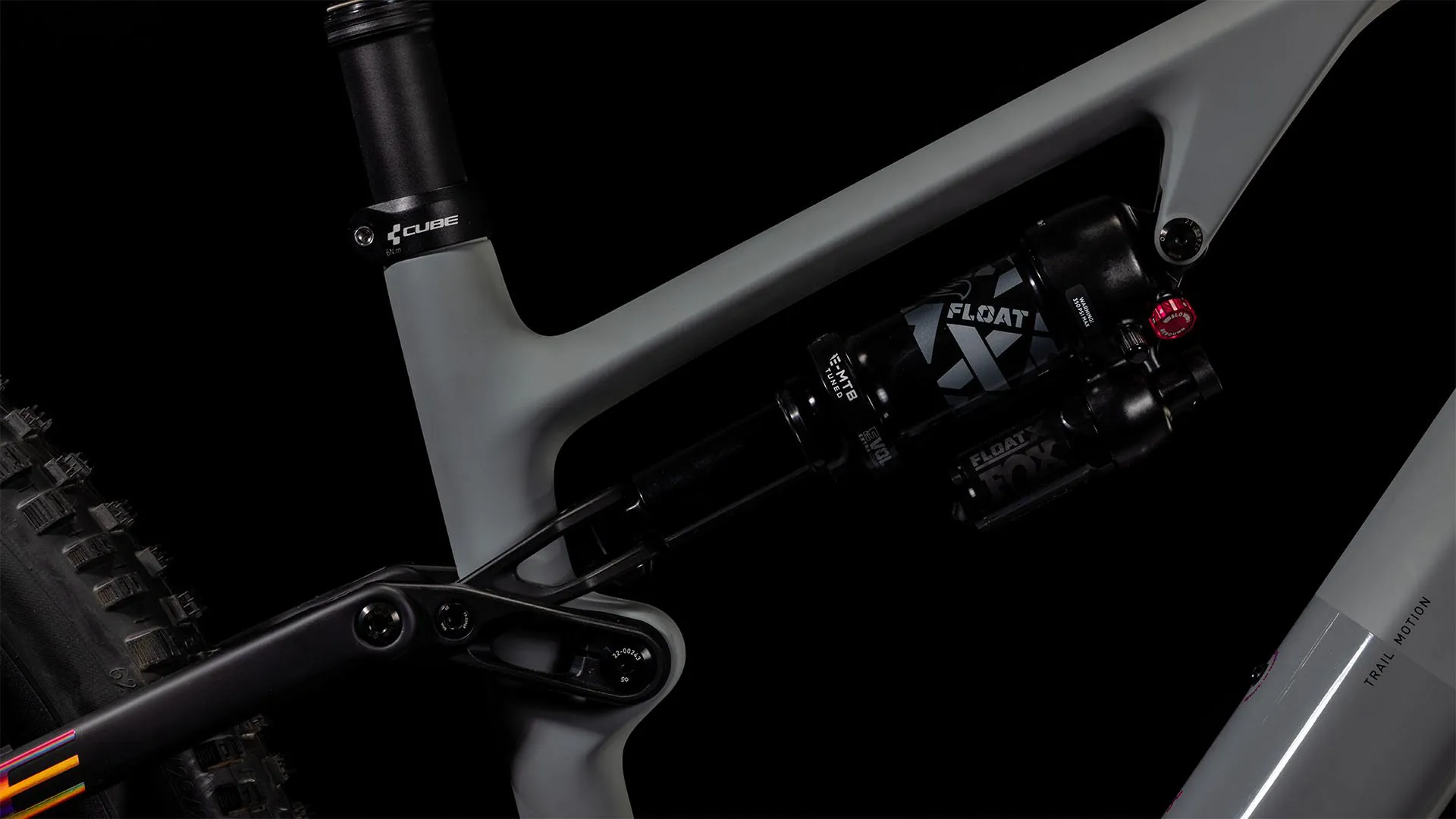

    Fox Float X Performance, 210x55mm, Adjustable LSR w/ 2-Pos- Lever
  • eSystem
  • Motor
    Bosch Performance SX (55nm)
  • Controller
    Bosch System Control inc Mini Remote
  • Display
  • Battery Type
    Bosch CompactTube 400
  • Battery Integration
    Internal
  • Conectivity
    N/A
  • Charger
    Bosch 4A
  • Drivetrain and Brakes
  • Brake System
    Magura MT7, Hydr. Disc Brake (203/180)
  • Rear Derailleur
    SRAM GX Eagle AXS™ Transmission, 12-Speed
  • Front Derailleur
    N/A
  • Shifters
    SRAM AXS™ Pod Ultimate Controller
  • Bottom Bracket
  • Crankset

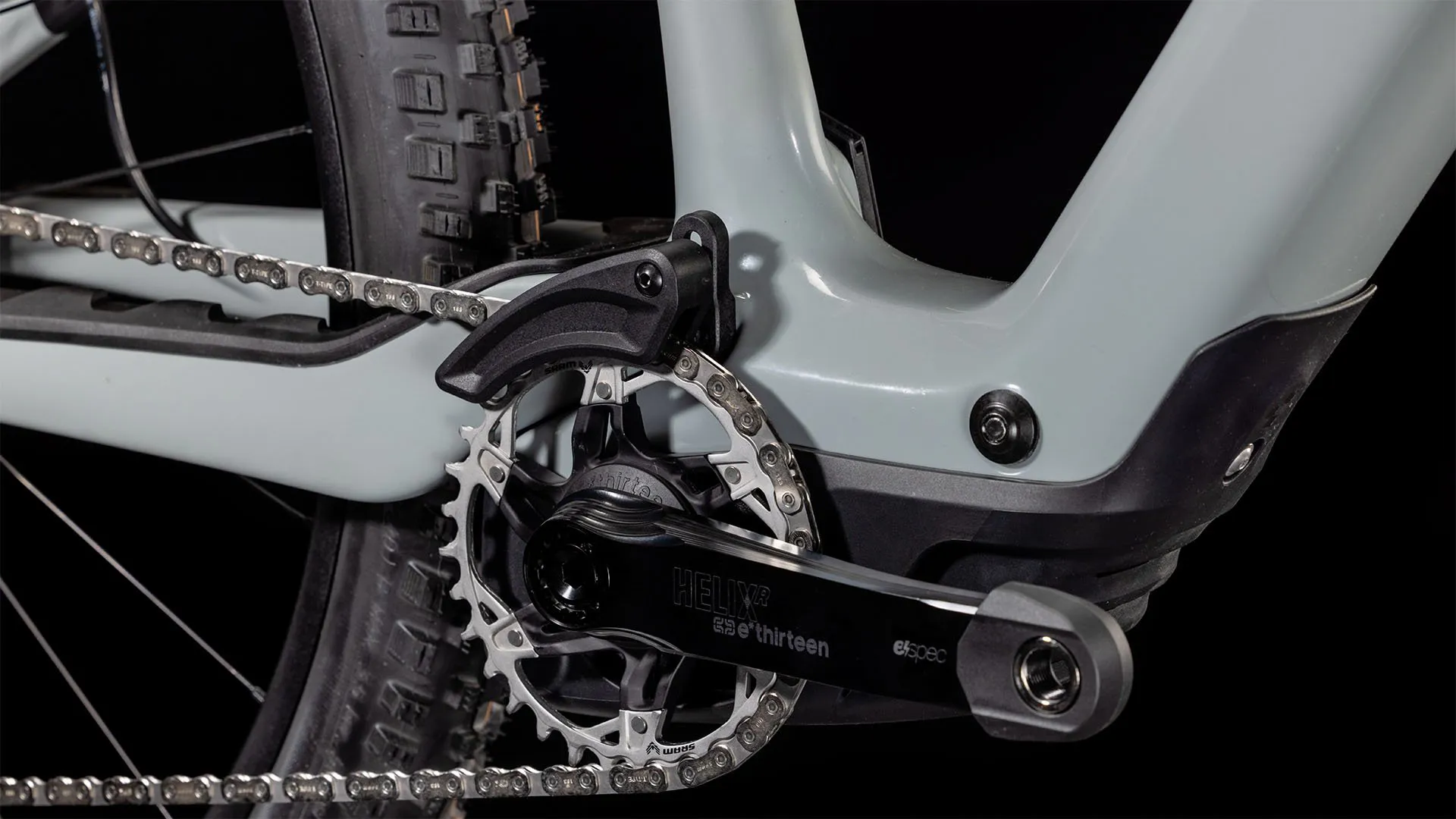

    e*thirteen Helix Race Alloy e*spec Crank, 32T
  • Cassette
    SRAM XS-1275, 10-52T
  • Chain
    SRAM GX Eagle™ Transmission
  • Chain Guide
    Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
  • Cockpit
  • Handlebar
    Newmen Evolution SL 318.25, 780mm
  • Stem
    Newmen Evolution SL 318.4, 31.8mm
  • Grips
    ACID Disrupt, Soft Compound
  • Headset
    ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
  • Wheels
  • Wheelset
    Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • Front Tyre
    Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
  • Rear Tyre
    Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
  • Finishing Kit
  • Seatpost
    CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
  • Saddle
    Natural Fit Nuance SL
  • Pedals
    No Pedals Included
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
Sizing Information
Frame Geometry


SMLXL
ASeat Tube Length (mm)370405420470
BSeat Tube Angle76.2° / 76°76.2° / 76°76.2° / 76°76.2° / 76°
CTop Tube Length (mm)575 / 577598 / 599626 / 627658 / 660
DHead Tube Length (mm)102112122142
EHead Tube Angle65.4° / 66°65.4° / 66°65.4° / 66°65.4° / 66°
FFork Rake (mm)
GTrail (mm)
HWheel Base (mm)1193 / 11861217 / 12101246 / 12391282 / 1274
IChain Stay Length (mm)450450450450
JBottom Bracket Drop (mm)-34 / -32-34 / -32-33 / -32-33 / -32
KStack (mm)615 / 617624 / 626633 / 635652 / 654
LReach (mm)429 / 428449 / 448474 / 473501 / 500
MStand Over Height (mm)
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size29"29"29"29"
