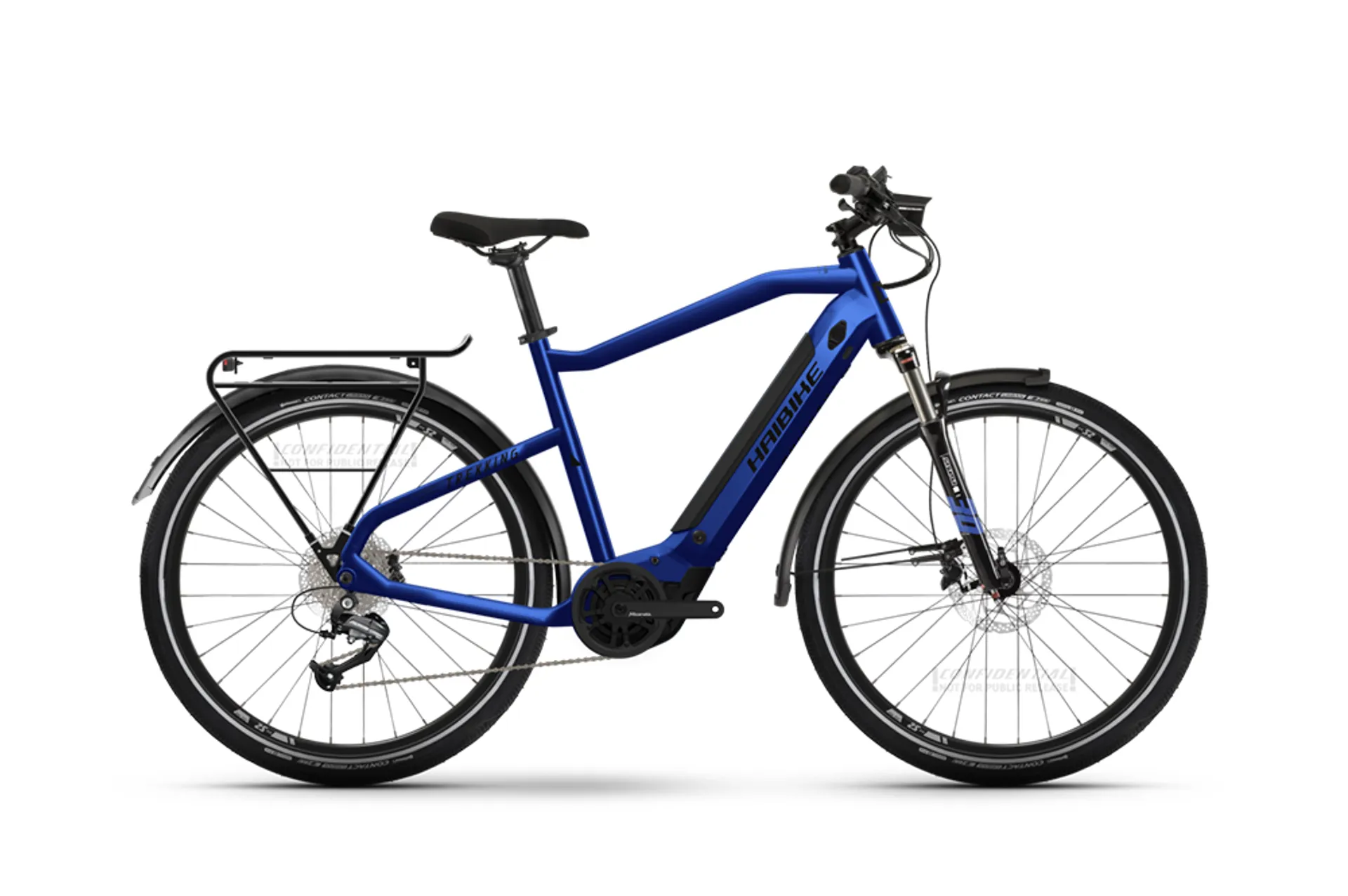

2022 Haibike Trekking 4 - Electric Hybrid Bike - Electric Bike

Season:2022

Brand:Haibike

Code:30159BLU

The Trekking 4 HIGH has everything you need for cruising in the city, or for extended rides in the countryside. The Yamaha PW-TE motor allows you to accelerate smoothly and with power, the integrated 500Wh battery providing ample reserves. Equipped with a luggage rack, lights, mudguards and a kickstand, this eBike is truly ready for everyday use and compliant with German traffic licensing regulations. Your entry into the eTrekking bike world!
Technical Information
  • ENGINE

    Yamaha, PW-TE System, 250 Wh, 60 Nm, 25 km/h

  • DISPLAY

    Yamaha, Side Switch, 1.7" LCD, 7 functions

  • BATTERY

    Yamaha, InTube, 500 Wh

  • FRAME FAMILY

    Haibike, Trekking Yamaha i500/i400, Aluminium 6061

  • FORK

    SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm

  • CRANK ARM

    Haibike, Forged, Aluminium

  • BRAKE (FRONT)

    Alhonga, HT474, Hydraulic disc brakes

  • BRAKE (REAR)

    Alhonga, HT474, Hydraulic disc brakes

  • TUBE

    Dunlop valve

  • RIM

    Schürmann, Yak25, With Eyelets, Double Wall, Aluminium

  • CLAMPING RING

    quick release, Quick release, 34.9 mm

  • REAR DERAILLEUR

    Shimano, Altus M2000

  • SHIFT LEVER

    Shimano, Alivio M3100, Trigger switch

  • BOTTOM BRACKET

    integrated in the motor

  • SPROCKET

    Shimano, HG200, 11 - 36 teeth

  • CHAIN

    KMC, e9S

  • CHAINRING

    Steel, 38 teeth

  • BRAKE LEVER

    Alhonga, HT474, Aluminium

  • BRAKE DISC (FRONT)

    Alhonga, DXR1806, 180 mm

  • BRAKE DISC (REAR)

    Alhonga, DXR1806, 180 mm

  • TYRE

    Continental, Contact Urban, 55-584, 27.5 x 2.2 inch

  • FRONT WHEEL HUB

    Haibike, TheHub ++, 6-bolt standard

  • REAR WHEEL HUB

    Haibike, TheHub ++, 6-bolt standard

  • SPOKES

    Sapim, Leader

  • HANDLEBAR

    XLC, Topflat, 720 mm

  • GRIPS

    XLC, Comfort bo3

  • STEM

    XLC, Alu, A-head

  • HEADSET

    Feimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminium

  • SADDLE

    Selle Royal, Wave

  • SEAT POST

    XLC, Aluminium, Patent, 31.6 mm

  • PEDALS

    VP, E461, Aluminium, with Reflector

  • HEADLIGHT

    Trelock, Bike - i Veo LS230, 20 lm

  • REAR LIGHT

    AXA, Juno Ebike

  • DYNAMO

    via system battery

  • CARRIER

    Massload, Systemgepäckträger

  • FENDERS

    Eurofender, Tempo, ChromoplasticsSKS, Chromoplastics

  • STAND

    Ursus, Mooi, Rear stand

  • PERMITTED TOTAL WEIGHT

    130.0 kg
