The 2022 Haibike AllMtn CF 12 is a top-equipped e-Fully for performance-oriented riders who are looking for a versatile bike that can climb uphill and is simply fun to ride downhill.
The 2022 Haibike AllMtn CF 12 is a top-equipped e-Fully for performance-oriented riders who are looking for a versatile bike that can climb uphill and is simply fun to ride downhill.
Haibike

2022 Haibike Allmtn CF 12 i600 - Electric Mountain Bike

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

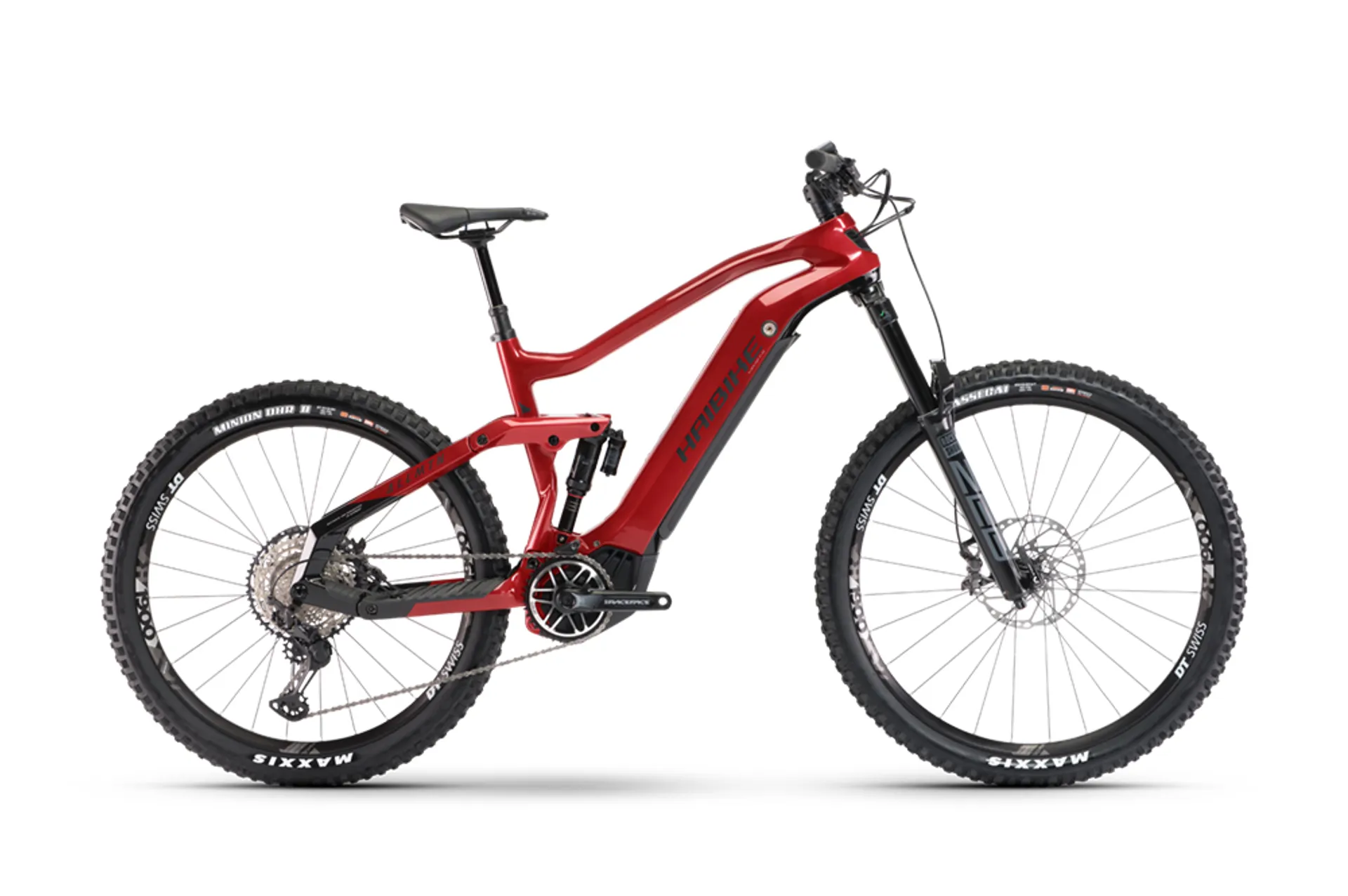

2022 Haibike Allmtn CF 12 i600 - Electric Mountain Bike

Season:2022

Brand:Haibike

Code:30138RED

The 2022 Haibike AllMtn CF 12 is a top-equipped e-Fully for performance-oriented riders who are looking for a versatile bike that can climb uphill and is simply fun to ride downhill. The sporty Yamaha PW-X2 motor ensures a natural riding feel and offers enough range for long rides with its 600Wh battery. Equipped with 160mm suspension travel, high-quality Shimano Deore XT gear and brake components and mixed wheel sizes, you have everything you need to master challenging trails without breaking a sweat.
Technical Information
    • ENGINE

      Yamaha, PW-X2, 250 Wh, 80 Nm, 25 km/h

    • DISPLAY

      Yamaha, Side Switch, 1.7" LCD, 7 functions

    • BATTERY

      Yamaha, 600 Wh

    • FRAME FAMILY

      Haibike, XDURO AM i600, Carbon

    • FORK

      RockShox, ZEB Charger R, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

    • DAMPER

      RockShox, Super Deluxe Select, Air, Trunnion Mount

    • CRANK ARM

      Raceface, Aeffect, Carbon

    • BRAKE (FRONT)

      Shimano, Deore XT M8120

    • BRAKE (REAR)

      Shimano, Deore XT M8120

    • TUBE

      Presta valve

    • CLAMPING RING

      Internal hexagon, 34.9 mm

    • REAR DERAILLEUR

      Shimano, Deore XT M8100 Shadow Plus

    • SHIFT LEVER

      Shimano, Deore XT M8100, Trigger switch

    • BOTTOM BRACKET

      integrated in the motor

    • SPROCKET

      Shimano, SLX M7100, 10 - 51 teeth

    • CHAIN

      Shimano, SLX M7100

    • CHAINRING

      Haibike Components, Aluminium, 38 teeth

    • CHAIN GUIDE

      Nylon directmount

    • BRAKE LEVER

      Shimano, Deore XT M8100, Aluminium

    • BRAKE DISC (FRONT)

      Shimano, RT-MT800LE, 203 mm

    • BRAKE DISC (REAR)

      Shimano, RT-EM810, 203 mm

    • TYRE

      Maxxis, Assegai MaxxTerra/Exo+/TR, 63-622, 29 x 2.5 inch

    • WHEEL SET

      DT Swiss, H1900

    • HANDLEBAR

      Haibike Components, TheBar +++ Gravity, 780 mm

    • GRIPS

      Haibike, MTB grips

    • STEM

      Haibike Components, TheStem 2, A-head, 31.8 mm

    • HEADSET

      Acros, BlockLock, Aluminium

    • SADDLE

      Prologo, Proxim W400

    • SEAT POST

      Dropper-Post Remote, Aluminium, Telescope, 31.6 mm

    • PEDALS

      Freeridepedal, Aluminium, with Reflector

    • PERMITTED TOTAL WEIGHT

      120.0 kg

TYRE (REAR)

Maxxis, Minion DHR II, 71-584, 27.5 x 2.8 inch
