The entry-level AllMtn model opens up an enormous range of possibilities.
The entry-level AllMtn model opens up an enormous range of possibilities.
Haibike

2021 Haibike AllMtn 1 630Wh Electric Mountain Bike in Black

£2,999.00 £3,949.00 24% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

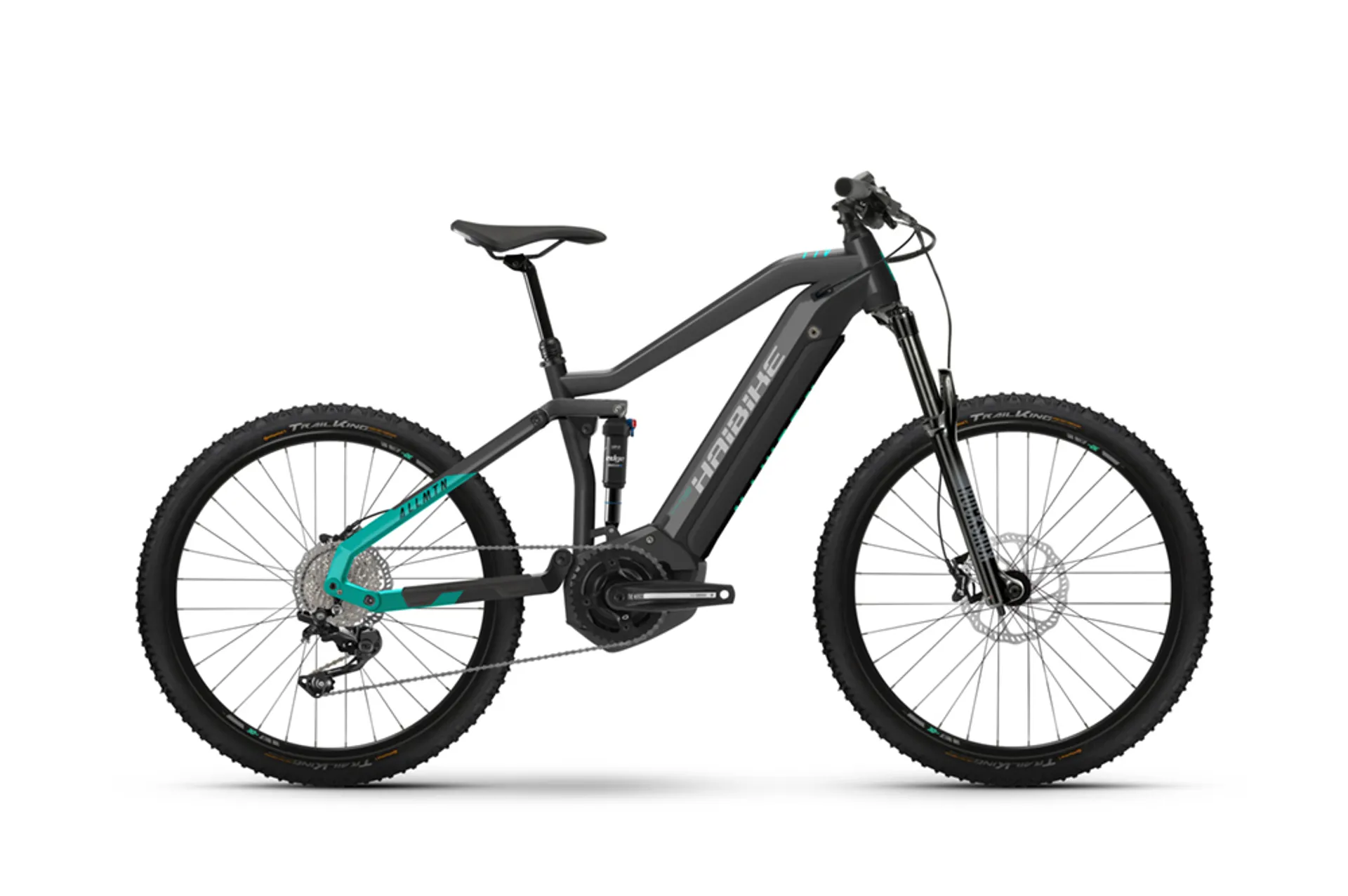

2021 Haibike AllMtn 1 630Wh Electric Mountain Bike in Black

Season:2021

Brand:Haibike

Code:45150142

The entry-level AllMtn model opens up an enormous range of possibilities.

With 160mm travel and a wheelsize mix of 29" at the front and 27.5" at the rear, you and the AllMtn 1 will manoeuvre over any terrain with ease and enjoy first-class performance even on challenging descents. The powerful Yamaha PW-ST motor powers you up every hill with a smooth, natural feel to the ride.

Features:
  • Drive unit - Yamaha PW-ST System, 70Nm, 25km/h
  • Battery - InTube 630Wh
  • Fork - RockShox 35 Silver, Travel: 160mm
  • Mixed wheel sizes - 27.5" / 29"
Technical Information
  • ENGINE
    Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
  • DISPLAY
    Yamaha, Side Switch, 1.7" LCD, 7 functions
  • BATTERY
    InTube, 630 Wh
  • FRAME FAMILY
    Haibike, AllMtn Yamaha i630, Aluminium
  • FORK
    RockShox, 35 Silver, Air, Travel = 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
  • DAMPER
    SR Suntour, Edge LO-R8, Air, Trunnion Mount M8x25
  • CRANK ARM
    Haibike Components, Aluminium
  • BRAKE (FRONT)
    Tektro, Orion M745 , 203 mm, 4-piston disc brake
  • BRAKE (REAR)
    Tektro, Orion M745 , 180 mm, 4-piston disc brake
  • TUBE
    Presta valve
  • RIM
    Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
  • CLAMPING RING
    Internal hexagon, 34.9 mm
  • REAR DERAILLEUR
    Shimano, Deore M5100
  • SHIFT LEVER
    Shimano, Deore M5100, Trigger switch, 11 Speed
  • BOTTOM BRACKET
    Integrated in the motor
  • SPROCKET
    Shimano, M5100, 11 - 51 teeth
  • CHAIN
    KMC, X11e
  • CHAINRING
    Steel, 38 teeth
  • BRAKE LEVER
    Tektro, Orion M745, Aluminium
  • BRAKE DISC (FRONT)
    Tektro, TR203
  • BRAKE DISC (REAR)
    Tektro, TR180
  • TYRE
    Continental, Trail King, 60-622, 29" x 2.4"
  • FRONT WHEEL HUB
    Haibike Components, 6-bolt standard
  • REAR WHEEL HUB
    Haibike Components, 2x148, 6-bolt standard
  • SPOKES
    Sapim, Leader, Black
  • HANDLEBAR
    Haibike Components, Gravity , 780 mm
  • GRIPS
    Haibike, MTB grips
  • STEM
    Haibike Components, A-head, Bar bore: 31.8 mm, 7.0 °
  • HEADSET
    Feimin, A-Head Tapered, Ball bearing
  • SADDLE
    Selle Royal Vivo 1216HRN
  • SEAT POST
    Haibike Components, Aluminium, 31.6 mm
  • PEDALS
    Freeridepedal , Aluminium, with Reflector,
  • PERMITTED TOTAL WEIGHT
    120.0 kg
  • TYRE (REAR)
    Continental, Trail King, 65-584, 27.5" x 2.6"
  • RIM (REAR)
    Rodi, Tryp 35, Aluminium, with eyelets, hollow rim
