Arcus M/L 2020
Arcus M/L 2020

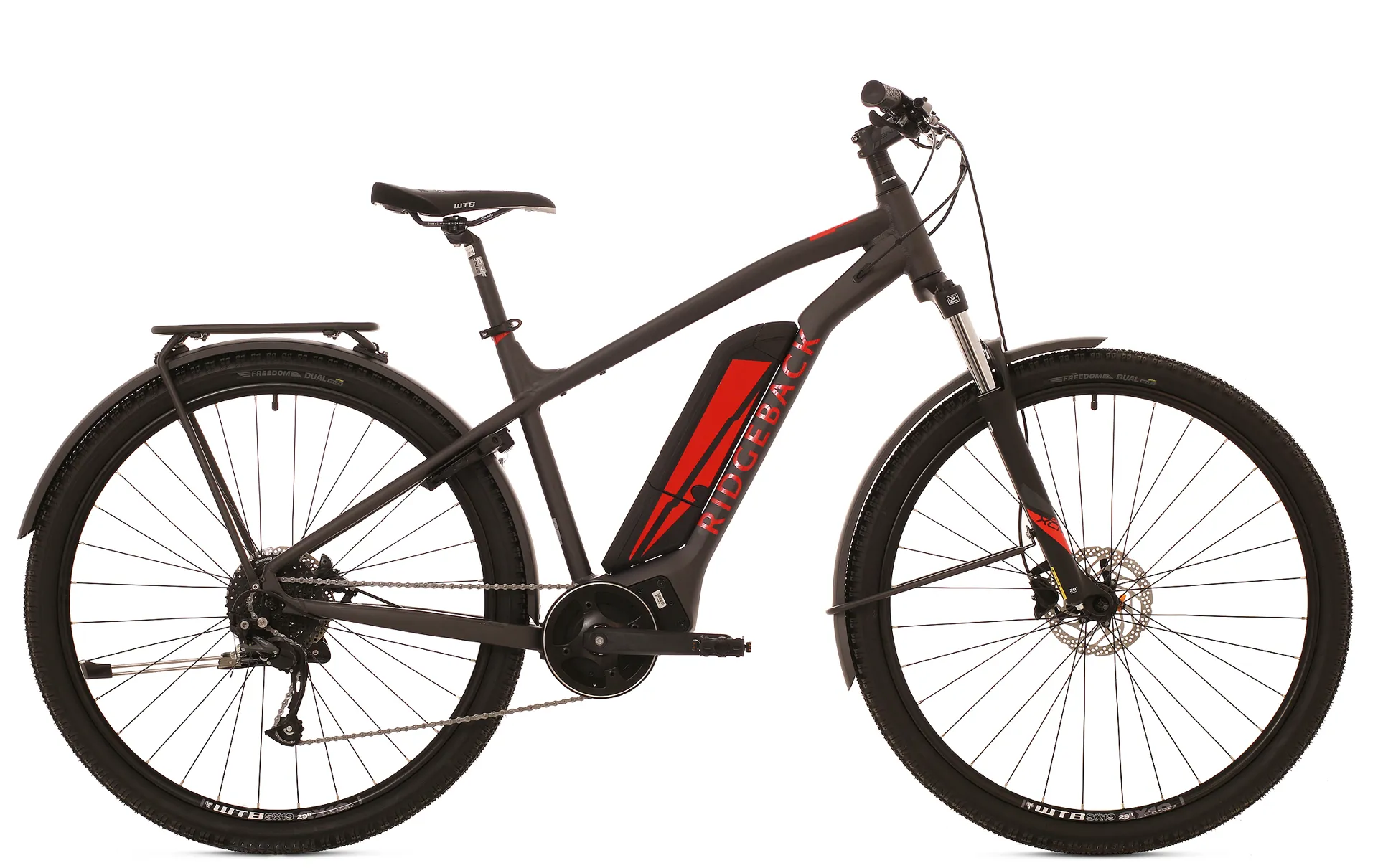

2020 Ridgeback Arcus Unisex E-Bike in Red

Click & Collect for Free

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!


With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined

2020 Ridgeback Arcus Unisex E-Bike in Red Information

Brand : Ridgeback

Code : VARRB2035

  • We have designed and built the arcus to be the perfect do it all e-bike
  • using the sport drive e-bike motor system which is a lightweight fully integrated motor offering smooth power delivery
  • the arcus is more than ready to be taken down the roads slightly less travelled
  • equipped with full length aluminium mudguards and an integrated rear pannier rack the arcus is then finish with Shimano high quality altus m2000 shifter and rear mech and powerful Shimano mt200 hydraulic disc brakes the arcus is ready for anything from the urban streets of the city to the towpaths and bridal ways of the countryside
Technical Information
Frame: 6061 heat treated aluminium
Fork: Suntour XCM 100mm
Headset: FSA TH-874-1 1 1/8"
Stem: Alloy 70mm +9deg
Bars: Alloy 12mm 9deg 31.8mm 720mm
Front Brake: Shimano BR-MT200 Hydraulic Disc Brakes
Rear Brake: Shimano BR-MT200 Hydraulic Disc Brakes
Brake Lever: Shimano BL-MT200
Rear Mech: Shimano Alivio RD-M4000-SGS 9 Speed
Shifters: Shimano Alivio SL-M4000 9 Speed
Speed: 9
Rims: WTB SX19 32H
Front Hub: Shimano HB-M6010 32H
Rear Hub: Shimano FH-TX505 32H
Spokes: Steel 14g
Front Tyre: Freedom Dual 29x2.10"
Rear Tyre: Freedom Dual 29x2.10"
Saddle: Justek Steel rail
Chainset: SportDrive 38T 175mm
Bottom Bracket: SportDrive MD250S
Chain: KMC X9E
Cassette: Shimano CS-HG200-9 11-36T
Pedals: Resin Metro
Motor: Sport Drive E-Bike Motor system
